MSI PRO Z890-S WIFI / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7E54-001R
MSI PRO Z890-S WIFI / Motherboard / ATX / LGA1851 Socket / Z890 Chipset / USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7E54-001R
€316.16 inc. VAT
7E54-001R
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Versatile connectivity options
The motherboard provides numerous interface types, including 6 USB 3.2 Gen 1 ports, USB-C 3.2 Gen 2x2, HDMI, and DisplayPort, allowing connection of several devices simultaneously for a seamless experience. - Enhanced audio experience
Equipped with high definition audio supported by the Realtek ALC897 codec, the MSI PRO Z890-S WIFI motherboard delivers sound quality complemented by MSI Audio Boost technology for an auditory experience. - Efficient power design
Featuring a 12+1+1+1 Duet Rail Power System design, this motherboard enables a stable supply of power, ensuring reliable performance during intensive computing tasks. - Advanced cooling solutions
The Extended Heatsink Design and MSI M.2 Shield FROZR together provide cooling, preventing thermal throttling and maintaining optimal performance under heavy loads. - Flexible storage support
Support for RAID configurations including RAID 0, 1, 10, and 5 allows for versatile storage setups, while PCIe 5.0 slots and M.2 sockets accommodate high-speed storage solutions.
Special Features
- Supports Intel Core Ultra processors with LGA1851 socket
- Four DIMM slots for DDR5 SDRAM with speeds up to 4300 MHz
- Multiple connectivity options including USB-C 3.2 Gen 2x2 and HDMI
- Incorporates MSI Audio Boost for high definition audio output
- Robust cooling features with Extended Heatsink Design
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z890 |
| Processor Socket | LGA1851 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Intel Core Ultra processors (Series 2)) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2400 MHz,, 2500 MHz, 2600 MHz, 2700 MHz, 2800 MHz, 2900 MHz, 3000 MHz, 3100 MHz, 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3700 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.), 4100 Mhz (O.C), 4200 MHz (O.C.), 4300 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125D |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 3.0 x1 2 x PCIe 4.0 x16 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 PCIe 5.0 -connectors: 1 x M.2 |

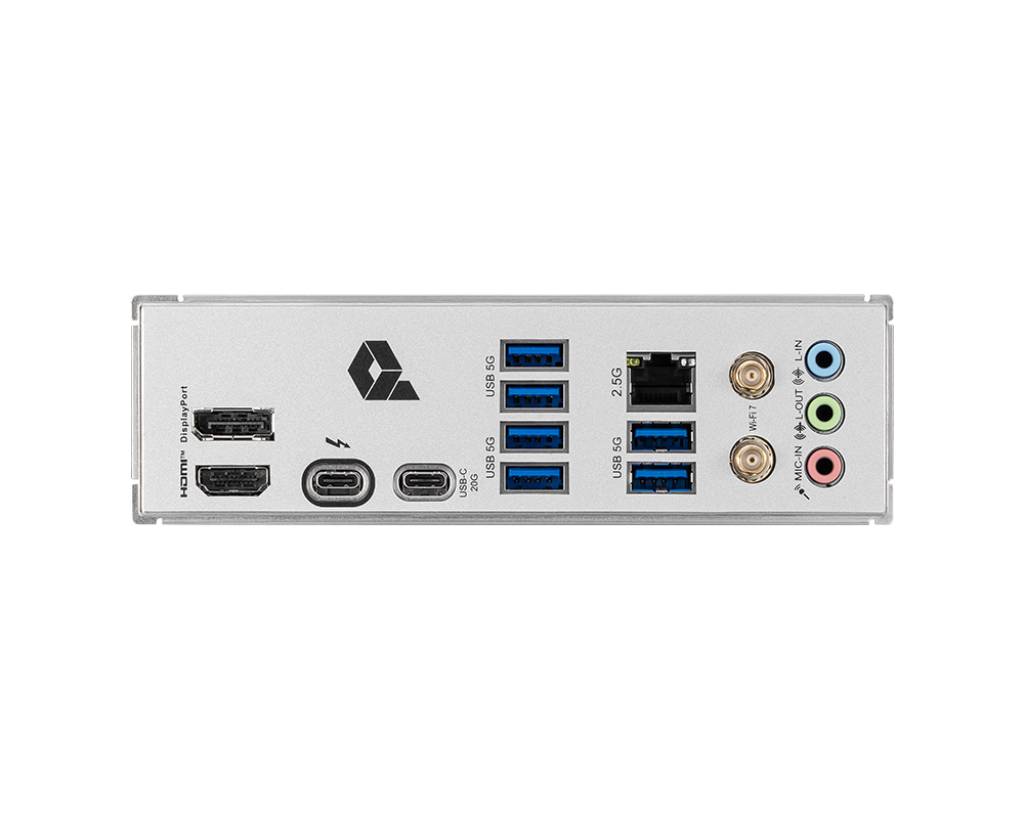

| Interfaces | 1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x aerial 6 x USB 3.2 Gen 1 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x Thunderbolt 4 |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x audio - header 1 x USB 3.2 Gen 2x2 - header Thunderbolt 4 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Features | Features |
| BIOS Type | AMI |
| Hardware Features | 12+1+1+1 DRPS (Duet Rail Power System) Power Design, MSI Core Boost, MSI Memory Boost, 6 Layer PCB, Extended Heatsink Design, M.2 Shield FROZR, EZ M.2 Clip II, EZ PCie Clip II, MSI Audio Boost, Solid Pin Power Connectors, overcurrent protection, Surface Mount Technology (SMT), MSI Mystic Light |
| Miscellaneous | Miscellaneous |
| Included Accessories | 2 x Wi-Fi aerial, 3 x EZ M.2 clip 2, EZ M.2 clip 2 remover |
| Cables Included | 2 x Serial ATA cable |
| Width | 30.48 cm |
| Depth | 24.384 cm |
Features - MSI - 7E54-001R
More Details
Product Code
04:494332
EAN Code
4711377269995
