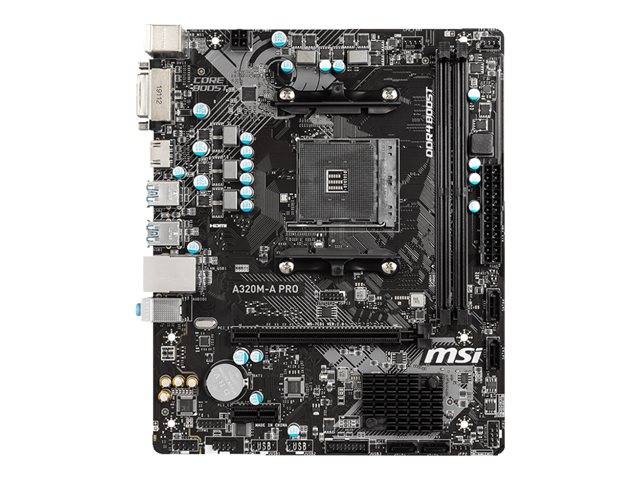

MSI A320M-A PRO / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C51-001R
7C51-001R
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
MSI A320M-A PRO / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C51-001R
Description
MSI motherboards have tons of convenient and smart design features, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
MSI A320M-A PRO / Motherboard | 7C51-001R
Special Features
- Excellent cooling
- Enhanced performance
- Quality components
- Optimized memory layout
Product features
- Excellent cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. - Enhanced performance
MSI motherboards featured all the latest solution for enthusiast gamers and pro consumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. - Quality components
High-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system. - Optimized memory layout
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A320 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Athlon, A series, Ryzen (supports 1st, 2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4) |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2933 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode |
| Max Allocated RAM Size | 2048 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x PS/2 mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| Hardware Features | MSI Audio Boost, Double ESD Protection |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 22.6 cm |
| Depth | 18.7 cm |
Features - MSI - 7C51-001R
More Details
Product Code
04:310302
EAN Code
4719072663889
Manufacturer
MSI
