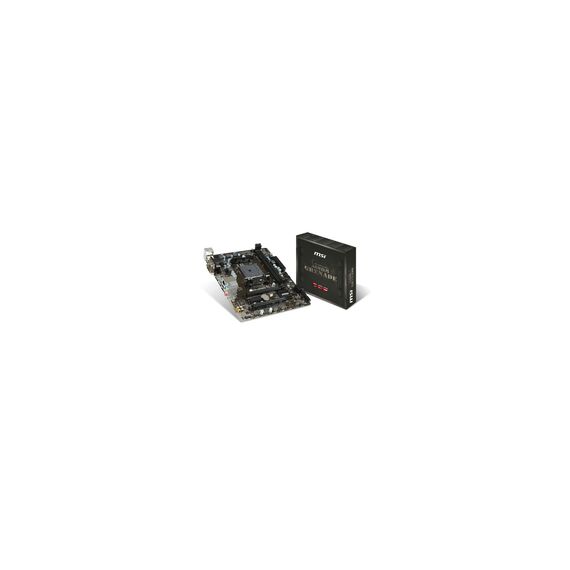

MSI A68HM GRENADE Motherboard micro ATX Socket FM2 / FM2+ AMD A68H USB 3.0 Gigabit LAN onboard graphics (CPU required)

MSI 7891-001R MSI A68HM GRENADE Motherboard micro ATX Socket FM2 / FM2+ AMD A68H USB 3.0 Gigabit LAN onboard graphics (CPU required)

Military Class 4

Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.

Dark Choke

Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

SOLID CAP

With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance ESR, but also work firmly for over-10-year.

Military Class essentials

The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.

Humidity Protection

The latest Gen 4 Fabric PCB helps to against moisture cause by some humid conditions and environments.

EMI Protection

The optimized EMI-proof design helps to keep users safe when during a long-time computer operation.

ESD Protection

Anti-ESD ICs and fuses onboard helps to totally protect your motherboard from electrostatic damage.

HIGH Temperature Protection

Certificated Military Class 4 components help to work stable under some extreme conditions.

CLICK BIOS 4

The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8.1. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.

LIVE UPDATE 6

MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

M-Flash

Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

Backup/Restore Your BIOS to/from Any USB Flash Disk
Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process

USB 3.0

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.

- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices

SATA 6Gb/s

SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.

- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs

USB Safeguard

USB Safeguard can prevent motherboards and USB devices from being damaged by short-circuit and ESD Electro-Static Discharge with Anti-ESD chips built-into the motherboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.

- All MSI motherboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage
- USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply

Winki 3

Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time.

- User friendly & totally free applications
- Power on to run applications in 25 seconds
- Multi-language interface support

HDMI

Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI ports supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.

Feature list

Supported memory types:	DDR3-SDRAM
Memory slots type:	DIMM
Memory channels:	Dual
Non-ECC:	Y
Supported memory clock speeds:	1333, 1600, 1866, 2133 MHz
Maximum internal memory:	32 GB
Memory slots:	2
Processor family:	AMD
Compatible processor series:	AMD A, Athlon
Processor socket:	Socket FM2
USB 2.0 connectors:	2
USB 3.0 connectors:	1
Supported hard disk drive interfaces:	Serial ATA III
Number of SATA connectors:	4
CPU fan connector:	Y
Number of COM connectors:	1
ATX Power connector 24-pin:	Y
Chassis intrusion connector:	Y
Front panel audio connector:	Y
TPM connector:	Y
Number of SATA III connectors:	4
USB 2.0 ports quantity:	4
USB 3.0 ports quantity:	2
Ethernet LAN RJ-45 ports:	1
PS/2 ports quantity:	2
Headphone outputs:	1
Microphone in:	Y
VGA D-Sub ports quantity:	1
DVI-D ports quantity:	1
HDMI ports quantity:	1
Ethernet LAN:	Y
LAN controller:	Realtek RTL8111G
Ethernet interface type:	Gigabit
Component for:	Mini PC
Motherboard chipset family:	AMD
Motherboard chipset:	AMD A68H
Motherboard form factor:	Micro ATX
RAID levels:	0, 1, 10
Maximum graphics adapter memory:	2048 MB
PCI Express x1 Gen 2.x slots:	1
PCI Express x16 Gen 3.x slots:	1
PCI slots:	1
BIOS type:	UEFI
Clear CMOS jumper:	Y
Width:	186 mm
Depth:	226 mm
