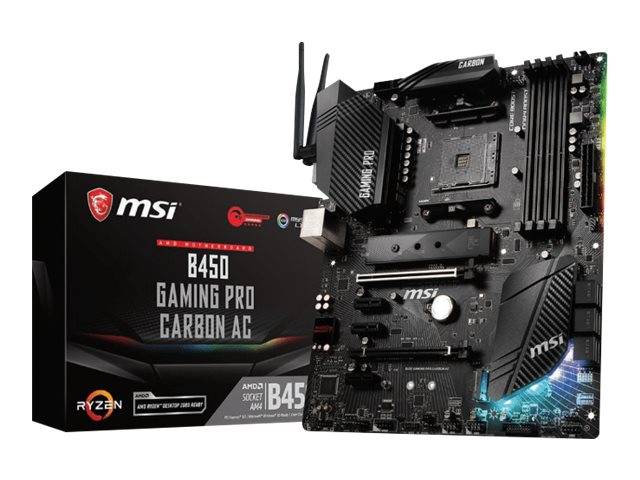

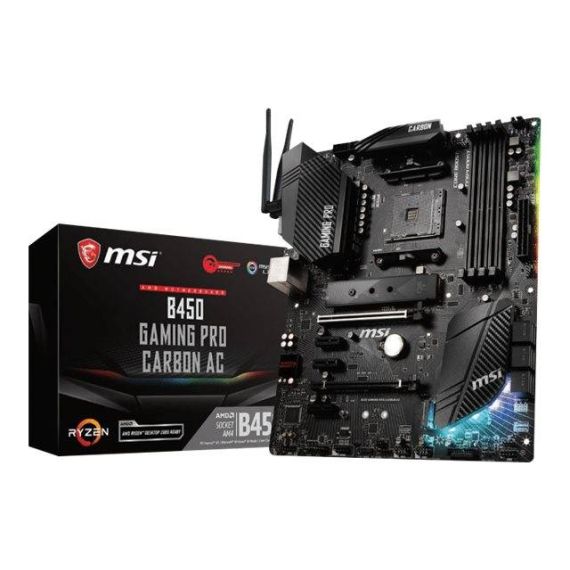

MSI B450 GAMING PRO CARBON AC / Motherboard / ATX / Socket AM4 / AMD B450 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7B85-001R
7B85-001R
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
MSI B450 GAMING PRO CARBON AC / Motherboard / ATX / Socket AM4 / AMD B450 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7B85-001R
|
Description Cooling your PC is essential for reliable performance. MSI made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI B450 GAMING PRO CARBON AC / Motherboard | 7B85-001RSpecial Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3066 MHz (O.C.) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Allocated RAM Size | 2048 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I211-AT / Dual Band Wireless-AC 9260 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x16 (x4 mode (x1 mode if PCI Express 2.0 x1 slot is occupied)) ¦ 3 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 2.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 1 x USB 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DisplayPort ¦ 1 x USB-C Gen2 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, BIOS FlashBack+, MSI ClickBIOS 5 |
| Hardware Features | 8 Phase Power Design, AMD CrossFireX technology support, MSI Gaming Device Port, Turbo M.2, MSI Mystic Light, Game Boost, LAN Protect, MSI Audio Boost 4, Nahimic 3 Sound Technology, MSI Core Boost, MSI PCIe Steel Slot, AMD StoreMI technology, AMD Turbo USB 3.1 Gen 2 |
| Included Accessories | I/O back cover |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, MSI Live Update, MSI Command Center, RAMdisk, MSI Gaming Hotkey, MSI X-BOOST |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - MSI - 7B85-001R
More Details
Product Code
03:540257
EAN Code
4719072587031
Manufacturer
MSI
