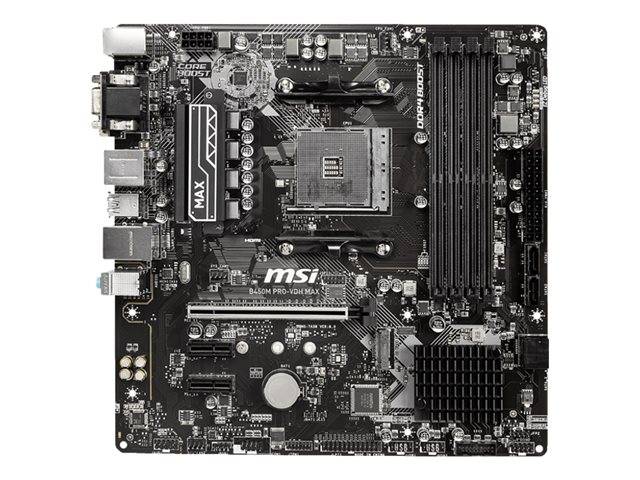

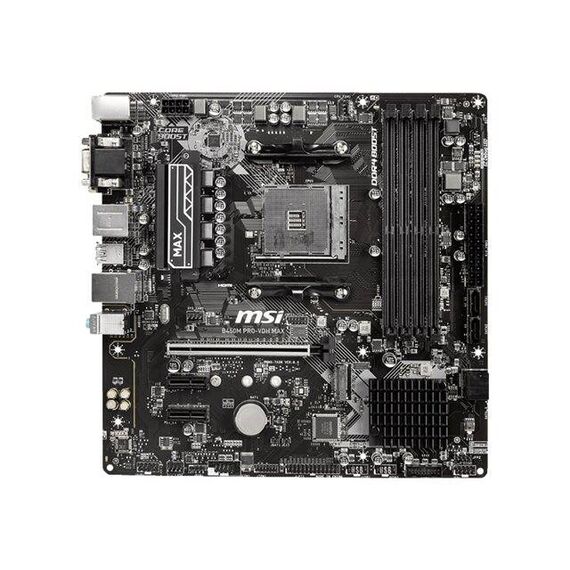

MSI B450M PRO-VDH MAX / Motherboard / micro ATX / Socket AM4 / AMD B450 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A38-043R
Please sign in so that we can notify you about a reply
MSI B450M PRO-VDH MAX / Motherboard / micro ATX / Socket AM4 / AMD B450 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A38-043R
Description
MSI motherboards have tons of convenient and smart design features, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
MSI B450M PRO-VDH MAX / Motherboard | 7A38-043R
Special Features
- Excellent cooling
- Enhanced performance
- Quality components
- Optimized memory layout
Product features
- Excellent cooling
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. - Enhanced performance
MSI motherboards featured all the latest solution for enthusiast gamers and pro consumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. - Quality components
High-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system. - Optimized memory layout
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B450 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 1866 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 2667 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 3066 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Max Allocated RAM Size | 2048 MB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC892 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x parallel - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Hardware Features | MSI Audio Boost, Debug LED, Turbo M.2, MSI Core Boost, MSI PCIe Steel Slot |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - MSI - 7A38-043R
CPU Socket
- Socket AM4
More Details
Product Code
03:126903
EAN Code
4719072665968
Manufacturer
MSI
