MSI B560M-A PRO / Motherboard / micro ATX / LGA1200 Socket / B560 Chipset / USB 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D20-002R
Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
MSI B560M-A PRO / Motherboard | 7D20-002R
Special Features
- DDR4 Boost
- EZ Debug LED
- Frozr AI cooling
- Lightning Gen4 Solution
- 2.5G Network Solution
- M.2 Shield FROZR
- Core Boost
- Audio Boost
Product features
- DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability. - EZ Debug LED
Easiest way to troubleshoot. - Frozr AI cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. - Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. - 2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience. - M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. - Core Boost
With premium layout and fully digital power design to support more cores and provide better performance. - Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4700 MHz (O.C.), 3200 MHz, 5200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8125B |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |

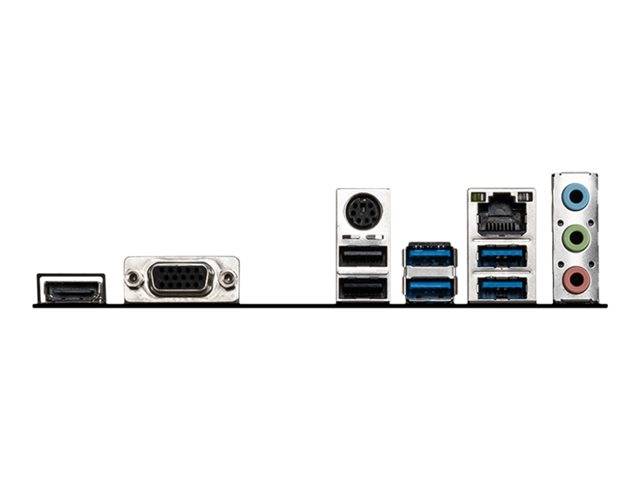

| Interfaces | 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 3.0 support, ACPI 6.2 support |
| Hardware Features | Intel Optane Memory Ready |
| Included Accessories | I/O back plate, case badge, 1 x M.2 screw, standoff for M.2 socket |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 23.6 cm |
| Depth | 20.2 cm |
| Service & Support | Limited warranty - 3 years |
Features - MSI - 7D20-002R
More Details
Product Code
03:153363
EAN Code
4719072802950
Manufacturer
MSI
