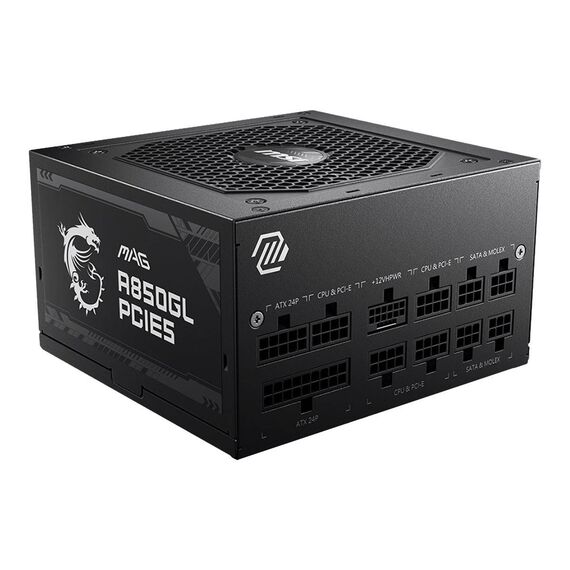

MSI MAG A850GL PCIE5 / Power supply (internal) / ATX12V 3.0/ EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt / active PFC | 306-7ZP8A11-CE0
Please sign in so that we can notify you about a reply
Product Features
- ATX 3.0 compatible
It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIe5 power supply can handle 2x total power excursion and 3x GPU power excursion. - Level up your game
With native 16 PIN PCIe connector this power supply is ready for NVIDIA GeForce RTX 40 Series graphics cards. It can freely pipe 600 W of power to PCIe 5.0 graphics cards. - Compact sizing
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside. - Only what you need
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. - Fluid dynamic bearing
The power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level. - DC to DC and full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design. - The power you have
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU and PCI-E slots are more than plenty. - Protection mechanisms
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
Special Features
- ATX 3.0 compatible, native PCIe 5.0 connector
- Supports NVIDIA GeForce RTX 40 Series graphics cards
- Full modular design, flat cables
- High efficiency
- Active PFC design, industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP
- 120 mm Fluid dynamic bearing fan
- LLC Full Bridge Topology with DC-DC module design
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Cables Included | ATX power cable 60 cm ¦ 16-pin 12VHPWR power cable 60 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 70 cm ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, fluid dynamic bearing cooling fan, fully modular, LLC Full Bridge Topology |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - MSI - 306-7ZP8A11-CE0
More Details
Product Code
04:433415
EAN Code
4711377084253
Manufacturer
MSI
