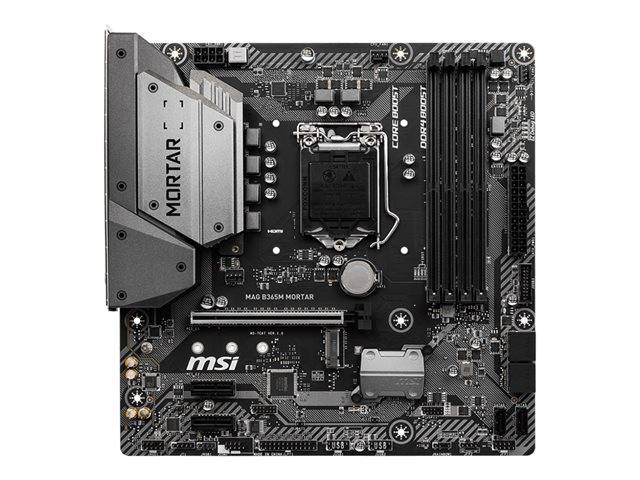

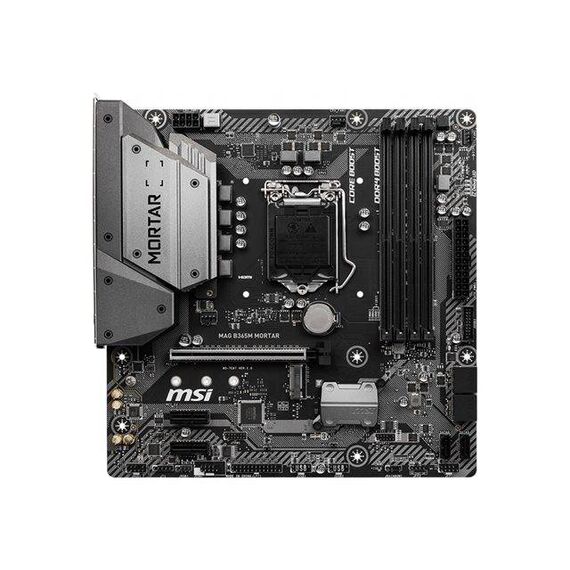

MSI MAG B365M MORTAR / Motherboard / micro ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C67-001R
MSI MAG B365M MORTAR / Motherboard / micro ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7C67-001R
Description
MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.
MSI MAG B365M MORTAR / Motherboard | 7C67-001R
Special Features
- Intel Gaming LAN: Premium network solution from Intel for professional and multimedia use
- Pre-installed I/O shielding: Better EMI protection and more convenience for installation
- Extended heatsink design, Core Boost, DDR4 Boost
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe-based SSDs
Product features
- Excellent power design
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsink. - Enhanced performance
MSI motherboards feature modern solutions for enthusiast gamers and professional consumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. - Quality materials
High-quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers better performance at all times. - In-game advantage
MSI motherboards provide fascinating in-game advantages, allowing gamers to dominate any game anytime.
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B365 |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Compliant Standards | High Definition Audio |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x HDMI ¦ 3 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x USB-C Gen1 |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Hardware Features | MSI Audio Boost, Turbo M.2, MSI Mystic Light, MSI Steel Armor, pre-mounted I/O shield |
Software Included | MSI Dragon Center |
Width | 24.3 cm |
Depth | 24.3 cm |
