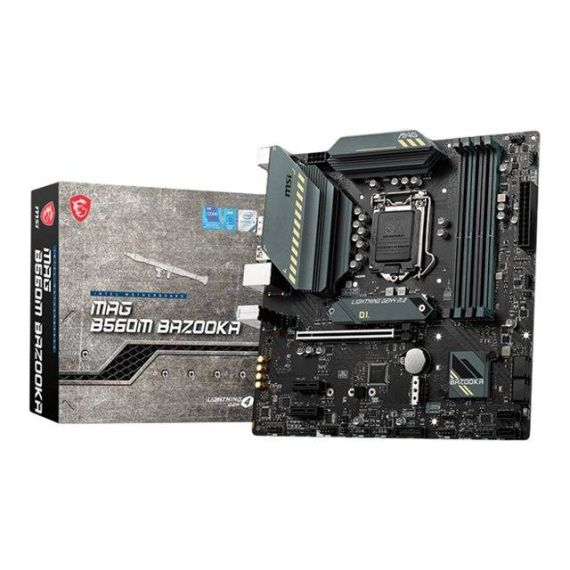

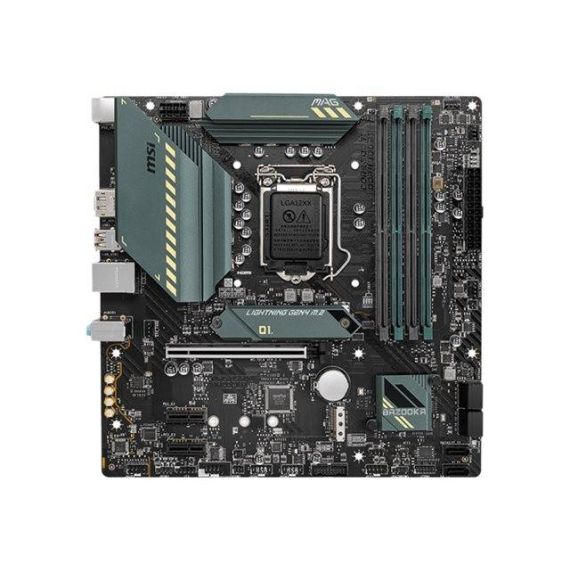

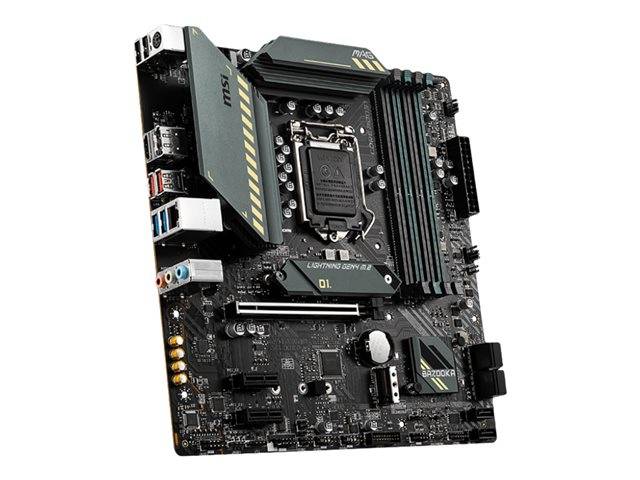

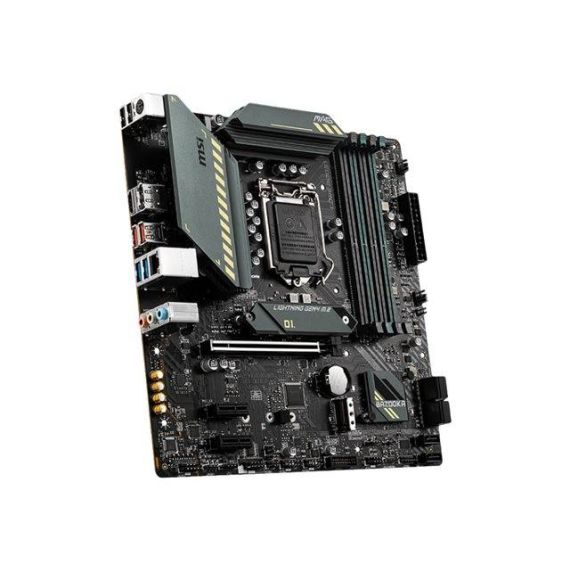

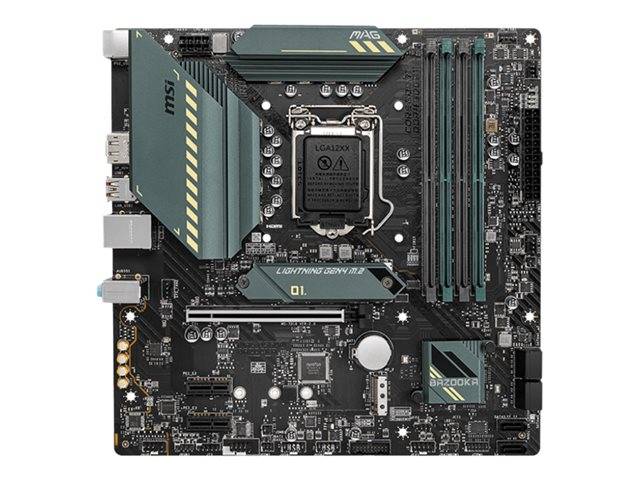

MSI MAG B560M BAZOOKA / Motherboard / micro ATX / LGA1200 Socket / B560 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D18-003R
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B560 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 5066 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8125B |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| RAID Features | Intel Smart Response Technology |

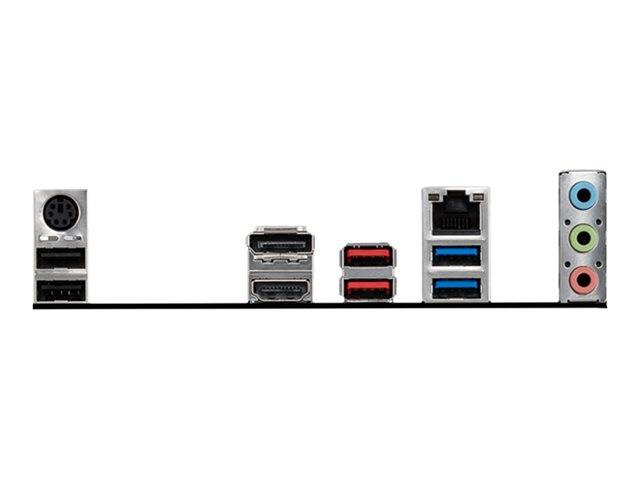

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | MSI Audio Boost, anti-pop function, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost |
| Included Accessories | Case badge, 3 x M.2 screws, 3 x standoff for M.2 socket, MAG stickers |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 24.4 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - MSI - 7D18-003R
More Details
Product Code
03:153356
EAN Code
4719072802936
Manufacturer
MSI
