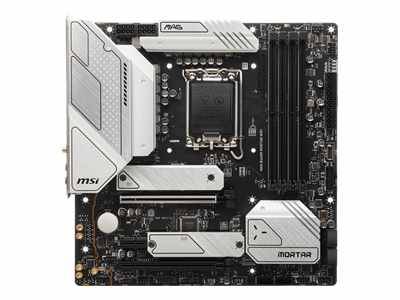

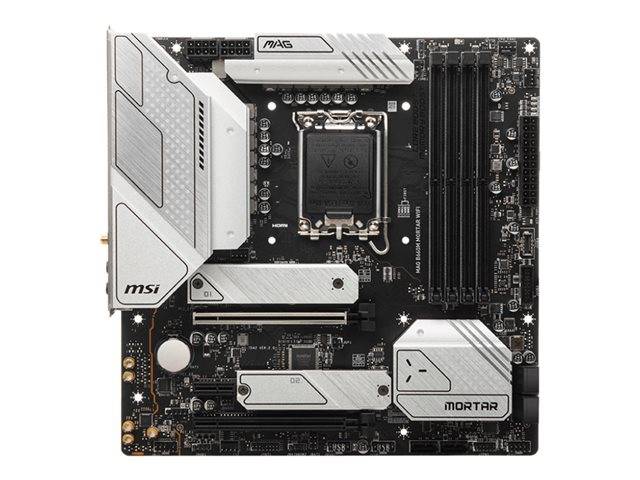

MSI MAG B660M MORTAR WIFI / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7D42-002R
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel B660 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0 |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1200 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x TOSLINK ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Digital PWM, AMD CrossFireX technology support, MSI Audio Boost, anti-pop function, Debug LED, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Intel Optane Memory Ready, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost |
| Included Accessories | Case badge, screwdriver, Wi-Fi aerial, MAG stickers, 2 x M.2 clips |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 24.4 cm |
| Depth | 24.4 cm |
Features - MSI - 7D42-002R
CPU Socket
- Socket 1700
More Details
Product Code
04:399831
EAN Code
4719072912420
Manufacturer
MSI
