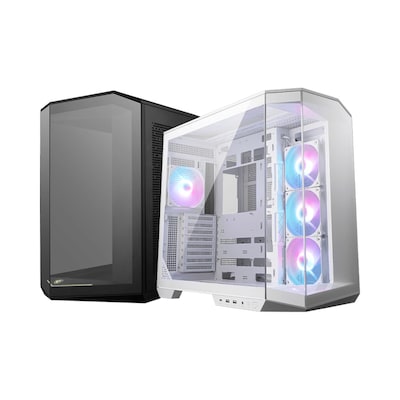

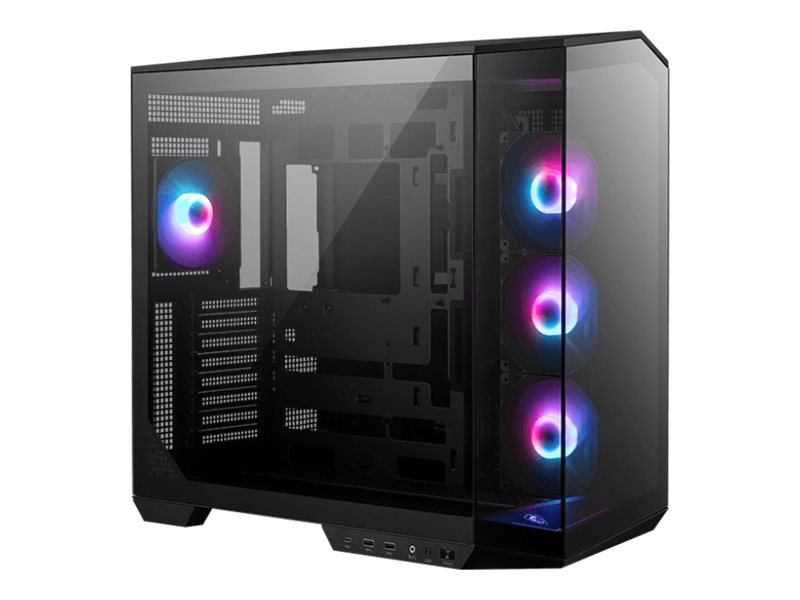

MSI MAG PANO 100R PZ / Mid tower / ATX / windowed side panel (tempered glass) / no power supply (ATX) / USB/Audio/Mic | 306-7G26W22-HH9

Product Features
- Innovative cooling
The MSI MAG PANO 100R PZ is designed with a sophisticated cooling system, featuring up to three 120 mm fans on the side, a 120 mm radiator support at the rear, and options for up to 360 mm radiators on the top and bottom. This ensures optimal airflow and temperature control for high-performance components. - Elegant design
Featuring a 270-degree panoramic glass display, the mid-tower chassis showcases your build from almost any angle. Coupled with ARGB fans and MSI RGB Mystic Light Sync, it allows for a fully customizable lighting experience that can match any mood or build theme. - Spacious and organized
With support for up to five internal bays and a dual chamber layout, the MSI MAG PANO 100R PZ offers ample space for all your components while ensuring a clean and organized build. The inclusion of a cable management system further enhances the aesthetic and functional appeal of your setup.
Special Fetures
- 270-degree panoramic glass display for stunning visuals of your build
- Comprehensive cooling options with support for up to 360 mm radiators
- MSI RGB Mystic Light Sync for a customizable lighting experience
- Ample storage with five internal bays and a dual chamber layout for organization
- Designed for versatility with support for ATX, Mini-ITX, and microATX motherboards
Product Specification
Form Factor | Mid tower |
Windowed Side Panel | Yes |
Windowed Side Panel Material | Tempered glass |
Max Mainboard Size | ATX |
Supported Motherboards | ATX, microATX, Mini-ITX |
Internal Bays Qty | 5 |
Cooling System | Side: 120 mm fan x 3 / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported <br /> Rear: 120 mm fan x 1 / 120 mm radiator supported <br /> Top: fan mount / 2 x 140 mm or 3 x 120 mm fan supported or 120/140/240/280/360 radiator supported <br /> Bottom: fan mount / 3 x 120 mm fan or 2 x 140 mm fan or 2 x 160 mm supported or 120/140/240/280/360 mm radiator supported |
CPU Cooler Max Height | 166 mm |
Video Card Max Length | 380 mm |
Power Supply Max Length | 200 mm |
System Cabinet Features | 270-degree panoramic glass display, support back-connect motherboard, dual chamber layout, ARGB controller, ARGB fans, MSI RGB Mystic Light Sync, cable management system, top panel dust filter, side panel dust filter, bottom dust filter, vertical graphic card ready |
Expansion / Connectivity | |
Expansion Bays | 2 (total) / 2 (free) x internal - 2.5" / 3.5" shared <br /> 3 (total) / 3 (free) x internal - 2.5" |
Expansion Slots | 8 |
Interfaces | 2 x USB 3.2 Gen 1 <br /> 1 x USB-C 3.2 Gen 2x2 <br /> 1 x microphone - mini-jack <br /> 1 x headphones - mini-jack |
Power | |
Power Device | No power supply |
Specification Compliance | ATX |
Max Supported Qty | 1 |
Dimensions & Weight | |
Width | 29 cm |
Depth | 51.87 cm |
Height | 48.2 cm |
