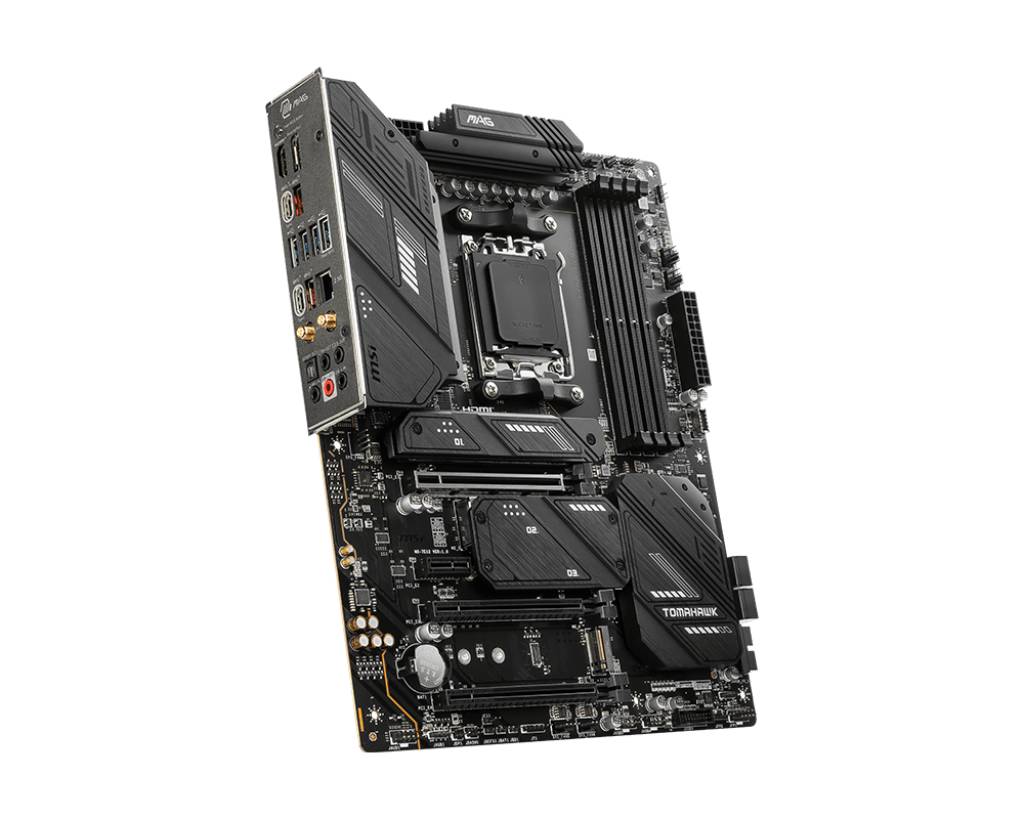

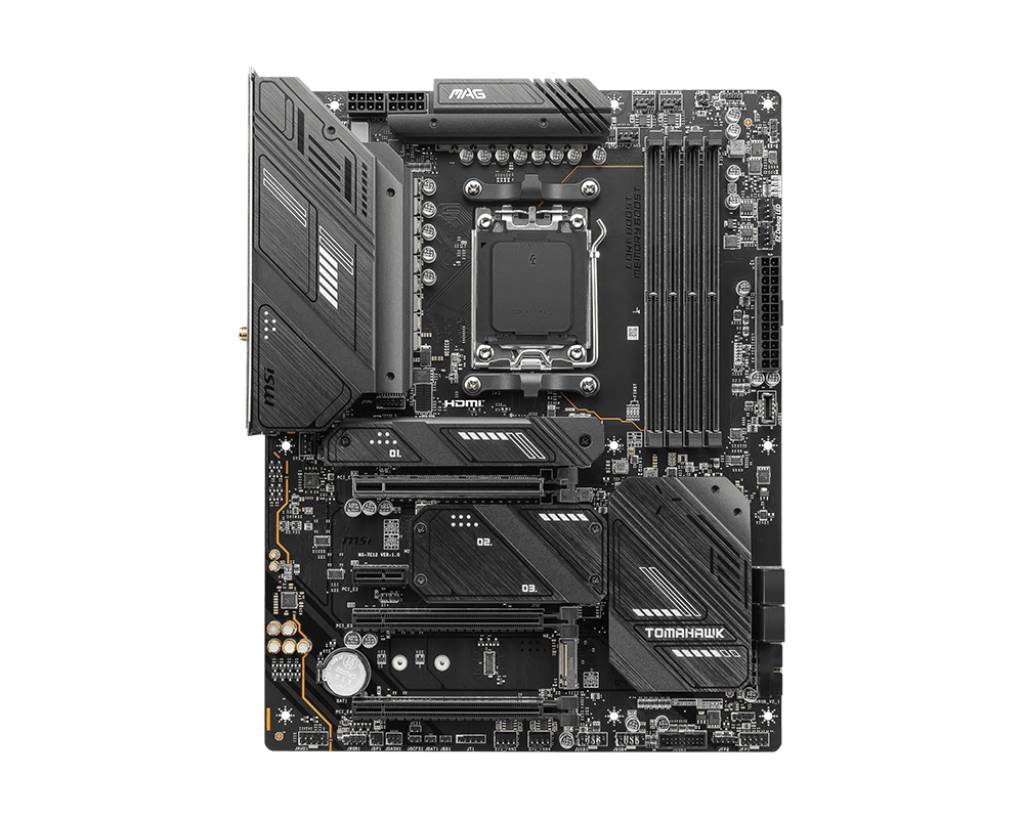

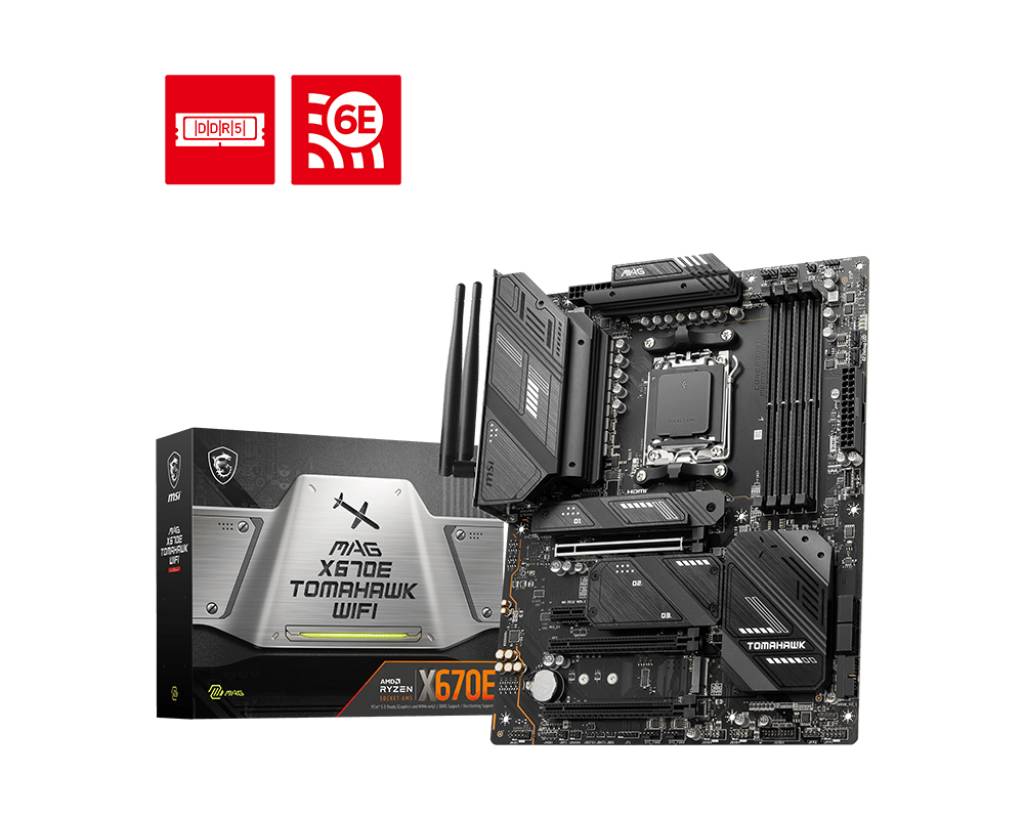

MSI MAG X670E TOMAHAWK WIFI / Motherboard / ATX / Socket AM5 / AMD X670 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 / 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7E12-001R
Please sign in so that we can notify you about a reply
Product Features
- 14+2+1 duet rail power system
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG series motherboard is ready to sustain heavy gaming loadings. - Optimized PCB solution
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission. - Fast and future-ready storage
MSI MAG series motherboards support all the storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. - DDR5 memory with SMT slot
A huge step of DDR performance enhancement with the DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X670E TOMAHAWK WIFI is ready to deliver the world class memory performance. - High-bandwidth and low-latency network
MSI's premium network solution provides incredible data transfer speed for demanding users.
Special Features
- Enhanced power design - 14+2+1 duet rail power system, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning fast game experience - PCIe 5.0 slot, lightning Gen5 M.2, USB 3.2 Gen 2x2
- Premium thermal solution - extended heatsink design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST - reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB - 8-layer PCB made by 2oz thickened copper and server grade level material
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X670 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1200 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x2 mode) ¦ 3 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/25110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |

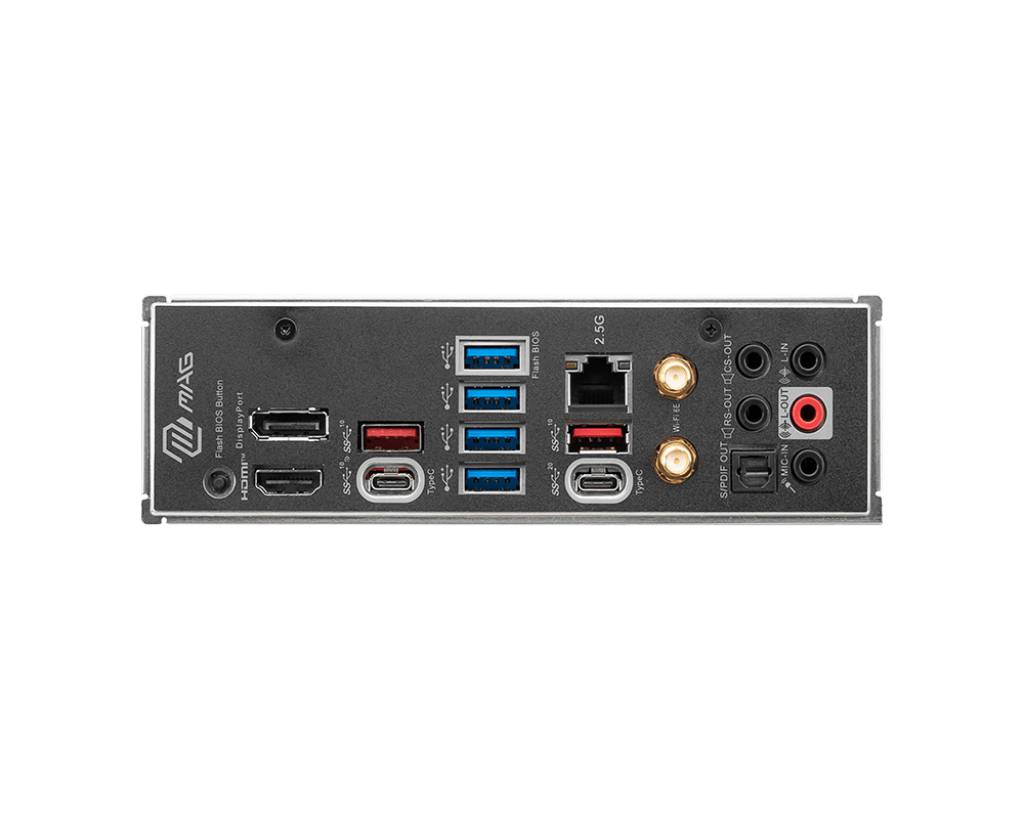

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial ¦ 1 x SPDIF out |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Features | M-Flash, MSI ClickBIOS 5 |
| Hardware Features | Chassis intrusion detection, Digital PWM, MSI Audio Boost, 8 Layer PCB, MSI Steel Armor, Game Boost, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, EZ LED control, Surface Mount Technology (SMT), 14+2+1 Phase Power Design, MSI Memory Boost, 80A Smart Power Stage, flash BIOS button |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, Wi-Fi aerial, cable stickers, 3 x M.2 clips |
| Cables Included | 2 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), Norton 360 Deluxe (60 days trial) |
| Compliant Standards | WEEE, FCC Part 15 Class B, DisplayPort 1.4 |
| Width | 30.48 cm |
| Depth | 24.384 cm |
Features - MSI - 7E12-001R
CPU Socket
- Socket AM5
More Details
Product Code
07:241742
EAN Code
4711377076562
Manufacturer
MSI
