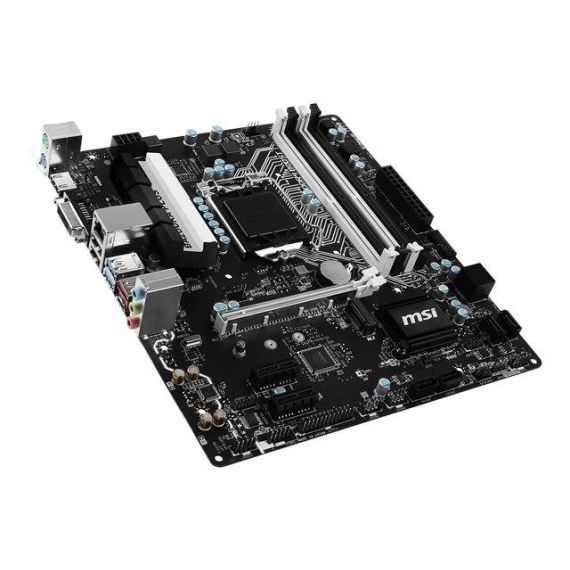

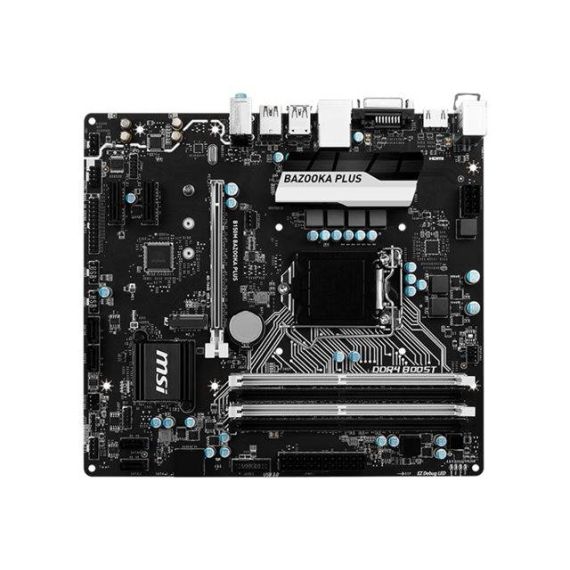

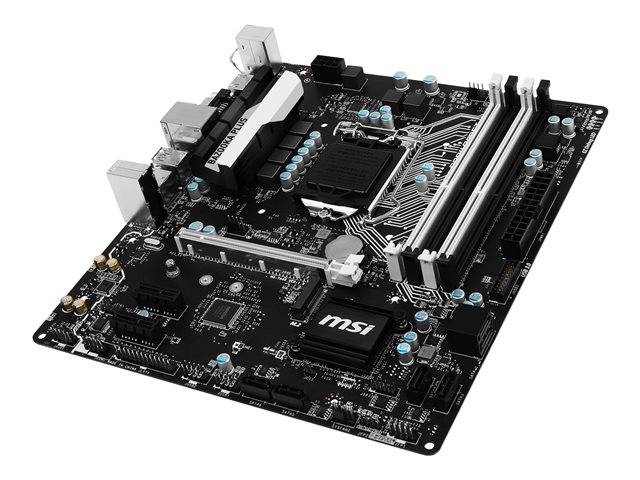

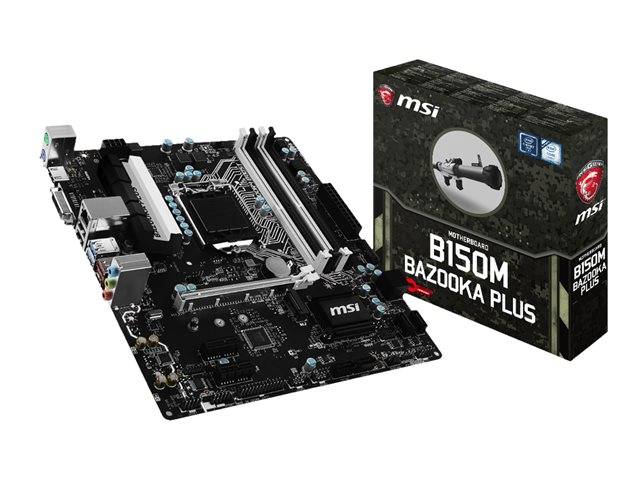

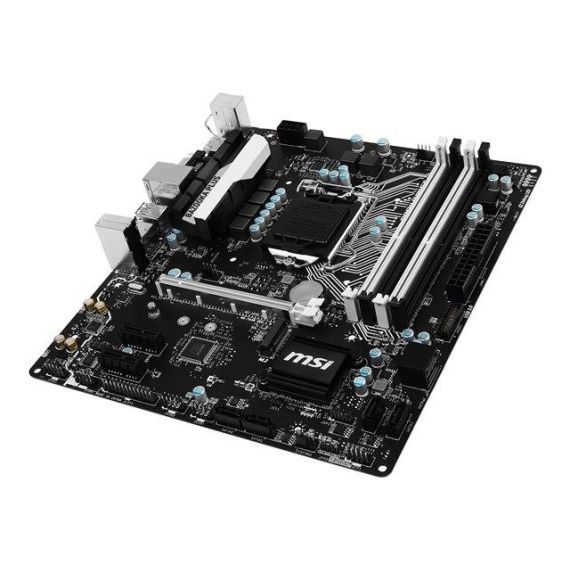

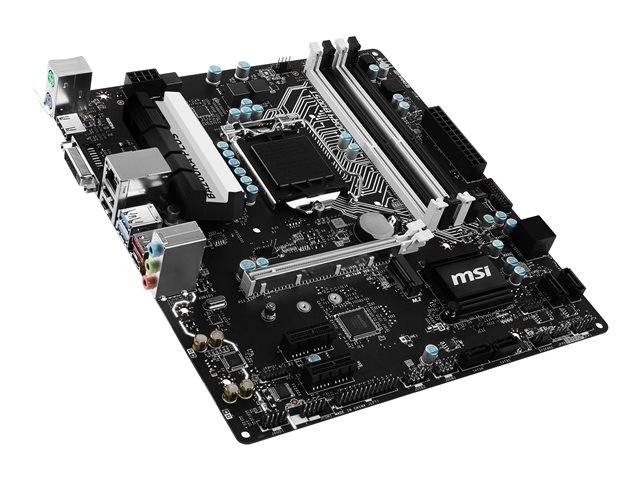

MSI B150M BAZOOKA PLUS / Motherboard / micro ATX / LGA1151 Socket / B150 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A46-001R
MSI B150M BAZOOKA PLUS / Motherboard / micro ATX / LGA1151 Socket / B150 / USB 3.1 Gen1, USB-C Gen1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7A46-001R
Description Equip yourself with the MSI Arsenal GAMING Series motherboards to improve your game. MSI Arsenal GAMING Series motherboards are covered in full black camouflage with LED ambient lights and is packed with gaming features, making them the perfect weapon to dominate the battlefield. Special Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B150 Express |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 / PCIe 3.0 -connectors: 6 x 7pin Serial ATA, 1 x M.2 |

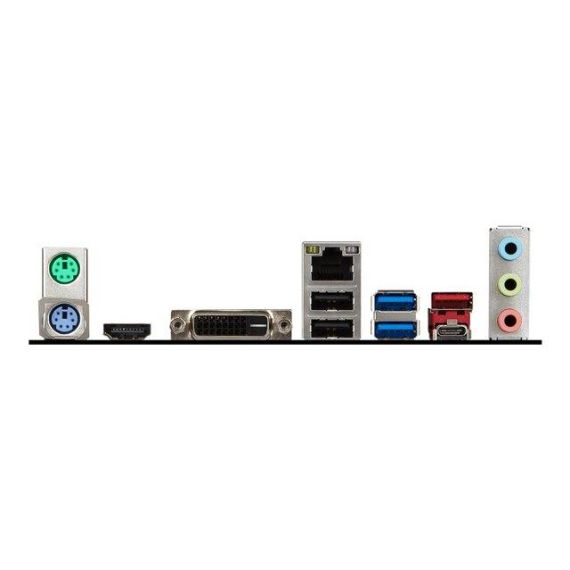

Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 3 x USB 3.1 Gen1 ¦ 1 x PS/2 mouse ¦ 1 x USB-C Gen1 |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x parallel - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS, UEFI BIOS |
Hardware Features | Intel Extreme Memory Profile (XMP) support, MSI Military Class IV, 4K Ultra HD ready, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Steel Armor, Double ESD Protection, SteelSeries Certified (SSC), Intel Small Business Basics support, overvoltage protection |
Software Included | RAMdisk, MSI Gaming App, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI CPU-Z |
Width | 24.4 cm |
Depth | 22 cm |
Service & Support | Limited warranty - 3 years |
