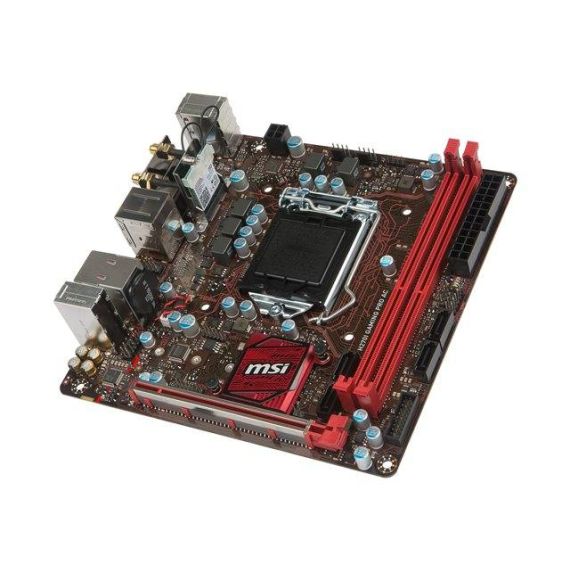

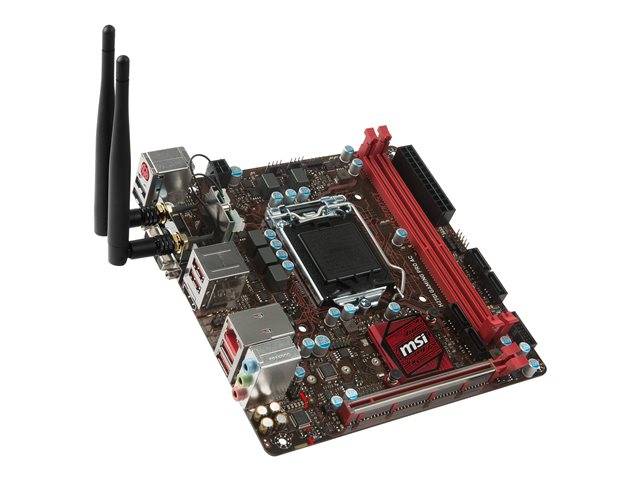

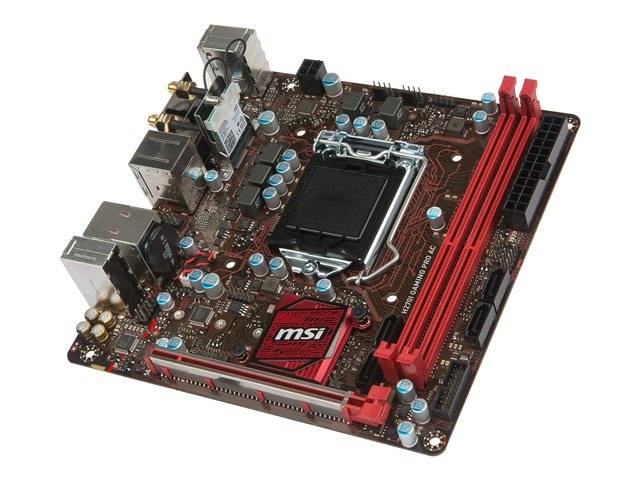

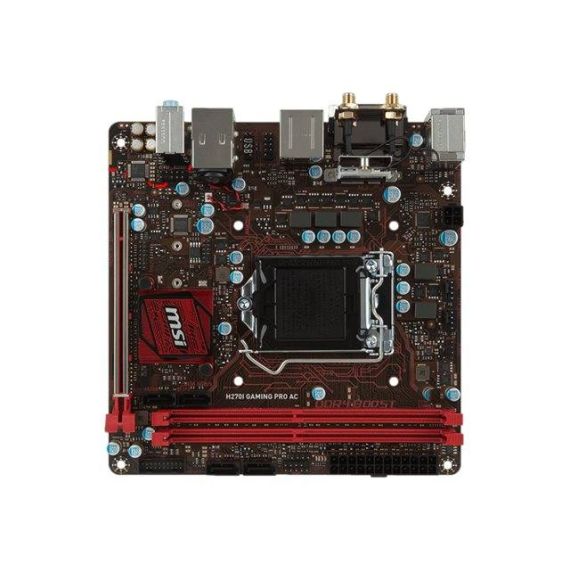

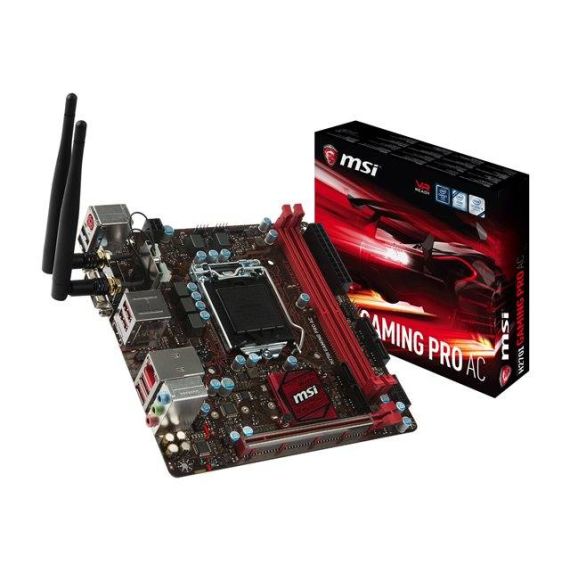

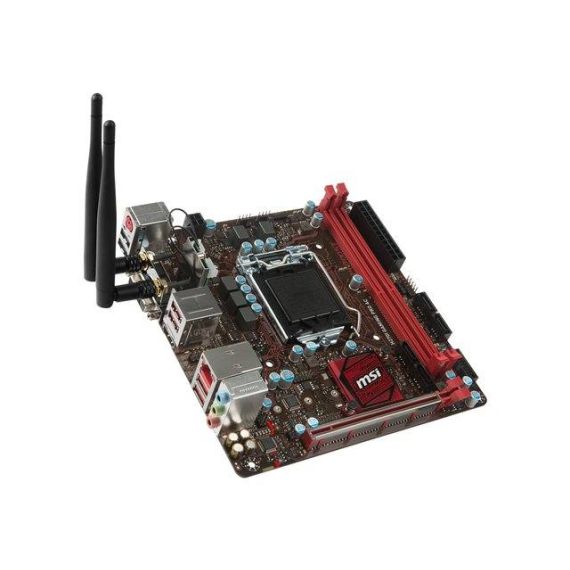

MSI H270I GAMING PRO AC / Motherboard / mini ITX / LGA1151 Socket / H270 / USB 3.1 Gen 1 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7A67-002R
MSI H270I GAMING PRO AC / Motherboard / mini ITX / LGA1151 Socket / H270 / USB 3.1 Gen 1 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7A67-002R
Description Cooling your PC is essential for reliable performance. They have made sure to include enough fan headers with full control to allow you to cool your system any way you want.This MSI GAMING motherboard supports all the storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay. MSI H270I GAMING PRO AC / Motherboard / mini ITX / LGA1151 SocketSpecial Features
Product features
|
Product Specification
Product Type | Motherboard - mini ITX |
Chipset Type | Intel H270 |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max Size | 32 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8111H / Intel Dual Band Wireless-AC 8265 |
Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x M.2 socket |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

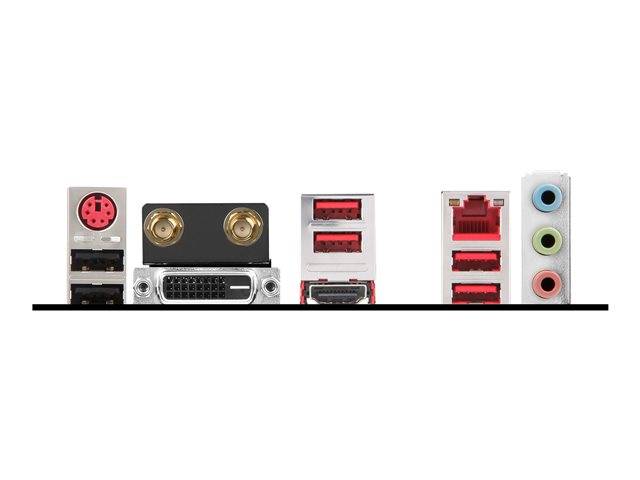

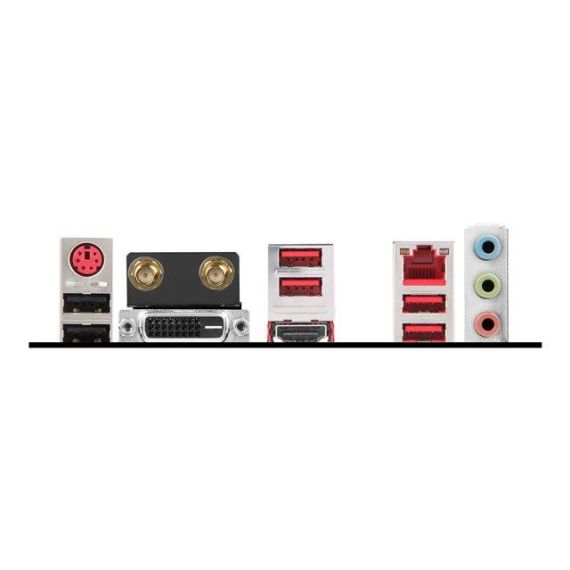

Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | Intel Extreme Memory Profile (XMP) support, MSI Military Class IV, MSI Audio Boost, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Intel Optane Memory Ready |
Software Included | MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI Gaming LAN Manager, MSI X-BOOST |
Width | 17 cm |
Depth | 17 cm |
Package Type | Retail |
Service & Support | Limited warranty - 3 years |
