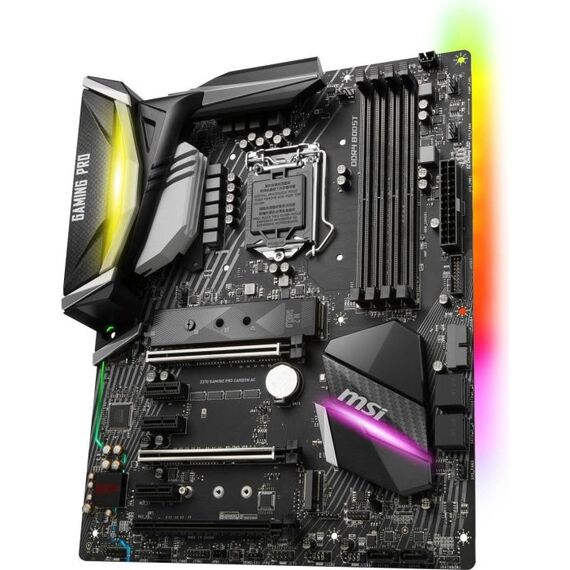

MSI Z370 GAMING PRO CARBON AC / Motherboard / ATX / LGA1151 Socket / Z370 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 7B45-001R
|
Description 16.8 million colors/17 effects controlled in one click. Mystic Light Sync supports both RGB and Rainbow LED strip. Reward your ears with studio grade sound quality for the most immersive gaming experience. Fully isolated, shielded and optimized DDR4 PCB design to give your DDR4 memory a performance boost. Special Features
Product features
|
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z370 |
| Processor Socket | LGA1151 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | 2x Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V / Intel Dual Band Wireless-AC 8265 |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes) ¦ 3 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | Intel Extreme Memory Profile (XMP) support, NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, MSI Gaming Device Port, MSI Guard-Pro, Debug LED, MSI Mystic Light, MSI Steel Armor, Game Boost, MSI Military Class V, LAN Protect, 3D printing friendly, Intel Optane Memory Ready, MSI Audio Boost 4, Nahimic 2+ Sound Technology |
| Included Accessories | I/O back plate, Bluetooth / Wi-Fi module |
| Cables Included | 1 x SLI bridge ¦ Serial ATA cable |
| Software Included | Drivers & Utilities, MSI Command Center, RAMdisk, MSI Live Update 6, MSI Gaming Hotkey, MSI X-BOOST |
| Width | 30.4 cm |
| Depth | 24.3 cm |
| Service & Support | Limited warranty - 3 years |
Features - MSI - 7B45-001R
More Details
Product Code
03:214715
EAN Code
4719072540456
Manufacturer
MSI
