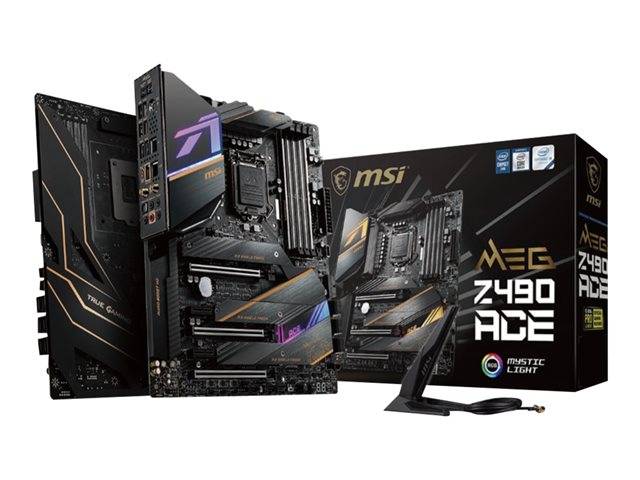

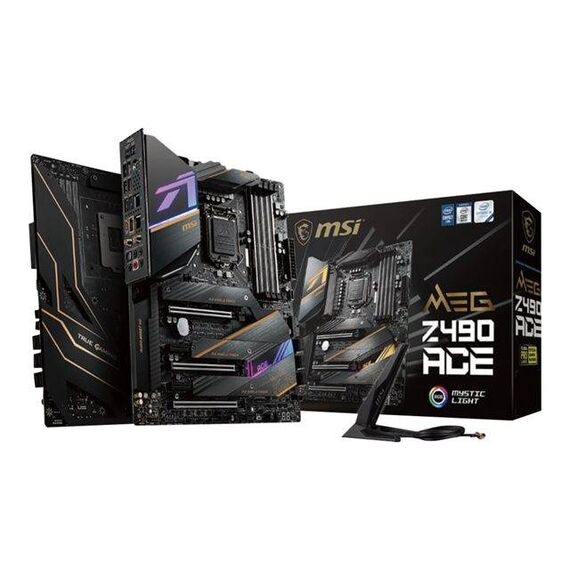

MSI MEG Z490 ACE / Motherboard / ATX / LGA1200 Socket / Z490 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi / HD Audio (8-channel) | 7C71-008R
7C71-008R
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
MSI MEG Z490 ACE / Motherboard / ATX / LGA1200 Socket / Z490 / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 / Gigabit LAN, 2.5 Gigabit LAN, Bluetooth, Wi-Fi / HD Audio (8-channel) | 7C71-008R
Description
The MEG Z490 ACE features 16+1 Phase Power Design with 90A SPS and dual CPU power connectors, MSI Frozr Heatsink Design and Mystic Light RGB LED which allows you to personalize your PC with 16.8 million colors and 29 effects. Onboard 2.5G LAN with LAN manager delivers perfect online gaming experience. The incorporated Wi-Fi 6 solution supports MU-MIMO and the BSS color technology, delivering high speeds. The chest plate strengthens the board connector part, prevents PCB bending and protects your hand when installing the motherboard. The MEG Z490 ACE also features smart button for Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions.
MSI MEG Z490 ACE / Motherboard | 7C71-008R
Special Features
- Mystic Light RGB LED
- Extreme power design
- Frozr Heatsink Design
- M.2 Shield FROZR
- 2.5G LAN with LAN manager
- Wi-Fi 6
- Triple Turbo M.2
- Smart button
- Chest plate
Product features
- Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects controlled in one click! - Extreme power design
ISL digital PWM, 16+1 phases with 90A SPS and dual CPU power connectors to unleash your true power. - Frozr Heatsink Design
Designed with double ball bearings to provide stunning performance for enthusiast gamers and prosumers. - M.2 Shield FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler and faster. - 2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering perfect online gaming experience. - Wi-Fi 6
This wireless solution supports MU-MIMO and the BSS color technology, delivering high speeds. - Triple Turbo M.2
Running at PCI-E Gen3 x4, maximizes performance for NVMe-based SSDs. - Smart button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click. - Chest plate
Strengthens the board connector part, prevents PCB bending and protects your hand when installing the motherboard.
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z490 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4800 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 / ESS SABRE9018Q2C |
| Compliant Standards | High Definition Audio |
| Network Controller | Intel I219V / Realtek RTL8125B / Intel AX201 |
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.1, 802.11ax |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 3 x PCIe 3.0 x16 (x16/x0/x4, x8/x8/x4 modes) ¦ 2 x PCIe x1 |
| Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| RAID Features | Intel Smart Response Technology |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 2.0 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x USB-C Gen2 - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Features | MSI ClickBIOS 5 |
| Hardware Features | NVIDIA 2-way SLI Technology Support, AMD 3-way CrossFireX technology support, Clear CMOS Button, 6 Layer PCB, Turbo M.2, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, Intel Optane Memory Ready, M.2 Shield FROZR, chest plate, pre-mounted I/O shield, MSI Core Boost, MSI Audio Boost HD, MSI Frozr Heatsink Design, 16+1 Phase Power Design, 90A Smart Power Stage |
| Included Accessories | External antenna, case badge, cable labels, 1 to 2 RGB LED extension Y cable, CORSAIR RGB LED extension cable, Rainbow RGB LED extension cable |
| Cables Included | 4 x Serial ATA cable |
| Software Included | Drivers & Utilities |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Service & Support | Limited warranty - 3 years |
Features - MSI - 7C71-008R
More Details
Product Code
04:335078
EAN Code
4719072718923
Manufacturer
MSI
