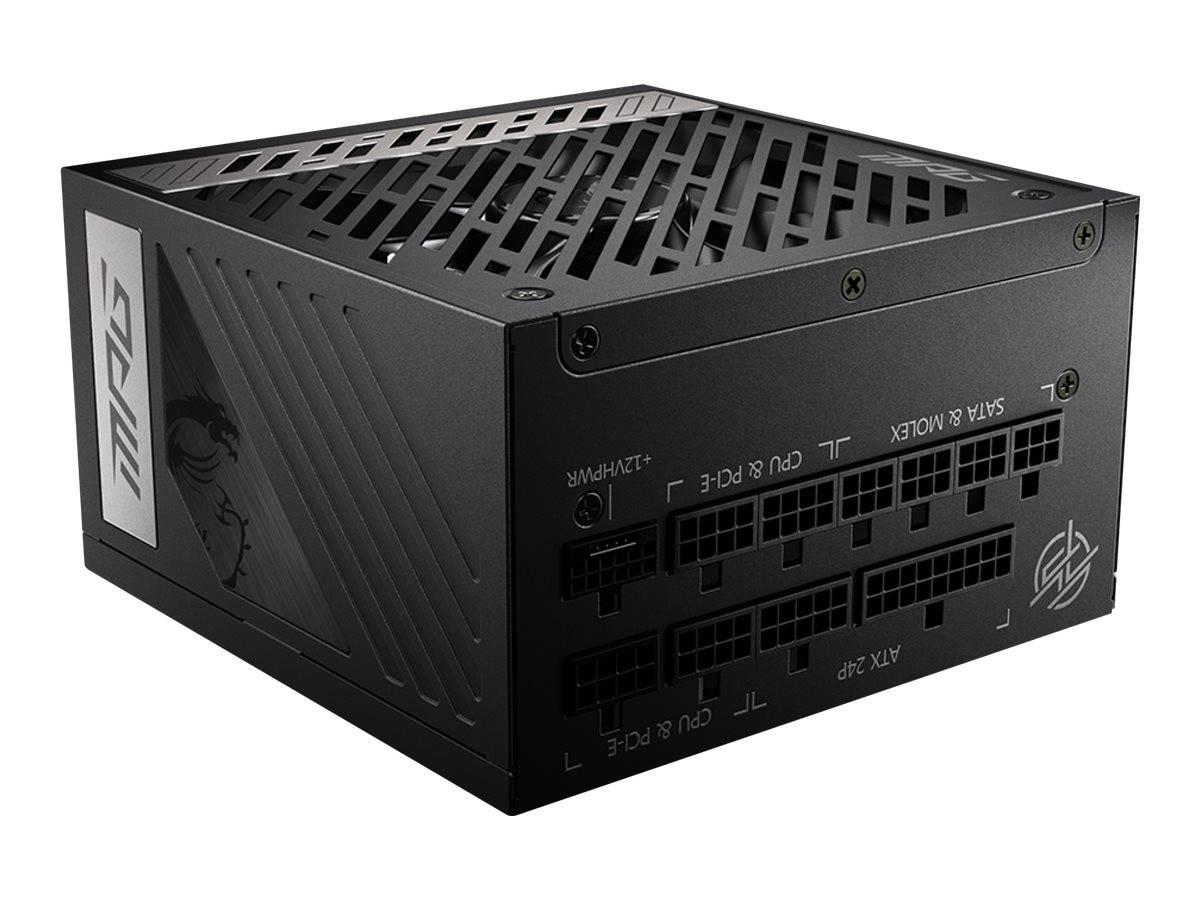

MSI MPG A850G PCIE5 / Power supply (internal) / ATX12V / EPS12V / 80 PLUS Gold / AC 100-240 V / 850 Watt / active PFC | 306-7ZP7B11-CE0
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V / EPS12V |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 650 W ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power ¦ 1 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +12V - 70.8 A ¦ +5VSB - 3 A |
| Efficiency | 90% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screws |
| Cables Included | ATX power cable 60 cm ¦ 16-pin 12VHPWR power cable 60 cm ¦ 16-pin 12VHPWR to 2x8 pin PCI Express power adapter 60 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ Power 8 pin +12V with detachable 4 pin section modular cable 70 cm ¦ 3 x power 15 pin SATA cable ¦ 4 pin internal power cable ¦ AC input cable - external |
| Cooling System | 135 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail, DC-DC technology, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular, LLC Half Bridge Topology |
| Compliant Standards | KC |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 15 cm |
| Height | 8.6 cm |
Features - MSI - 306-7ZP7B11-CE0
More Details
Product Code
04:415192
EAN Code
4719072972189
Manufacturer
MSI
