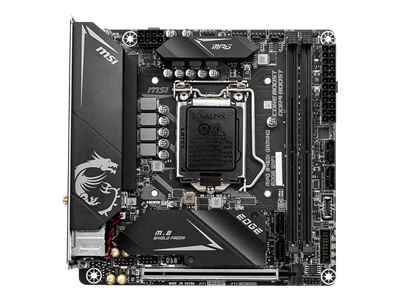

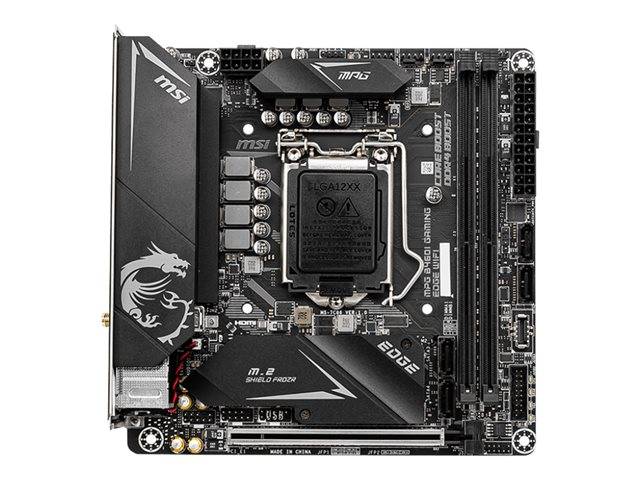

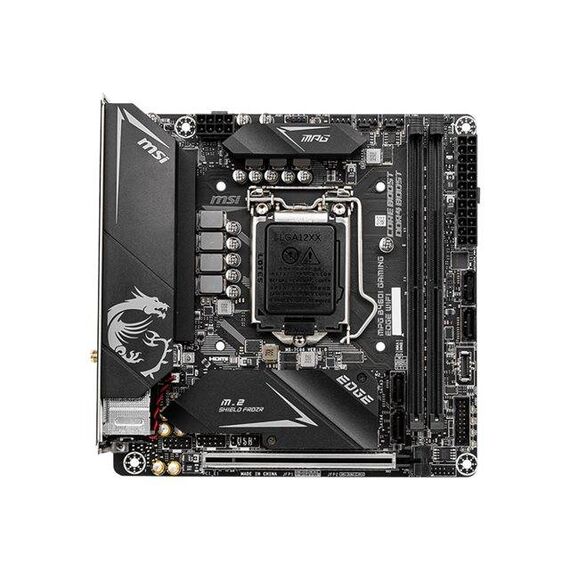

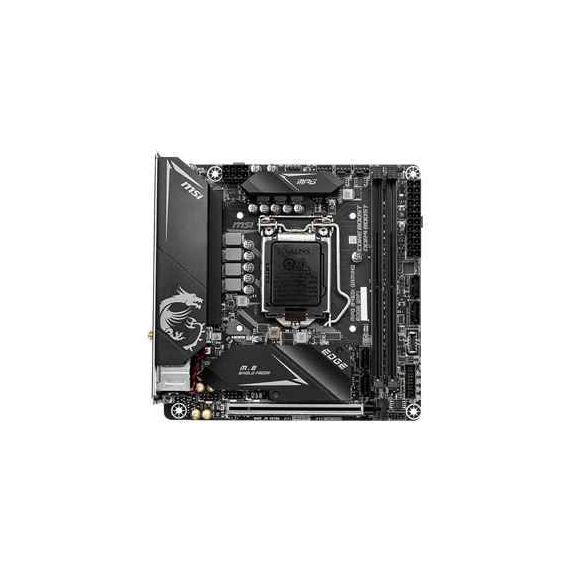

MSI MPG B460I GAMING EDGE WIFI / Motherboard / mini ITX / LGA1200 Socket / B460 / USB-C Gen1, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7C86-002R
MSI MPG B460I GAMING EDGE WIFI / Motherboard / mini ITX / LGA1200 Socket / B460 / USB-C Gen1, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-channel) | 7C86-002R
Description
The MPG series allows full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
MSI MPG B460I GAMING EDGE WIFI / Motherboard | 7C86-002R
Special Features
- Premium hardware design
- Pre-installed I/O shielding
- Fortify your system
- Ultimate motherboard protection
- Thermal solution for higher performance
- Full fan control
- Enhanced performance
- Future-ready storage
- Built with a variety of connectors to satisfy gamers
- High-bandwidth network
Product features
- Premium hardware design
With years of experience, MSI is no stranger to building high-performance motherboards. MSI's R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. - Pre-installed I/O shielding
Featuring the pre-installed I/O shielding, makes your installation process easier and safer. The design protects your I/O ports and also prevents electrostatic discharge damage, making your motherboard a strong gaming foundation. - Fortify your system
MSI PCIe Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference. - Ultimate motherboard protection
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. - Thermal solution for higher performance
MSI's enhanced circuit design ensures that even demanding CPUs run in full speed with these motherboards. - Full fan control
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. You can set 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. - Enhanced performance
High-performance MSI motherboards are loaded with advanced features and to overwhelm any challenge at hand no matter whether you're a gamer, prosumer, or PC enthusiast. - Future-ready storage
MSI MPG motherboards support modern storage standards, which allow users to connect any ultra-fast storage device. Higher efficiency makes your work easier. - Built with a variety of connectors to satisfy gamers
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one. - High-bandwidth network
MSI MPG series provides incredible data transfer speeds, faster than general Gigabit LAN. This is a premium solution for demanding users.
Product Specification
Product Type | Motherboard - mini ITX |
Chipset Type | Intel B460 / Nuvoton NCT6687 |
Processor Socket | LGA1200 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2666 MHz, 2933 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1200 |
Compliant Standards | High Definition Audio |
Network Controller | Realtek RTL8125B / Intel AX200 |
Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.1 |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 3 x USB 3.2 Gen 1 ¦ 1 x USB-C Gen1 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort |
Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Features | MSI ClickBIOS 5 |
Hardware Features | MSI Audio Boost, anti-pop function, Intel Optane Memory Ready, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync, 6+1+1 Phase Power Design |
Included Accessories | Case badge, Rainbow RGB LED extension cable |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities |
Width | 17 cm |
Depth | 17 cm |
Service & Support | Limited warranty - 3 years |
