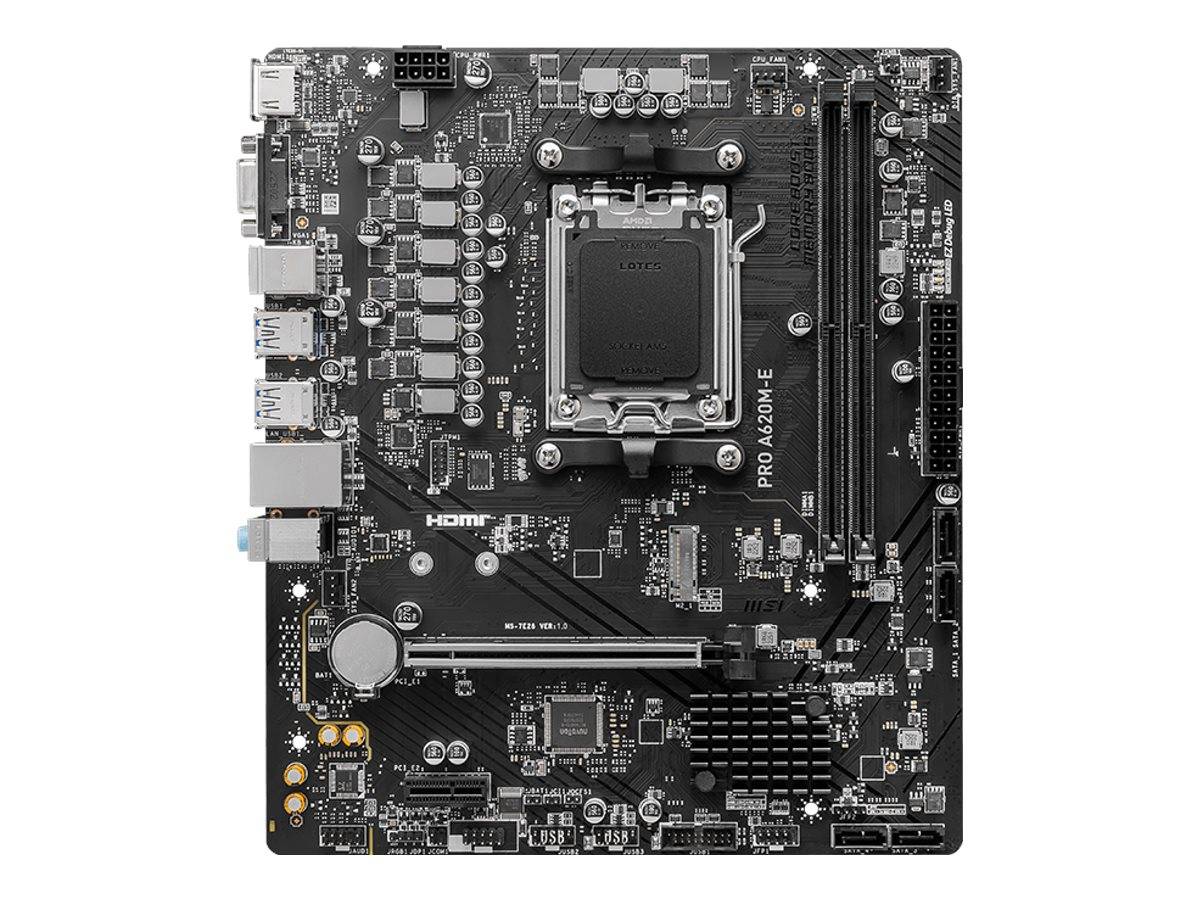

MSI PRO A620M-E / Motherboard / micro ATX / Socket AM5 / AMD A620 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7E28-001R

7E28-001R
100.10
108.80
(119.12 inc. VAT) You save: 8.70
Availability: 17 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:434638 EAN Code4711377093804 ManufacturerMSI CPU SocketSocket AM5

Product Features

  • Control in one click
    MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
  • Froza AI cooling
    Detecting CPU and GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
  • Auto detect your fan
    MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
  • Core Boost
    Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
  • Lightning Gen 4 PCI-E
    MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
  • Fast and future-ready storage
    MSI PRO series motherboards support advanced storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
  • DDR5 memory with SMT slot
    A huge step of DDR performance enhancement with the advanced DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.

Special Features

  • Control in one click
  • Froza AI cooling
  • Auto detect your fan
  • Core Boost
  • Lightning Gen 4 PCI-E
  • Fast and future-ready storage
  • DDR5 memory with SMT slot

Product Specification

Product Type Motherboard - micro ATX
Chipset Type AMD A620
Processor Socket Socket AM5
Max Processors Qty 1
Compatible Processors Ryzen (supports Ryzen 7000 Series)
Supported RAM Supported RAM
Max Size 96 GB
Technology DDR5
Bus Clock 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, AMD EXPO technology
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Realtek RTL8111H
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ PS/2 mouse
Internal Interfaces 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Type AMI
BIOS Features MSI ClickBIOS 5
Hardware Features Debug LED, MSI Steel Armor, MSI Core Boost, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost
Miscellaneous Miscellaneous
Included Accessories IO shield, m.2 screw / standoff sets
Cables Included 1 x Serial ATA cable
Software Included AIDA64 Extreme (60 days trial), MSI Center
Compliant Standards BSMI, WEEE, FCC Part 15 Class B
Width 21.1 cm
Depth 24.4 cm

Features - MSI - 7E28-001R

CPU Socket
  • Socket AM5
More Details
Product Code
04:434638
EAN Code
4711377093804
Manufacturer
MSI
