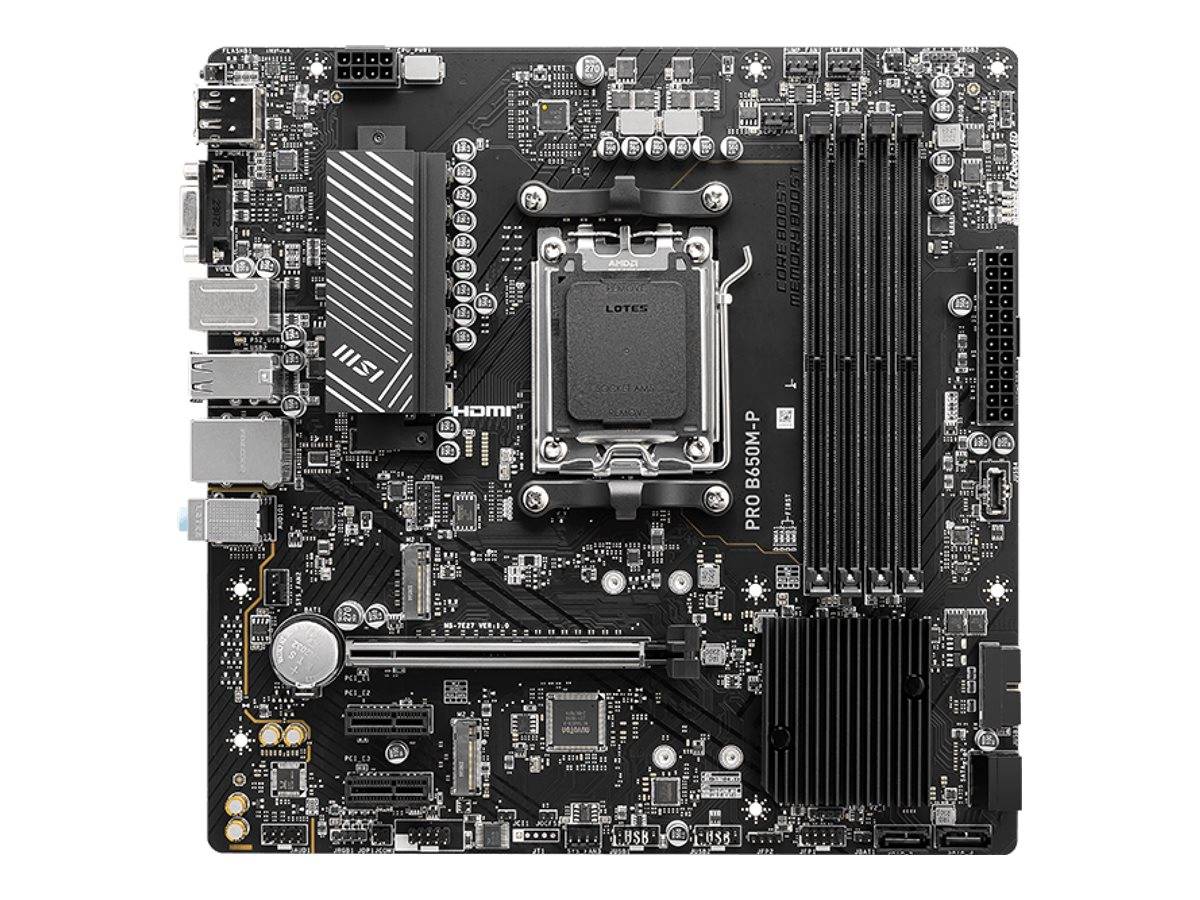

MSI PRO B650M-P / Motherboard / mini ATX / Socket AM5 / AMD B650 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7E27-001R
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - mini ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | M-Flash, UEFI BIOS |
| Hardware Features | Anti-pop function, Debug LED, 6 Layer PCB, MSI Steel Armor, 2oz Copper PCB, Water Pump Header, MSI Core Boost, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost, Frozr AI Cooling |
| Miscellaneous | Miscellaneous |
| Included Accessories | IO shield, 2 x M.2 clips |
| Cables Included | 1 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), MSI Center |
| Compliant Standards | WEEE, FCC Part 15 Class B, JIS C 0950, DisplayPort 1.4 |
| Width | 24.384 cm |
| Depth | 24.384 cm |
Features - MSI - 7E27-001R
CPU Socket
- Socket AM5
More Details
Product Code
04:434636
EAN Code
4711377100953
Manufacturer
MSI
