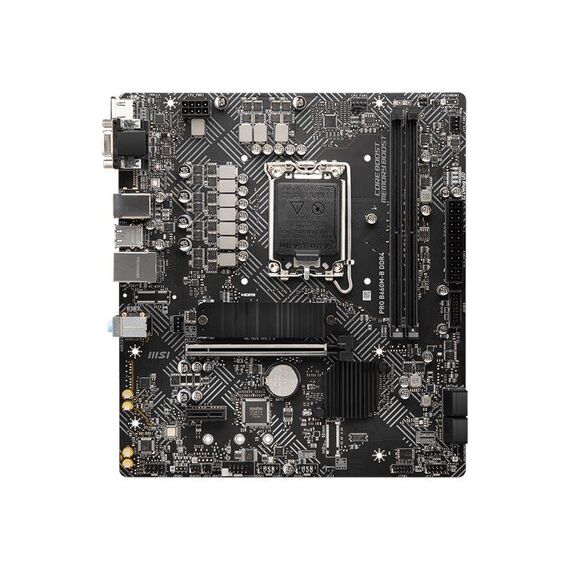

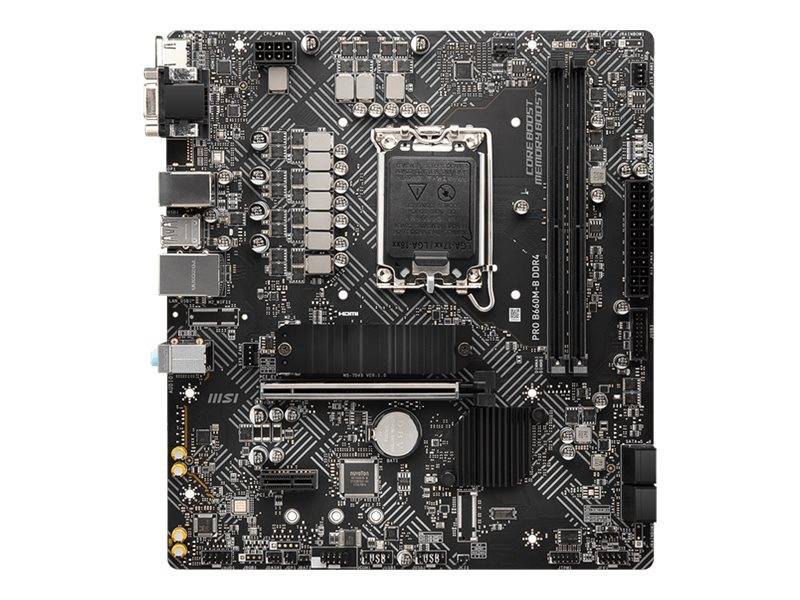

MSI PRO B660M-B DDR4 / Motherboard / micro ATX / LGA1700 Socket / B660 Chipset / USB 3.2 Gen 1 / 2.5 Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D45-004R
Please sign in so that we can notify you about a reply
Product Features
- User friendly design
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. - M.2 Shield Frozr
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. - FROZR AI cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. - EZ M.2 clip
MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly. - XL clip
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer. - EZ debug LED
Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again. - Keep out zone
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean, preventing any component contact or damage to the motherboard. - Connectivity
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. - High-bandwidth and low-latency network
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. - A huge step of DDR performance
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
Special Features
- User friendly design
- M.2 Shield Frozr
- FROZR AI cooling
- EZ M.2 clip
- XL clip
- EZ debug LED
- Keep out zone
- Connectivity
- High-bandwidth and low-latency network
- A huge step of DDR performance
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | Intel B660 |
Processor Socket | LGA1700 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
Supported RAM | Supported RAM |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | Audio |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC897 |
Compliant Standards | High Definition Audio |
LAN | LAN |
Network Controller | Realtek RTL8125BG |
Network Interfaces | 2.5 Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 |
Interfaces | 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
Features | Features |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, UEFI BIOS, ACPI 6.4 support, SMBIOS 3.4 support |
Hardware Features | Debug LED |
Miscellaneous | Miscellaneous |
Included Accessories | Case badge, IO shield, M.2 clip |
Cables Included | 2 x Serial ATA cable |
Width | 24.4 cm |
Depth | 22 cm |
Features - MSI - 7D45-004R
CPU Socket
- Socket 1700
More Details
Product Code
07:125804
EAN Code
4719072938550
Manufacturer
MSI
