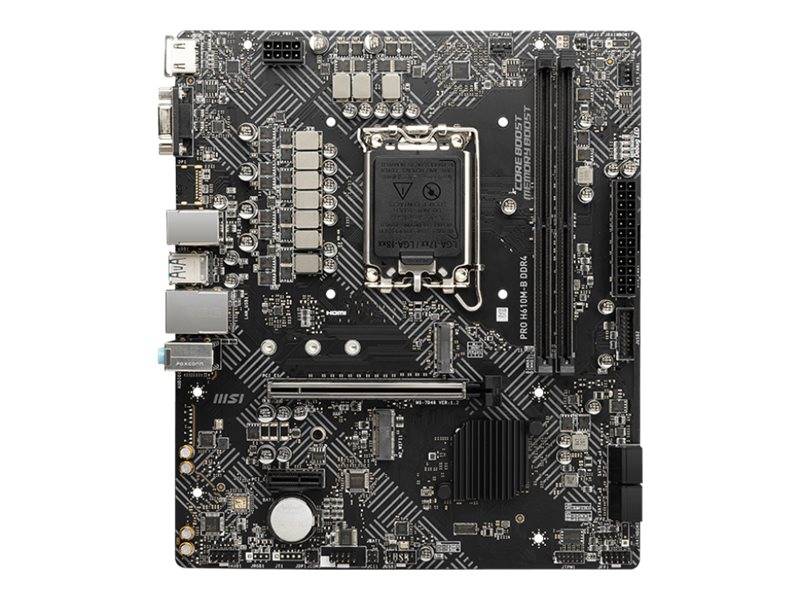

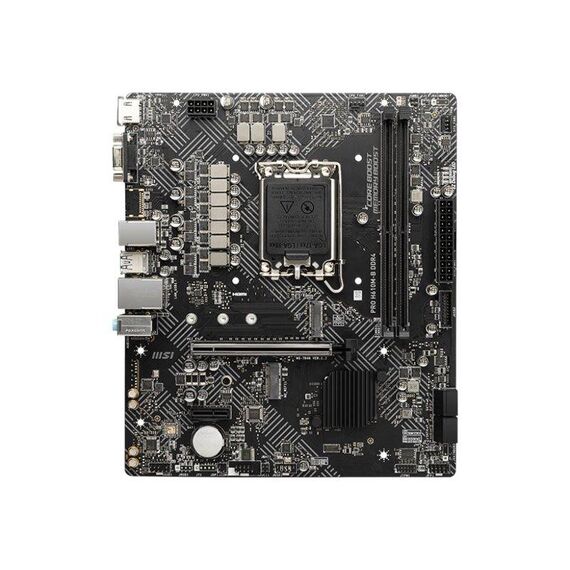

MSI PRO H610M-B DDR4 / Motherboard / micro ATX / LGA1700 Socket / H610 Chipset / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 7D46-002R

7D46-002R
104.64
113.74
(124.52 inc. VAT) You save: 9.10
Standard DeliveryStandard delivery within 3 to 8 business days.
Availability: 500 item(s)
Find similar
Delivery
Payment options
Product Code03:190366 EAN Code4719072924980 ManufacturerMSI CPU SocketSocket 1700

Product Features

  • FROZR AI Cooling
    Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
  • Fully controllable in BIOS and software
    MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
  • Low latency gaming LAN powered by Intel
    Stay connected with Intel LAN, optimized for stable internet throughput ideal for championship level online plays.
  • Optimize network for lower latency
    MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
  • Lightning Gen 4 PCI-E
    MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
  • Extreme stability & compatibility testing
    MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. The memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
  • Core Boost
    Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Special Features

  • FROZR AI Cooling
  • Fully controllable in BIOS and software
  • Low latency gaming LAN powered by Intel
  • Optimize network for lower latency
  • Lightning Gen 4 PCI-E
  • Extreme stability & compatibility testing
  • Core Boost

Product Specification

Product Type Motherboard - micro ATX
Chipset Type Intel H610
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM Supported RAM
Max Size 128 GB
Technology DDR4
Bus Clock 2133 MHz, 2666 MHz, 2933 MHz, 3200 MHz
Supported RAM Integrity Check Non-ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Audio Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC892/ALC897
Compliant Standards High Definition Audio
LAN LAN
Network Controller Intel I219V
Network Interfaces Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (for wireless module) ¦ 1 x PCIe 3.0 x1
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
RAID Features Intel Smart Response Technology
Interfaces 1 x HDMI ¦ 1 x VGA ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
Features Features
BIOS Features MSI ClickBIOS 5
Hardware Features MSI Audio Boost, anti-pop function, Debug LED, MSI Steel Armor, Double ESD Protection, MSI Core Boost
Miscellaneous Miscellaneous
Included Accessories I/O back plate, case badge, M.2 clip
Cables Included 2 x Serial ATA cable
Width 24.4 cm
Depth 21.1 cm

Features - MSI - 7D46-002R

CPU Socket
  • Socket 1700
More Details
Product Code
03:190366
EAN Code
4719072924980
Manufacturer
MSI
