NEC ME383W / ME Series / 3LCD projector / 3800 ANSI lumens / WXGA (1280 x 800) / 16:10 / LAN / business | 60005220
60005220
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Minimized cost of ownership - due to long lamp life and filter exchange intervals
- Versatile and mobile - compact and light-weight with HDMI and integrated 16W speaker
- Display content that demands attention - with WXGA resolution and superb brightness levels and color ranges, your viewers will enjoy an outstanding visual experience
- Wide array of flexible application scenarios - thanks to multi-source conferencing and efficient split-screen operation supported by a wide future-ready range of digital connectivity
- Future-proof input management - thanks to 4K@30 Hz input processing
Product Specification
| Device Type | 3LCD projector |
| Built-in Devices | Speaker, keypad |
| Networking | Ethernet |
| Projector | Projector |
| Brightness | 3800 ANSI lumens |
| Brightness (Reduced) | 3600 ANSI lumens |
| Contrast Ratio | 16000:1 |
| Image Size | 76 cm - 762 cm |
| Projection Distance | 0.94 m - 11.59 m |
| Throw Ratio | 1.2 - 2.1:1 |
| Resolution | WXGA - WXGA (1280 x 800) (native) / 3840 x 2160 (resized) |
| Native Aspect Ratio | 16:10 |
| Max Sync Rate (V x H) | 120 Hz x 100 kHz |
| Bulb type | 225 Watt |
| Bulb life cycle | Up to 10000 hour(s) - normal mode ¦ Up to 20000 hour(s) - economic mode |
| Controls & Adjustments | Keystone correction |
| Features | Color Management System, wall colour correction, Deep Color, Crestron RoomView, DICOM Simulation Mode, Direct Power Off, Auto Power Off, Digital Zoom, auto power on, USB Viewer, Carbon Savings Meter, USB Display, Eco Mode, Virtual Remote, Auto Eco Mode, High Altitude Mode, Quick On/Off, Lip sync, Freeze, ID set |
| Lens | Lens |
| Focus Type | Manual |
| Lens Aperture | F/1.7-2.2 |
| Zoom Type | Manual |
| Zoom Factor | 1.7x |
| Keystone Correction Direction | Horizontal, vertical |
| Vertical Keystone Correction | -30 / +30 |
| Horizontal Keystone Correction | -30 / +30 |
| Video Input | Video Input |
| TV System | NTSC, SECAM, PAL, PAL 60 |
| Video Interfaces | VGA, HDMI, component video, composite video |
| LAN and Wireless Image Transferring Protocols | Wired LAN |
| Speakers | Speakers |
| Type | Integrated |
| Sound Output Mode | Mono |
| Output Power / Channel | 16 Watt |
| Speakers | 1 x mixed channel |
| Expansion / Connectivity | Expansion / Connectivity |

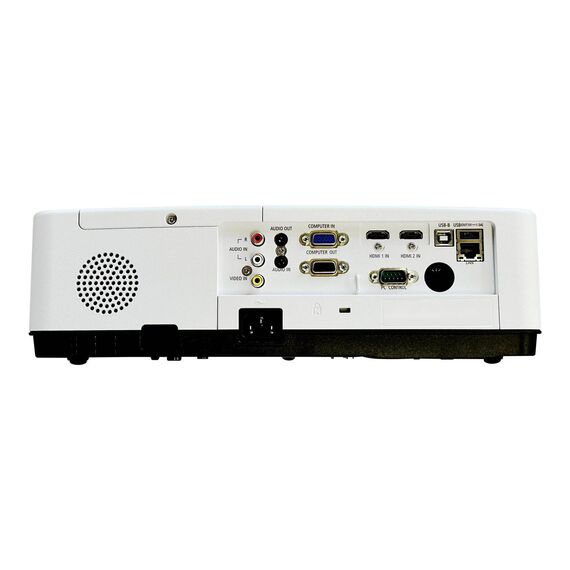

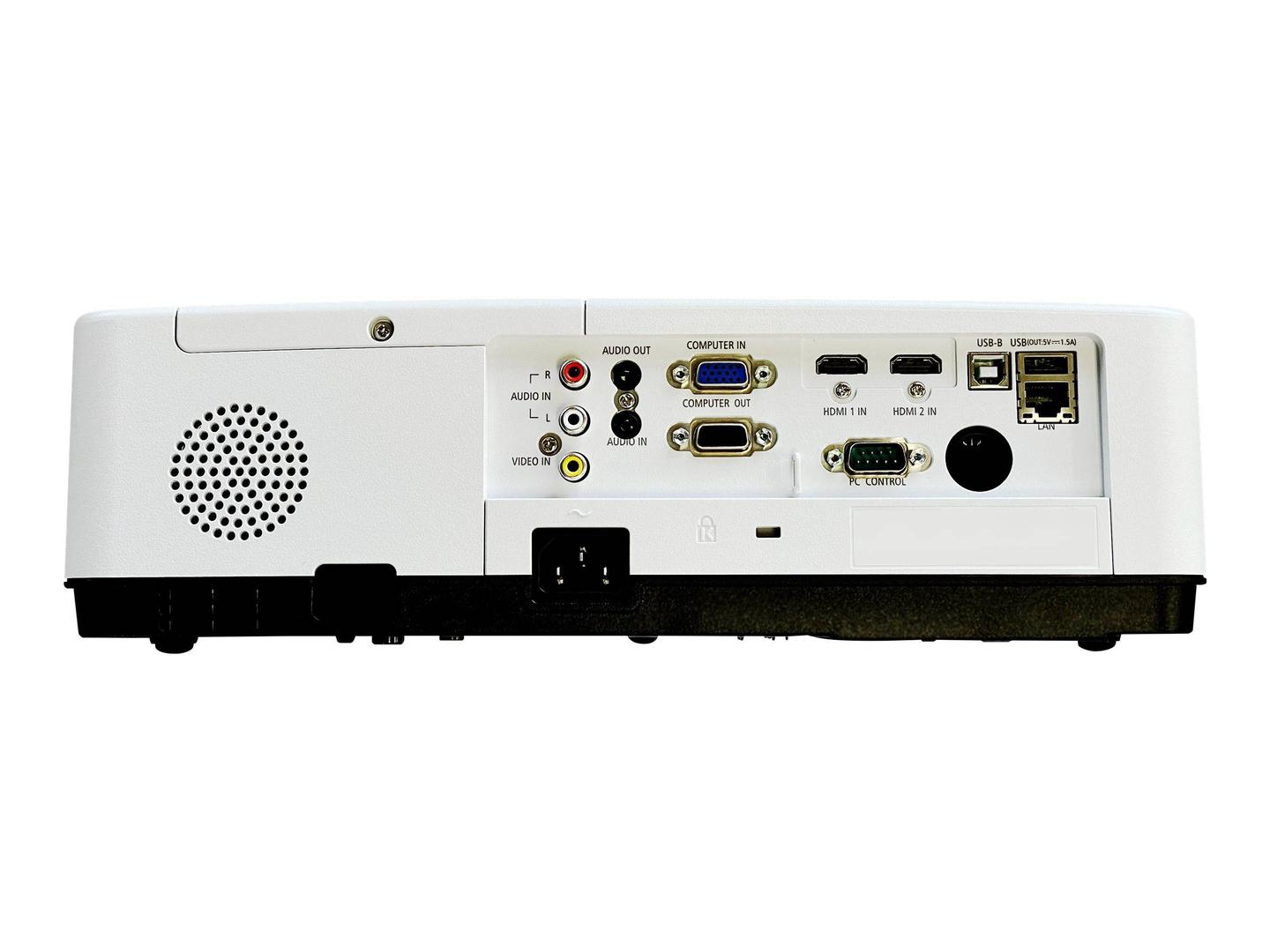

| Interfaces | 1 x VGA / component video input - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-in - mini-phone stereo 3.5 mm ¦ 2 x HDMI - 19 pin HDMI Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x composite video input - RCA ¦ 1 x audio line-in - RCA x 2 ¦ 1 x network - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Lens cover, remote control, security sticker |
| Cables Included | 1 x signal cable - 1.8 m |
| Security Features | Security lock slot (cable lock sold separately), password protection, security bar, keypad lock |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, WEEE, ERP, EAC |
| Pricing Type | Business |
| Power | Power |
| Power Source | AC |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 288 Watt |
| Power Consumption Stand by | 0.45 Watt |
| Software / System Requirements | Software / System Requirements |
| Software Included | NaViSet Administrator 2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 34.5 cm |
| Depth | 26.1 cm |
| Height | 10.46 cm |
| Weight | 3.2 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | EMEA warranty - 3 years ¦ Limited warranty - lamp - 6 months / 1000 hours |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% |
| Sound Emission | 37 dB |
| Sound Emission (Economic Mode) | 29 dB |
Features - NEC - 60005220
More Details
Product Code
CB04300
EAN Code
5028695614338
Manufacturer
NEC
