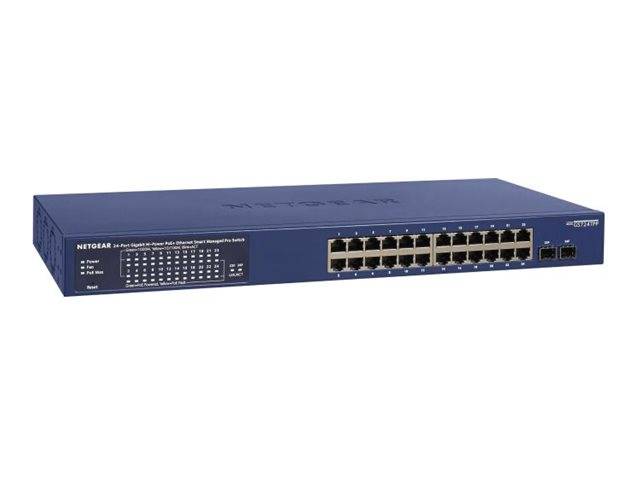

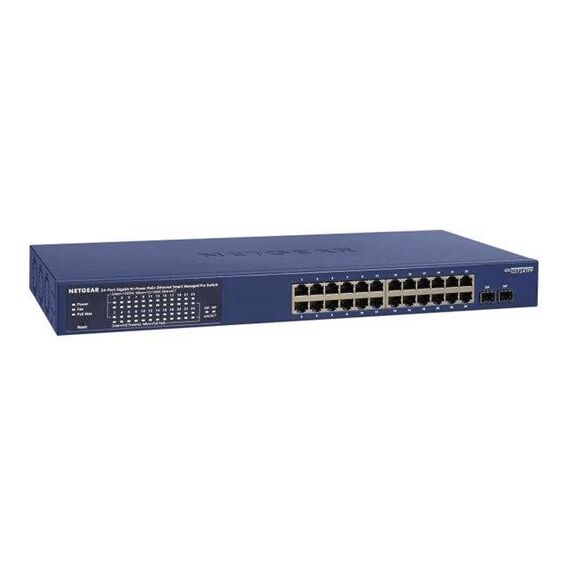

NETGEAR Smart GS724TP / Switch / L3 Lite / smart / 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / desktop, rack-mountable / PoE+ (190 W) | GS724TP-300EUS
Please sign in so that we can notify you about a reply
Product Features
- Fully-integrated cloud-manageable device
Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances, etc.) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud management mode through web browser-based user interface and go. - 1000Base-T copper Ethernet PoE+ connections
Supports high-density VoIP, surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports. - 1000Base-X fiber SFP ports
Two dedicated Gigabit SFP ports for aggregation to the network core. - Support for fiber and copper modules
Low-acoustics temperature- and load-based fan-speed control allows for quiet operation in both desktop or rack mount configuration. - Energy Efficient Ethernet (IEEE 802.3az)
Maximum power reduction for ongoing operation cost savings. - Kensington lock slot
Prevents theft, removal, or tampering when used for desktop deployment.
Special Features
- Fully-integrated cloud-manageable device
- 1000Base-T copper Ethernet PoE+ connections
- 1000Base-X fiber SFP ports
- Support for fiber and copper modules
- Energy Efficient Ethernet (IEEE 802.3az)
- Kensington lock slot
Product Specification
| Device Type | Switch - 24 ports - L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 190 W |
| Performance | Bandwidth: 52 Gbps ¦ Forwarding rate (64-byte packets): 38.6 Mpps ¦ 1 Gbps copper latency (64-byte packets): 3.749 µs ¦ 1 Gbps fibre latency (64-byte packets): 3.129 µs |
| Capacity | Packet buffer size: 0.5 MB ¦ Priority queues: 8 ¦ Multicast groups: 128 ¦ Virtual interfaces (VLANs): 64 ¦ DHCP snooping entries: 256 ¦ ACLs per system: 100 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | 10KB |
| Routing Protocol | IGMP, static IP routing, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
| Encryption Algorithm | TLS 1.0 |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, IGMP snooping, DoS attack prevention, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, DHCP snooping, QoS, MLD snooping, IPv4 support, LACP, DHCP client, 512KB packet buffer, GVRP, dual firmware images, loop prevention, static routing, CoS, SP, cloud managed, DSCP support, 2 fans, Protocol-based VLANs support, cable test, ICMP Router Discovery Protocol (IRDP), IGMP querier, DNS client, Voice VLAN, ZTP, EEE, WRR, Auto VoIP, VLAN Tagging, port trunking, Advanced QoS, LAG, security slot (Kensington security lock compatible) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor | MIPS 4Kec: 500 MHz |
| RAM | 128 MB |
| Flash Memory | 32 MB |
| Status Indicators | Port transmission speed, power, PoE, fan |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 24 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| Included Accessories | Foot pad set |
| Rack Mounting Kit | Included |
| MTBF | 1,051,375 hours |
| Compliant Standards | BSMI CNS 13438 Class A, EN 60950, UL 1950, CB, CCC, LVD, RCM, EN 61000-3-3:2013, EN 55024:2010, FCC CFR47 Part 15 A, AS/NZS 60950-1:2015, EN 55032, ISED, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, cUL 1950, ANSI C63.4:2014, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013 |
| Localisation | Europe |
| Dimensions & Weight | Dimensions & Weight |
| Width | 44 cm |
| Depth | 20.4 cm |
| Height | 4.3 cm |
| Weight | 3.15 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 0 - 95% RH (non-condensing) |
Features - NetGear - GS724TP-300EUS
More Details
Product Code
04:459858
EAN Code
0606449162660
Manufacturer
NetGear
