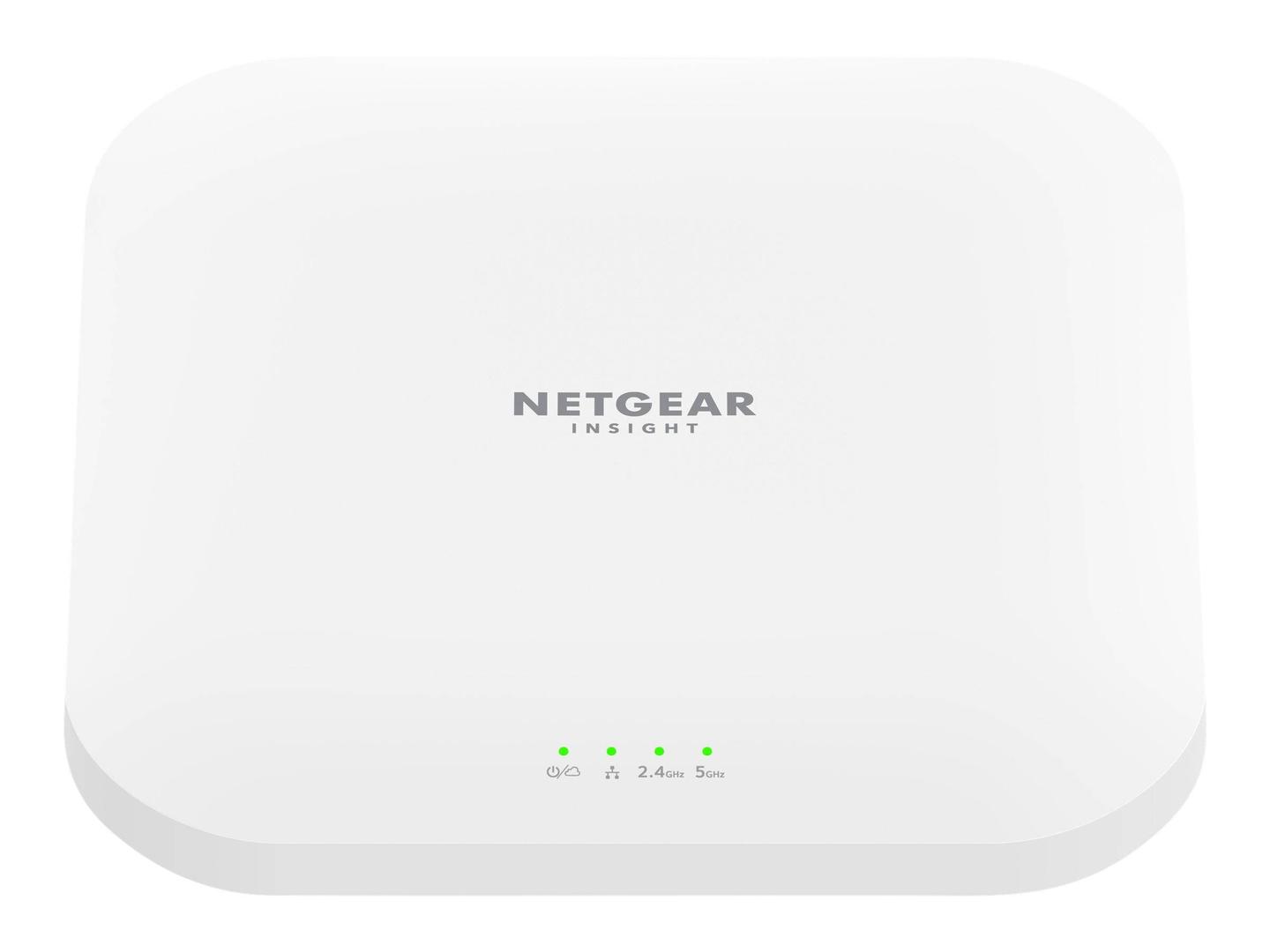

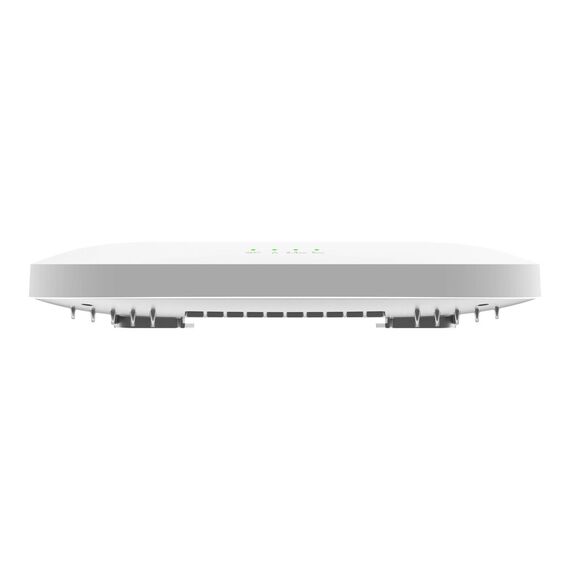

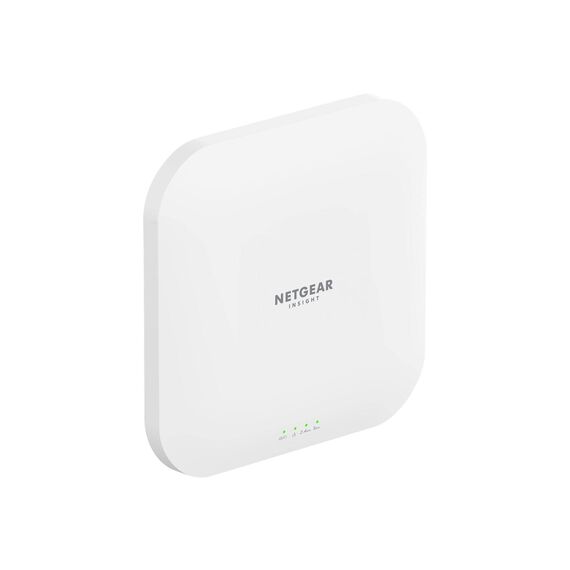

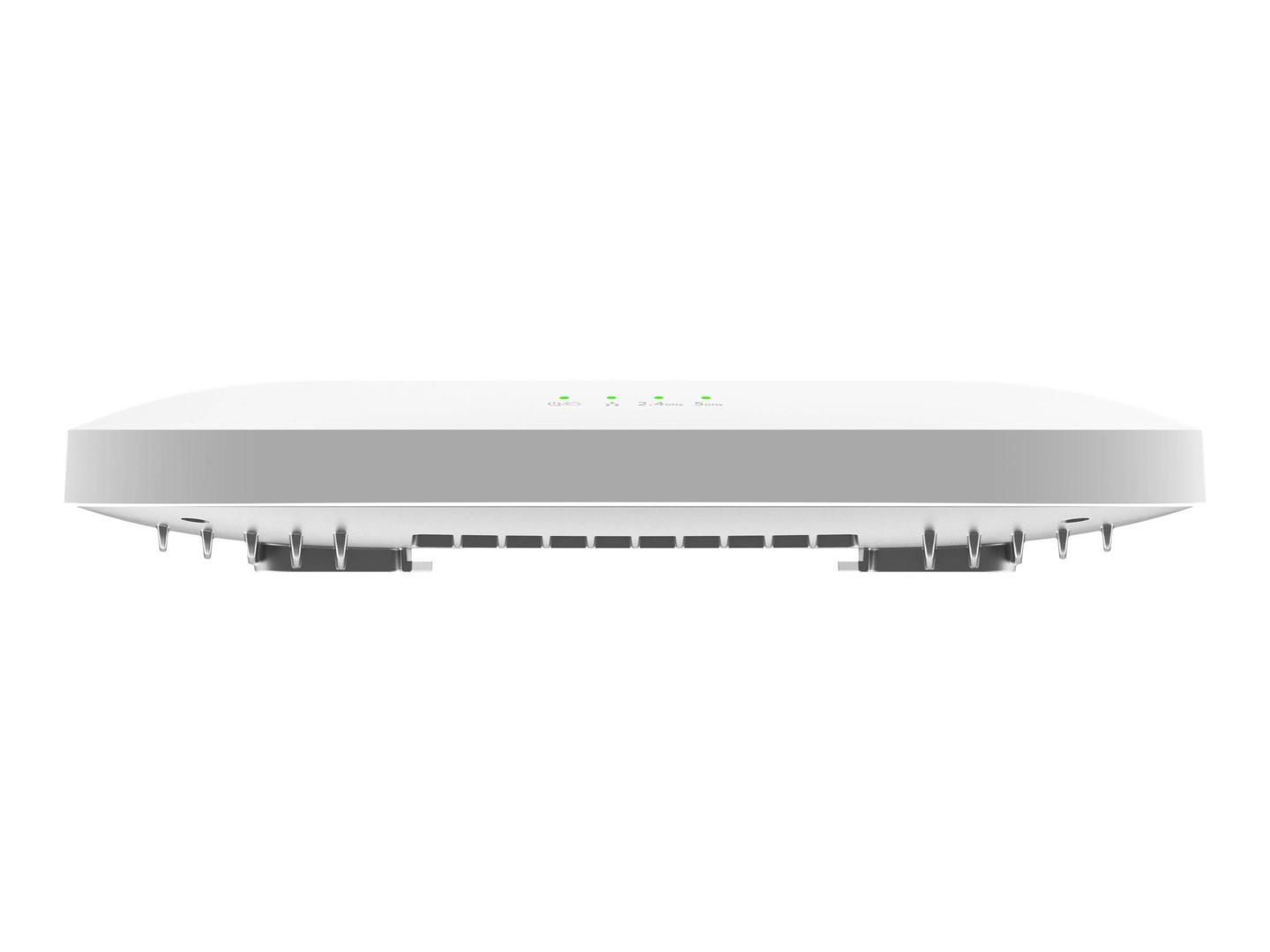

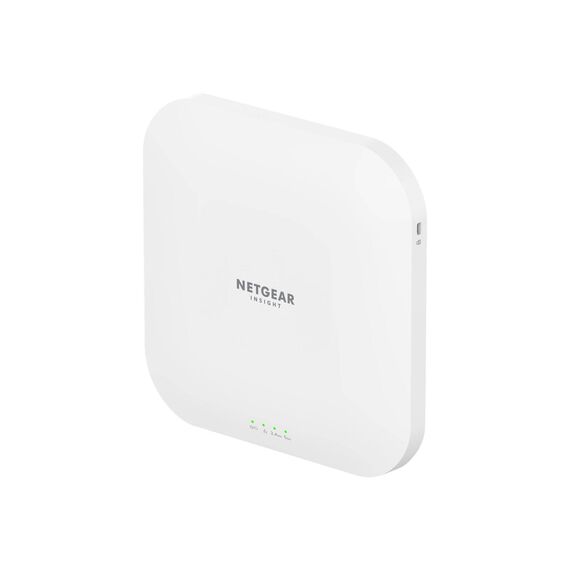

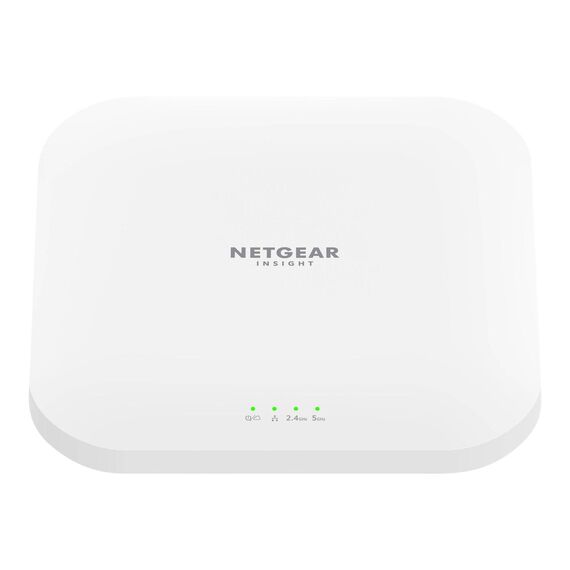

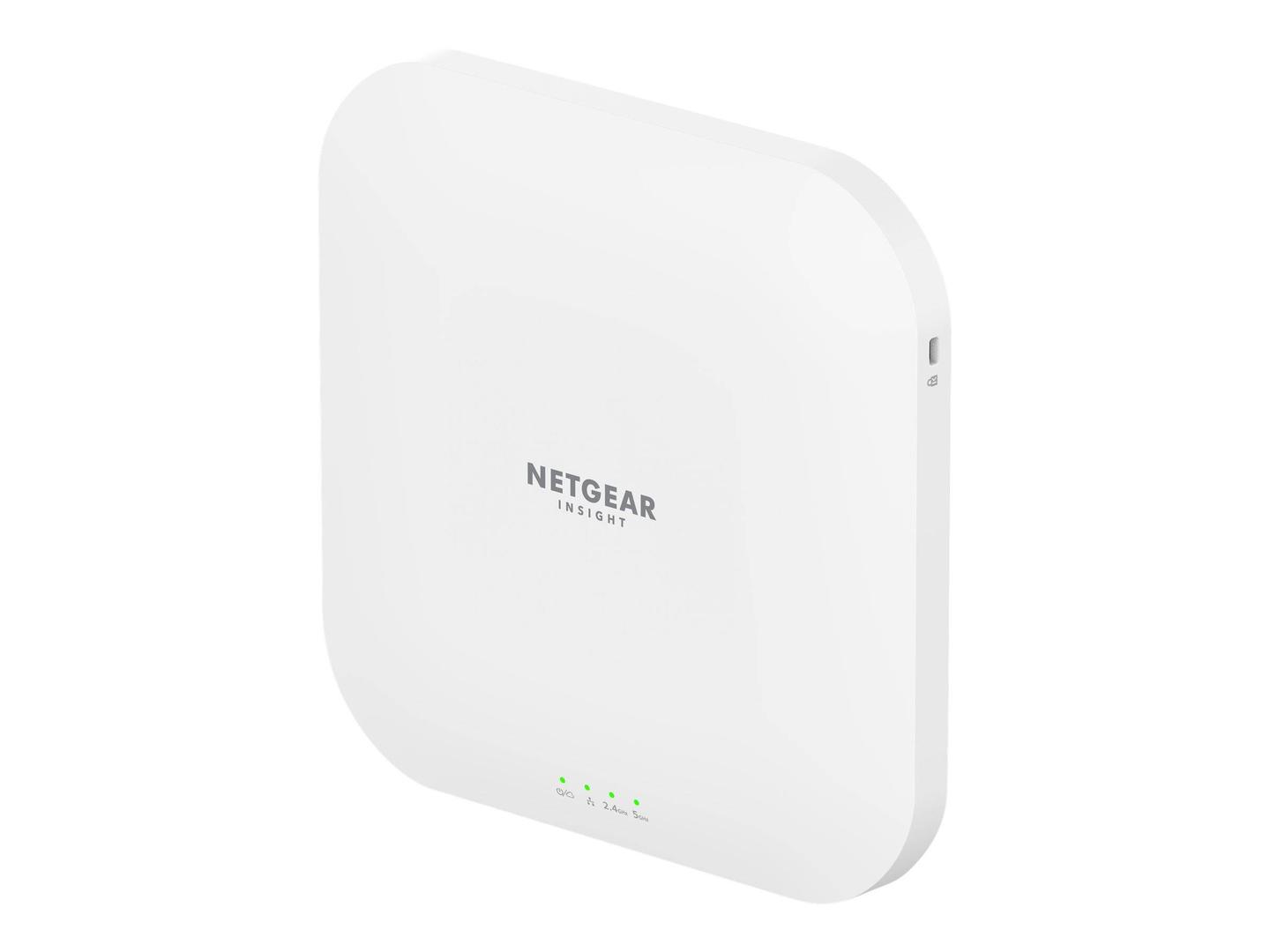

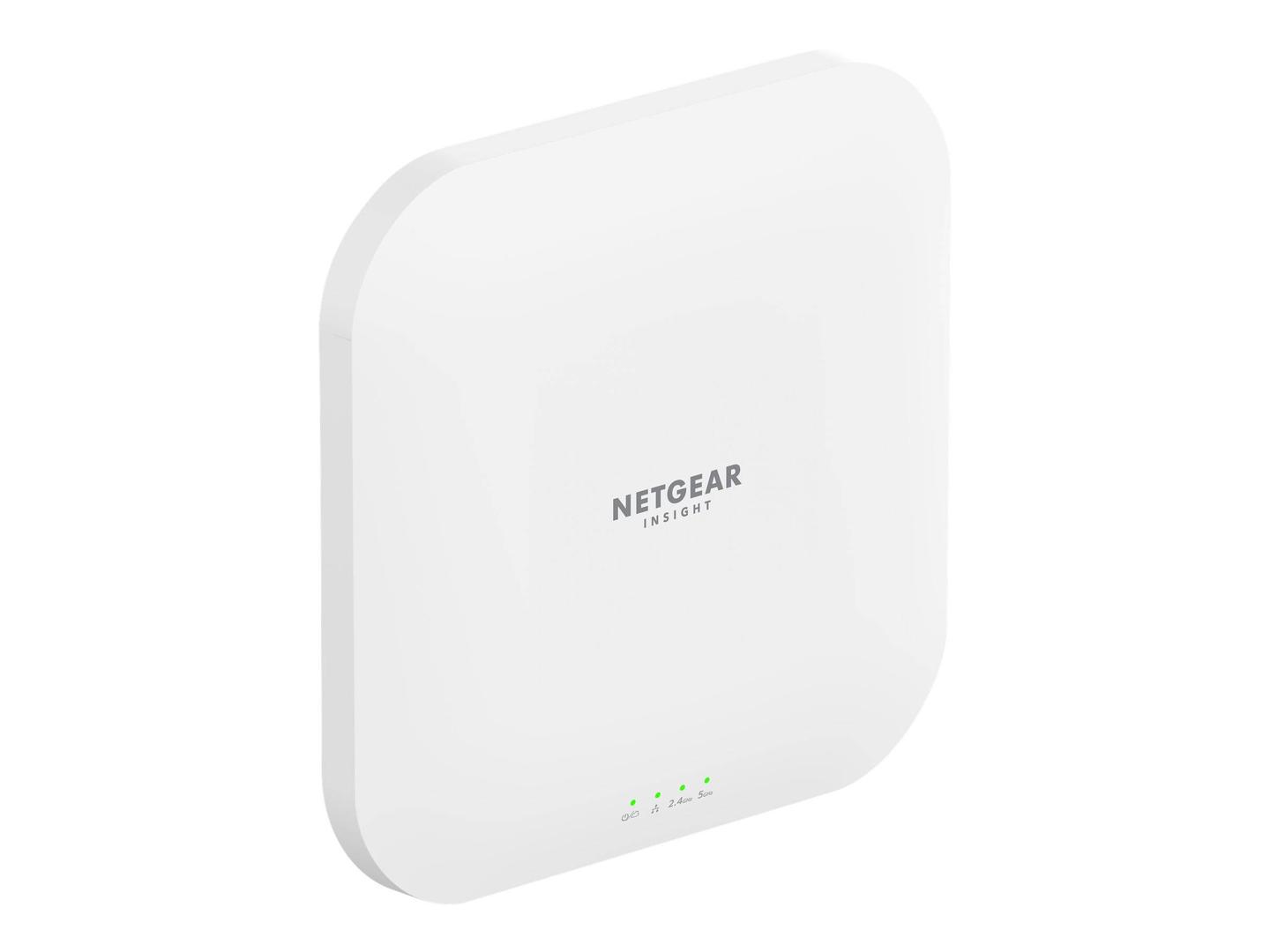

NETGEAR Insight WAX620 / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / wall / ceiling mountable | WAX620-100EUS
Please sign in so that we can notify you about a reply
Special Features
- Business-class Wi-Fi based on next-generation 802.11ax Wi-Fi 6 technology on both 5GHz and 2.4GHz bands
- Dual-band 4x4 (2.4GHz and 5GHz): eight streams of data for an aggregate throughput of up to 3.6 Gbps
- Enterprise security and Enhanced Open security, such as WAP3, WPA Enterprise, 8x SSID and VLAN
- Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel efficiency and reduction of interference
- Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
- Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in Wi-Fi 6 client devices
- Beamforming+; advanced 6th generation Wi-Fi technology such as up and downstream MU-MIMO
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Indoor |
| Width | 20.57 cm |
| Depth | 20.57 cm |
| Height | 3.43 cm |
| Weight | 783 g |
| Localisation | Europe |
| Networking | Networking |
| Form Factor | Wall / ceiling mountable |
| Connectivity Technology | Wireless |
| Line Coding Format | OFDM, OFDMA |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax |
| Spread Spectrum Method | OFDM, OFDMA |
| Remote Management Protocol | RADIUS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum throughput (5 GHz): 2400 Mbps ¦ Maximum throughput (2.4 GHz): 1200 Mbps |
| Capacity | Maximum number of users: 256 ¦ Concurrent users: 75 ¦ SSIDs total: 8 ¦ Streams: 8 |
| Wi-Fi Rating | AX3600 |
| Status Indicators | Power, LAN, 2.4/5 GHz |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, bandwidth control, LLDP support, Captive Portal, 802.1x authentication, Beamforming+, Transmit Power Control (TPC), band steering, WDS bridge, Backhaul Technology, 4x4 MU-MIMO technology, WDS PTMP (Point to Multipoint), WDS PTP (Point to Point), WDS repeater mode, Target Wait Time (TWT), BSS Coloring, Guest Network, Neighbor AP detection, Block SSID Broadcast |
| Encryption Algorithm | SSL, TLS, PEAP, TTLS, WPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3 |
| Authentication Method | RADIUS, Extensible Authentication Protocol (EAP) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | Aerial |
| Antenna | Internal |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T (PoE+) - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall/ceiling mounting kit |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Software / System Requirements | Software / System Requirements |
| Software Included | NETGEAR Insight (1 year subscription) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 5 years - response time: next business day ¦ Technical support - 90 days |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - NetGear - WAX620-100EUS
More Details
Product Code
CB06936
EAN Code
0606449154511
Manufacturer
NetGear
