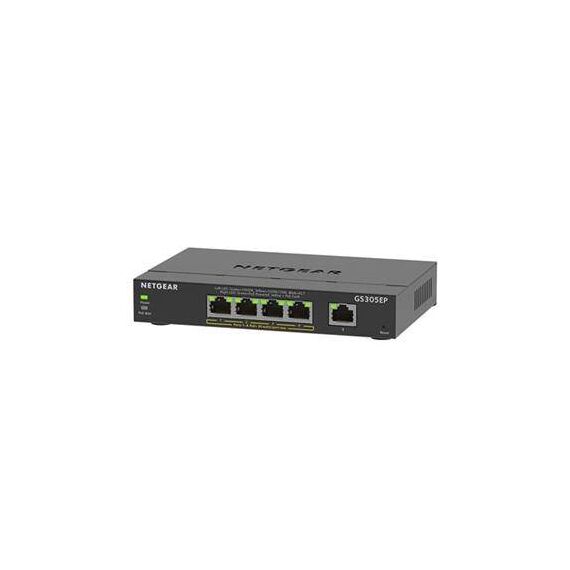

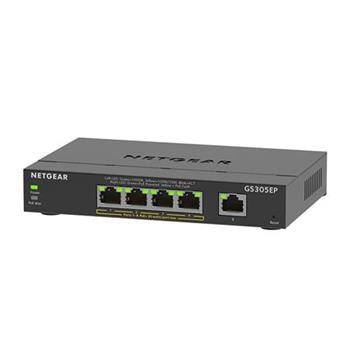

NETGEAR Switch Plus GS305EP / smart / 5 x 10/100/1000 (4 PoE+) / desktop, wall-mountable / PoE+ (63 W) | GS305EP-100PES
NETGEAR Plus GS305EP / Switch / smart / 5 x 10/100/1000 (4 PoE+) / desktop, wall-mountable / PoE+ (63 W) | GS305EP-100PES
Description
NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price. The GS305EP/GS305EPP with 4-port PoE+ and GS308EP/GS308EPP with 8-port PoE+ models support Power-over-Ethernet (PoE) and can power devices such as VoIP phones, surveillance IP cameras, wireless access points and many other applications. These Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-in-one solution, providing management and power to these applications would be ideal.
NETGEAR Plus GS305EP / Switch | GS305EP-100PES
Special Features
- Enable network configuration and management at the price point of unmanaged switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (Dos) prevention
- Troubleshoot connection issues via cable test
- Loop detection and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot
- 802.3at standard offering 30W/port
- Fanless and versatile mounting option (desktop and wall-mountable)
Product Specification
| Device Type | Switch - 5 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 (4 PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 63 W |
| Performance | Bandwidth: 10 Gbps |
| Capacity | VLANs supported: 64 ¦ Multicast groups: 128 |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | DHCP |
| Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, full duplex mode, Quality of Service (QoS), fanless, DHCP client, 192KB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support, cable test, Link Aggregation, rate limit, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Power, system, PoE, link/activity/speed, PoE max |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 |
| Power Device | External power adapter |
| Included Accessories | Rubber feet, wall mounting kit |
| MTBF | 1,164,104 hours |
| Compliant Standards | CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032 |
| Width | 15.8 cm |
| Depth | 10.1 cm |
| Height | 2.7 cm |
| Weight | 390 g |
| Service & Support | Limited warranty - 5 years ¦ Limited warranty - technical support - 90 days |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% (non-condensing) |
| Min Storage Temperature | -20 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 95% (non-condensing) |
