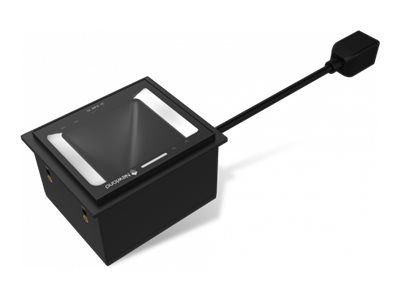

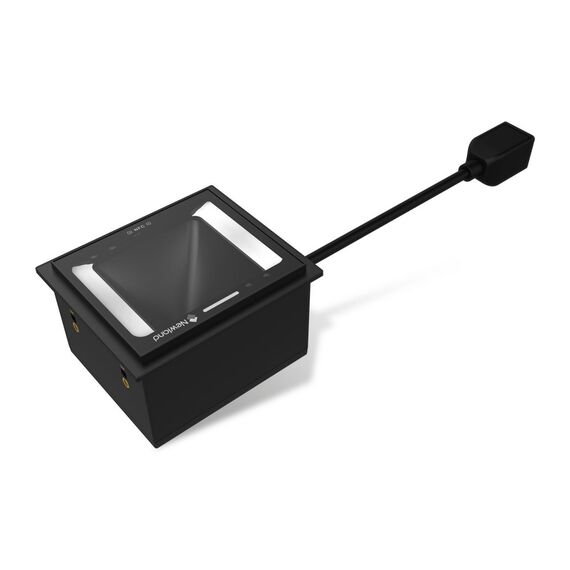

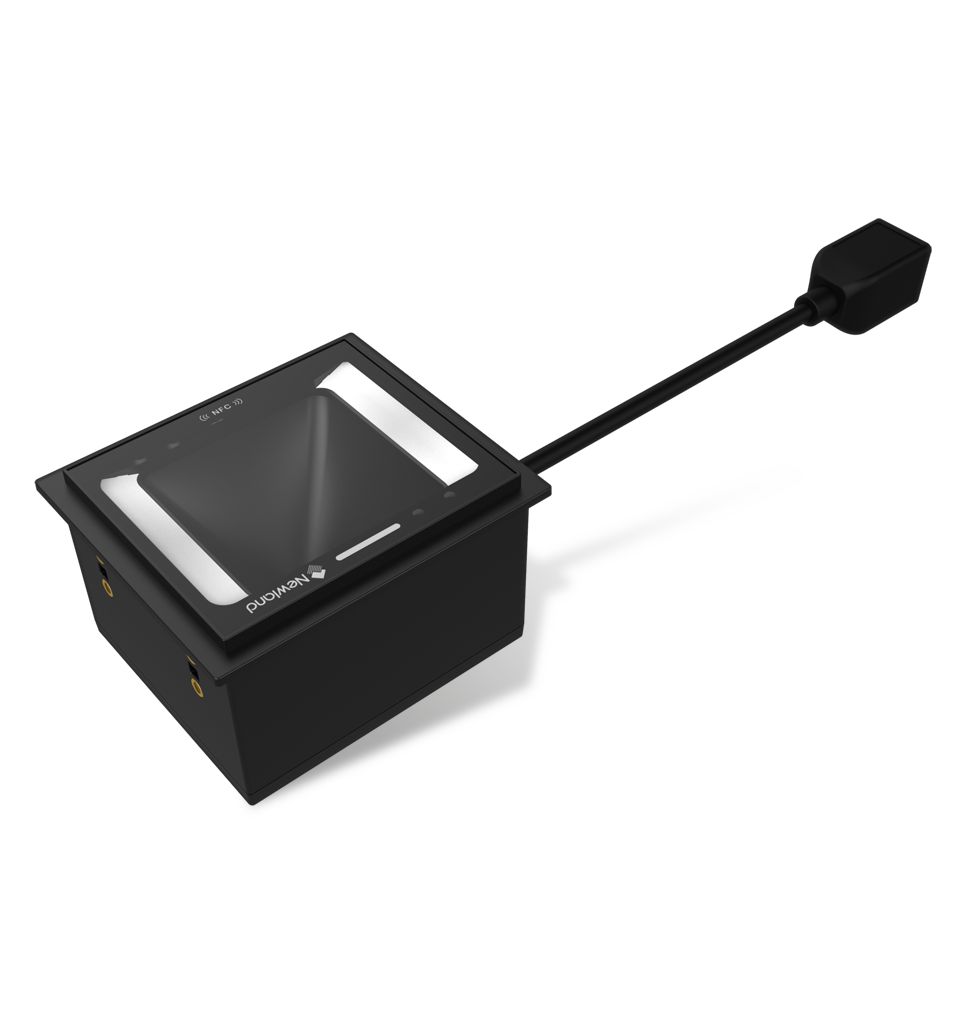

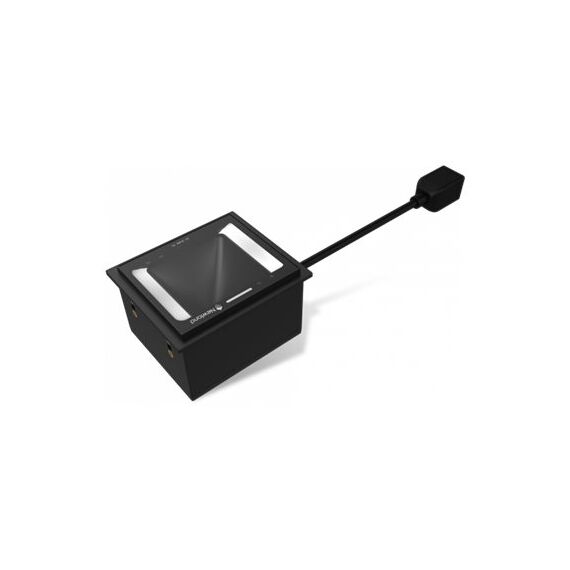

Newland FM3281 Grouper - Barcode scanner - stationary - 60 frames / sec - decoded - USB 2.0, RS-232 | NLS-FM3281-NFC-20
Newland FM3281 Grouper - Barcode scanner - stationary - 60 frames / sec - decoded - USB 2.0, RS-232 | NLS-FM3281-NFC-20
€350.88 inc. VAT
NLS-FM3281-NFC-20
Product CodeCI53167
ManufacturerYealink
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - stationary - stationary |
| Barcode | |
| Interface Type | USB 2.0, RS-232 |
| Scan Field Width | 0 mm - 310 mm |
| Scan Element Type | CMOS - white LED / infrared LED |
| Sensor Resolution | 1280 x 1088 |
| Frame Rate | 60 frames / sec |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 49, ISBT 128, ISBN, GS1 DataBar, QR code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, China Post, Japanese Post, Kix (Netherlands) Post, Plessey, ISSN, Royal Mail, Micro QR code, ITF-14, Standard 2 of 5, GS1 DataBar Composites, Intelligent Mail Barcode, EAN-8, EAN-13, GS1-128, ITF-6, Chinese Sensible Code, Code One, AIM128, Coupon Code, OCR, GM Code, Aztec |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Waterproof, dustproof, NFC pairing, glare reduction technology |
| Networking | |
| Wireless Connectivity | NFC |
| Expansion / Connectivity | |
| Interfaces | USB / RS-232 - RJ-50 |
| Miscellaneous | |
| Cables Included | 1 x RJ-50 to USB cable - detachable - 2 m |
| Compliant Standards | FCC Part 15 B, ISO 14443 type A, RoHS, IP67, EMC Class B, IEC 62471:2006, MIFARE |
| Power | |
| Voltage | 5 - 24 V |
| Electric Current Required | 220 mA (operating), 400 mA (maximum), 175 mA (standby) |
| Dimensions & Weight | |
| Width | 7.87 cm |
| Depth | 4.77 cm |
| Height | 6.77 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
