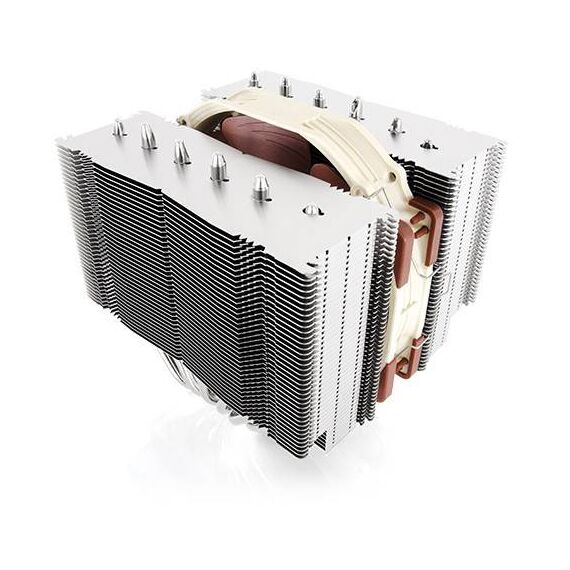

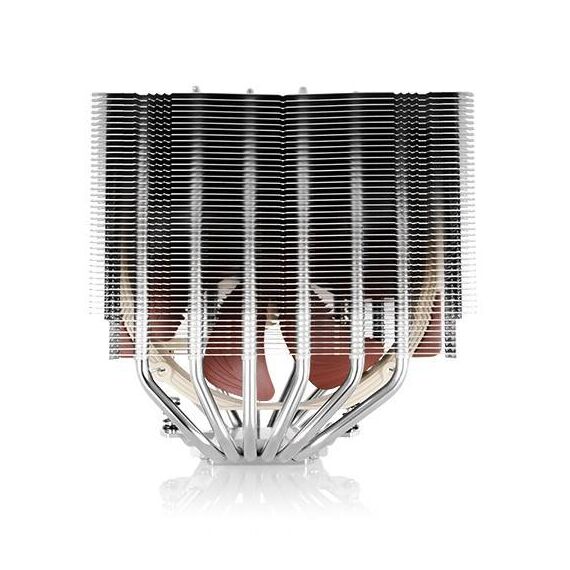

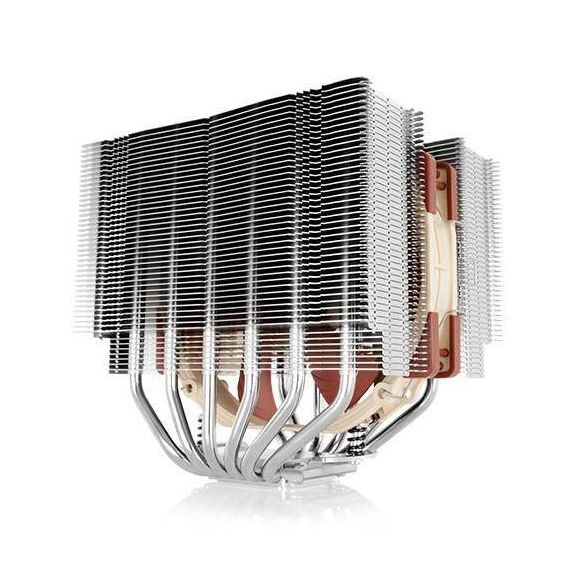

Noctua NH-D15S / Processor cooler / (for: LGA1156, AM2, AM2+, AM3, LGA1155, AM3+, LGA2011, FM1, FM2, LGA1150, FM2+, LGA2011-3, LGA1151, AM4, LGA1200) / aluminum with nickel plated copper base / 150 mm | NH-D15S
Noctua NH-D15S / Processor cooler / (for: LGA1156, AM2, AM2+, AM3, LGA1155, AM3+, LGA2011, FM1, FM2, LGA1150, FM2+, LGA2011-3, LGA1151, AM4, LGA1200) / aluminum with nickel plated copper base / 150 mm | NH-D15S
€177.94 inc. VAT
NH-D15S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- High compatibility
This cooler uses an off-set, asymmetrical layout and a single fan. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining high RAM and PCIe compatibility. - Asymmetrical layout for better PCIe compatibility
As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard. - PWM support and low-noise adapter
The NF-A15 fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, a high fan speed can be reduced using the supplied low-noise adapter for even quieter operation. - Excellent component cooling
Extending below the fin-stacks, the large NF-A15 fan not only contributes to the high CPU cooling capabilities of the NH-D15S but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance. - SecuFirm2 mounting system
Noctua's SecuFirm2 mounting systems guarantees perfect contact pressure and advanced convenience on all current sockets.
Special Features
- High compatibility
- Asymmetrical layout for better PCIe compatibility
- PWM support and low-noise adapter
- Excellent component cooling
- SecuFirm2 mounting system
Product Specification
| Product Type | Processor cooler |
| Package Content | Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, fan clips for second fan, NT-H1 high-grade thermal compound, Noctua metal case-badge, NF-A15 PWM premium fan |
| Width | 15 cm |
| Depth | 13.5 cm |
| Height | 16.5 cm |
| Weight | 1.15 kg |
| Heatsink & Fan | Heatsink & Fan |
| Compatible With | LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, Socket FM2+, LGA2011-3 Socket, LGA1151 Socket, Socket AM4, LGA1200 Socket |
| Heatsink Material | Aluminum with nickel plated copper base |
| Heatsink Dimensions | 160 mm x 150 mm x 135 mm |
| Fan Diameter | 150 mm |
| Fan Height | 25 mm |
| Fan Bearing | SSO2 bearing |
| Rotation Speed | 300-1500 rpm |
| Air Flow | 68-82.7 cfm |
| Air Pressure | 1.51-2.08 mm |
| Noise Level | 19.2 - 24.6 dBA |
| Noise & Performance Details | 19.2 dBA / 68 cfm at 1200 rpm ¦ 24.6 dBA / 82.7 cfm at 1500 rpm |
| Power Connector | 4-pin fan connector |
| Start Voltage | 12 V |
| Power Consumption | 1.56 W |
| Features | Heat pipe technology, Pulse-width modulation (PWM) support, 6 copper heatpipes, Soldered joints |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| MTBF | 150,000 hours |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 6 years |
Features - Noctua - NH-D15S
More Details
Product Code
07:400761
EAN Code
4716123315681
Manufacturer
Noctua
