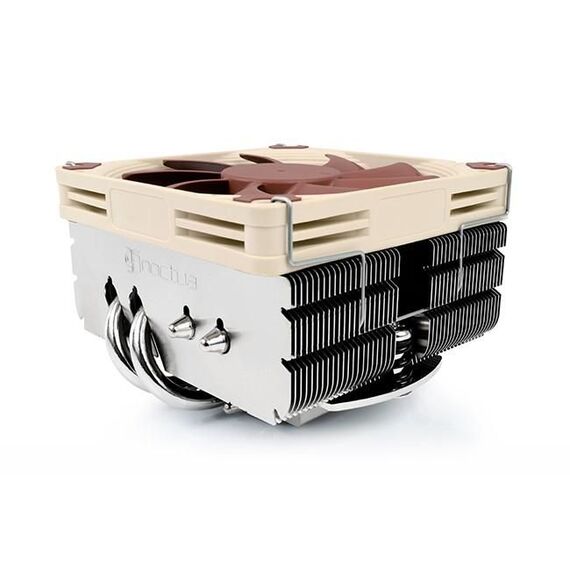

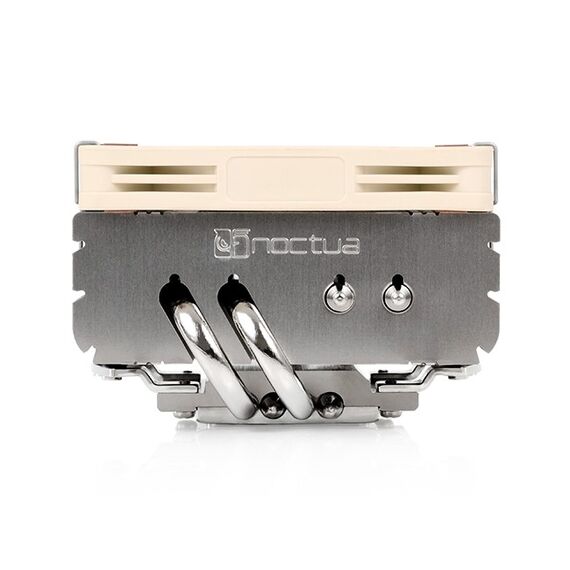

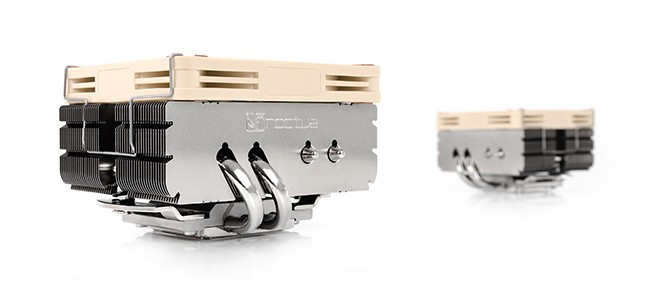

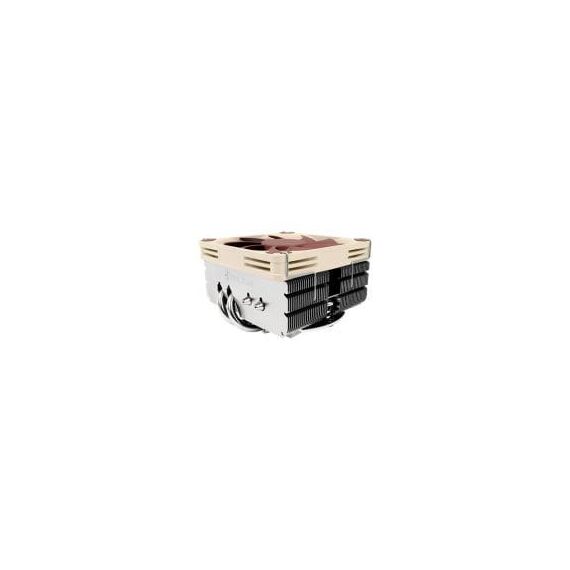

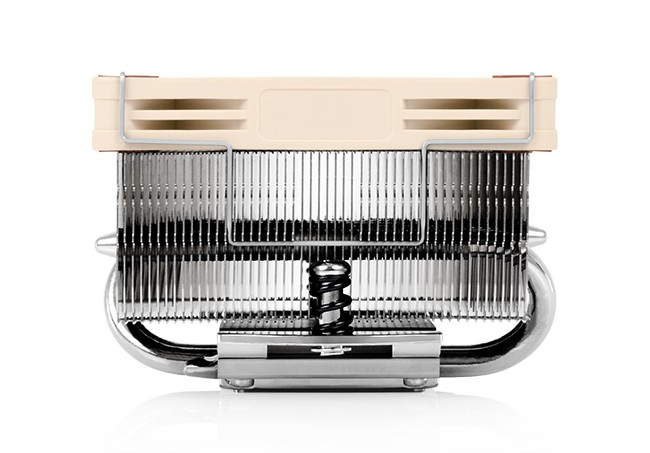

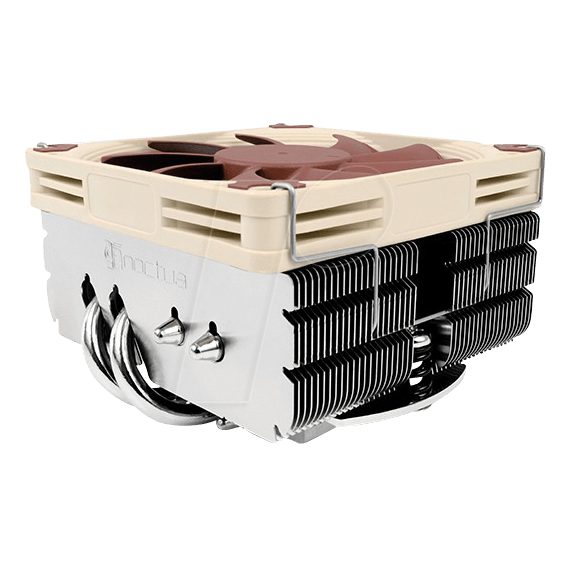

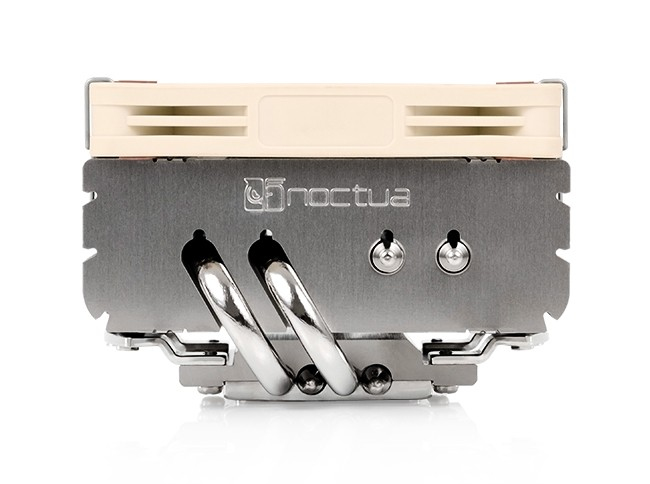

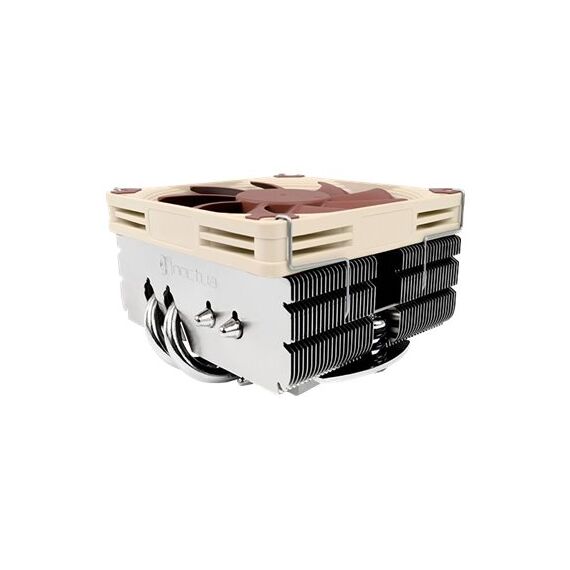

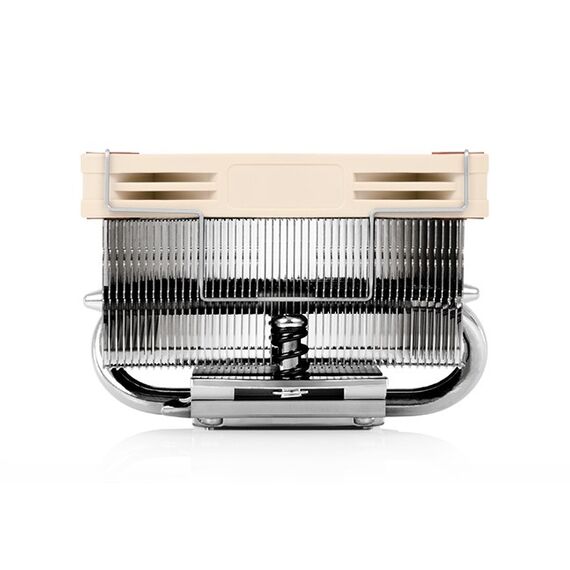

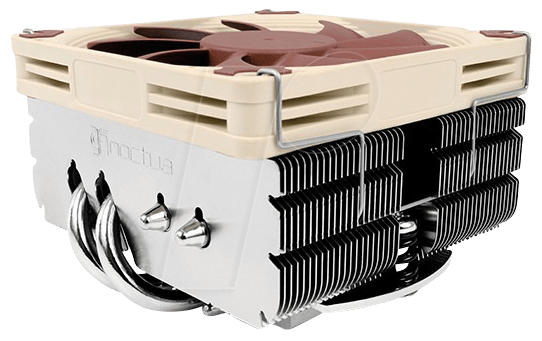

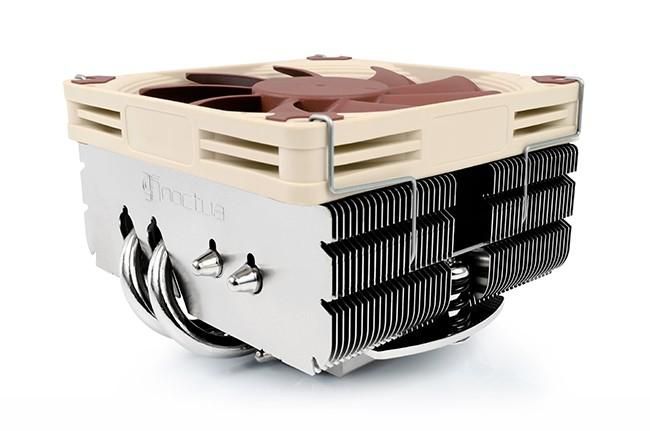

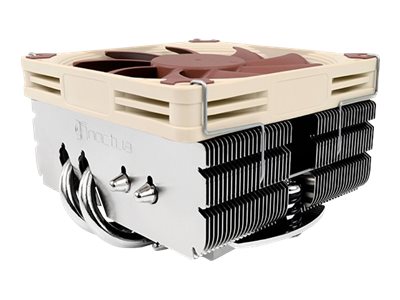

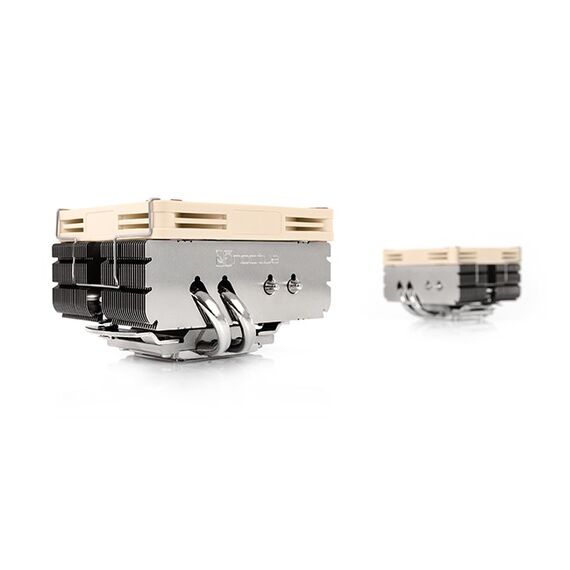

Noctua NH-L9X65 - Processor cooler - (for: LGA1156, AM2, AM2+, AM3, LGA1155, AM3+, LGA2011, FM1, FM2, LGA1150, FM2+, LGA1151, AM4, LGA1200) - aluminum with nickel plated copper base - 92 mm | NH-L9x65
NH-L9x65
Product Code04:210857
ManufacturerNoctua
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- 65 mm low profile
Due to its compact heatsink and the 14 mm thin low profile fan, the NH-L9X65 stands only 65 mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer limited clearance for CPU coolers. - Easy access to near-socket connectors
Many low-profile coolers use larger fans or heatsinks in order to achieve sufficient cooling performance, but protruding over the socket zone, they make it difficult or even impossible to reach near-socket connectors on tightly packed ITX mainboards. Thanks to its small footprint, the NH-L9X65 provides easy access to all connectors and components. - PWM excellent fan
The highly optimized fan features Noctua's frame as well as sophisticated aerodynamic design measures. The fan allows the NH-L9X65 to stay remarkably quiet. - Low-Noise Adaptor
Allowing to reduce the maximum speed of the fan from 2500 to 1800 rpm, the Low-Noise Adaptor (L.N.A.) makes it possible to achieve near-silent setups. - NT-H1 thermal compound
Noctua's NT-H1 is a proven solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
Special Fetures
- 65 mm low profile
- Easy access to near-socket connectors
- PWM excellent fan
- Low-Noise Adaptor
- NT-H1 thermal compound
Product Specification
| Product Type | Processor cooler |

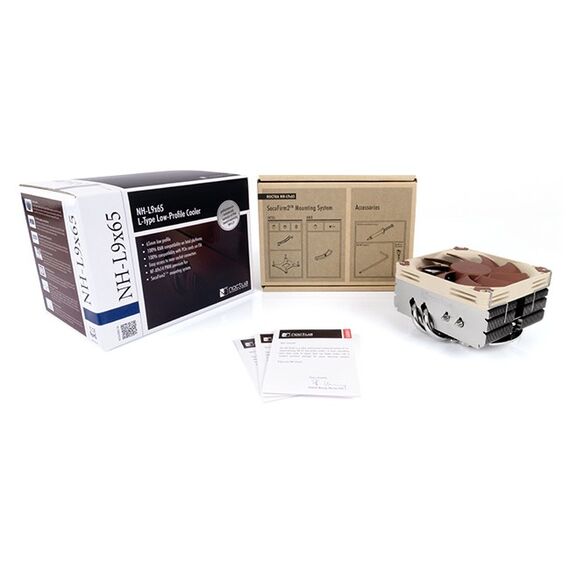

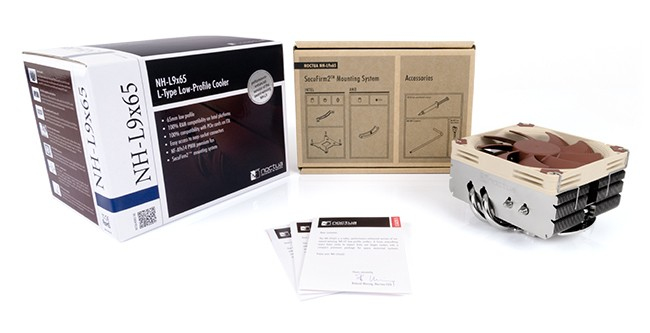

| Package Content | Low-Noise Adaptor (L.N.A.), SecuFirm2 Mounting Kit, NT-H1 thermal paste, Noctua metal case-badge |
| Width | 9.5 cm |
| Depth | 9.5 cm |
| Height | 6.5 cm |
| Weight | 413 g |
| Heatsink & Fan | |
| Compatible With | LGA1156 Socket, Socket AM2, Socket AM2+, Socket AM3, LGA1155 Socket, Socket AM3+, LGA2011 Socket, Socket FM1, Socket FM2, LGA1150 Socket, Socket FM2+, LGA1151 Socket, Socket AM4, LGA1200 Socket |
| Heatsink Material | Aluminum with nickel plated copper base |
| Heatsink Dimensions | 95 mm x 95 mm x 51 mm |
| Fan Diameter | 92 mm |
| Fan Height | 14 mm |
| Fan Bearing | SSO2 bearing |
| Rotation Speed | 600-2500 rpm |
| Air Flow | 33.8 cfm |
| Air Pressure | 2.11 mm |
| Noise Level | 23.6 dBA |
| Power Connector | 4-pin fan connector |
| Rated Voltage | 12 V |
| Power Consumption | 2.52 W |
| Features | 4 copper heatpipes, flow acceleration channels |
| Miscellaneous | |
| MTBF | 150,000 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 6 years |
