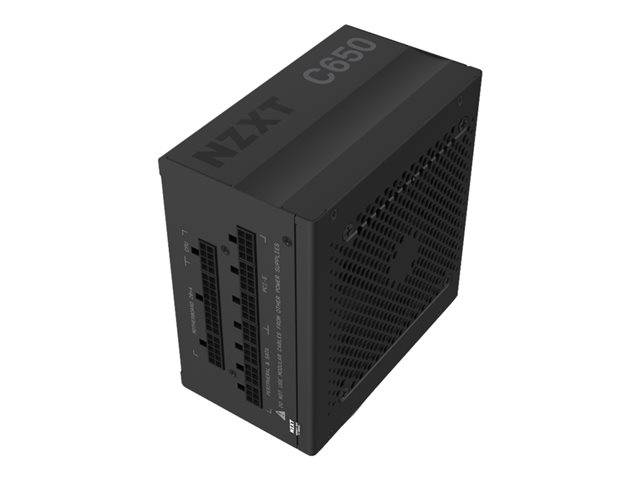

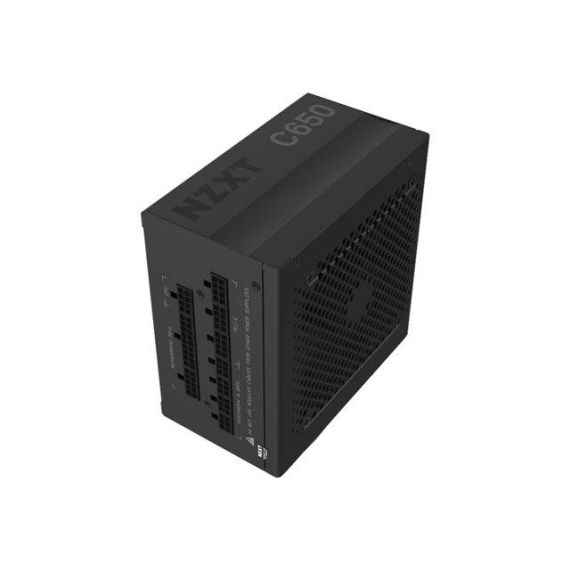

NZXT C-Series C650 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 650 Watt / active PFC / Europe | NP-C650M-EU
NZXT C-Series C650 / Power supply (internal) / ATX12V 2.4/ EPS12V 2.92 / 80 PLUS Gold / AC 100-240 V / 650 Watt / active PFC / Europe | NP-C650M-EU
Description
The C Series power supply from NZXT features safe, reliable power while ensuring optimal efficiency and quieter performance. The C Series power supplies deliver both peace of mind and clean, reliable power to your PC gaming system.
NZXT C-Series C650 / Power supply (internal) | NP-C650M-EU
Special Features

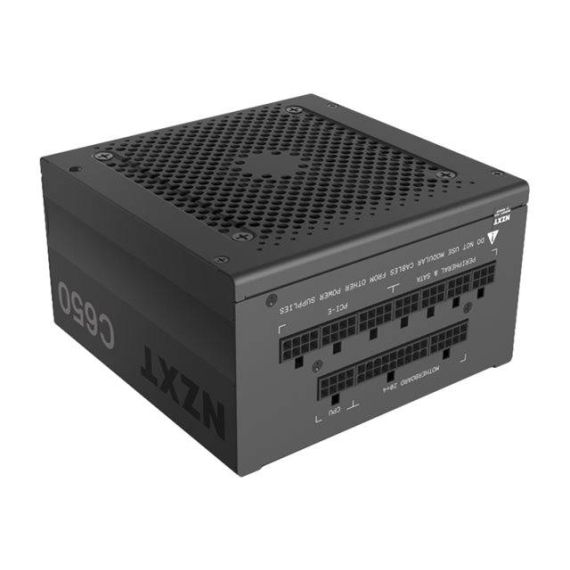

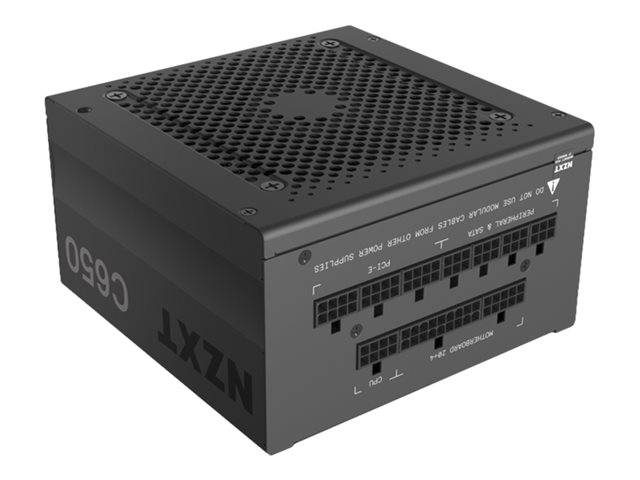

- The modular design lets you use only the cables you need, ensuring easier installation, and less clutter
- The sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity

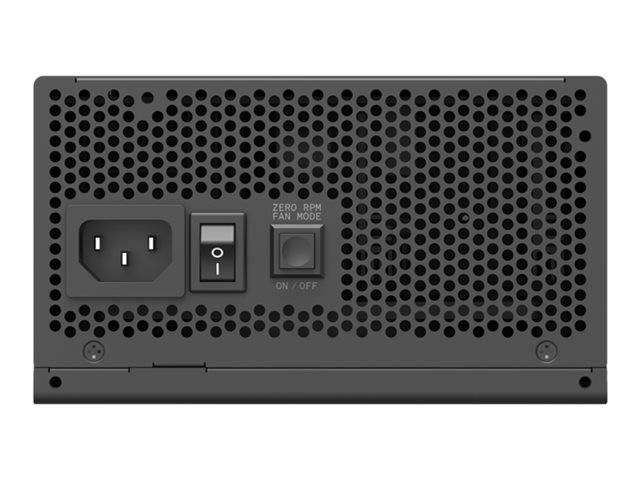

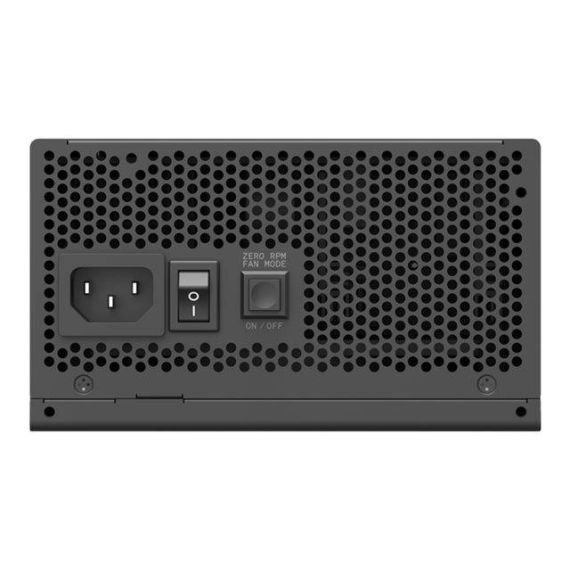

- A push of a button enables Zero RPM Fan mode, silencing the fan under low-load conditions
- When needed, the 120 mm fluid-dynamic bearing fan spins up to efficiently cool the PSU, keeping your system stable and running through even the most intense gaming session
Product features
- Silent operation
A push of a button enables Zero RPM Fan mode, silencing the fan under low-load conditions. When needed, the 120 mm fluid-dynamic bearing fan spins up to efficiently cool the PSU, keeping your system stable and running through even the most intense gaming session. - Built for builders
The modular design lets you use only the cables you need, ensuring easier installation, and less clutter. The sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity.
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Specification Compliance | ATX12V 2.4/ EPS12V 2.92 |
PSU Form Factor | ATX |
Localisation | Europe |
Input Voltage | AC 100-240 V |
Frequency Required | 50 - 60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power |
Output Voltage | +3.3, +5, ±12 V |
Power Capacity | 650 Watt |
Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 54 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
Efficiency | 87% at 20% Load (115 VAC), 90% at 50% Load (115 VAC), 87% at 100% Load (115 VAC) |
Power Factor (PF) | 0.99 |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
MTBF | 100,000 hours |
Cooling System | 120 mm fan |
Features | Sleeved cables, Zero RPM fan mode, fluid dynamic bearing cooling fan, fully modular |
Compliant Standards | TUV, BSMI, CB, CCC, FCC, RoHS, EAC, China RoHS, RCM, cTUV |
Service & Support | Limited warranty - 10 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Sound Emission | 32.3 dBA |
Width | 15 cm |
Depth | 15 cm |
Height | 8.6 cm |
