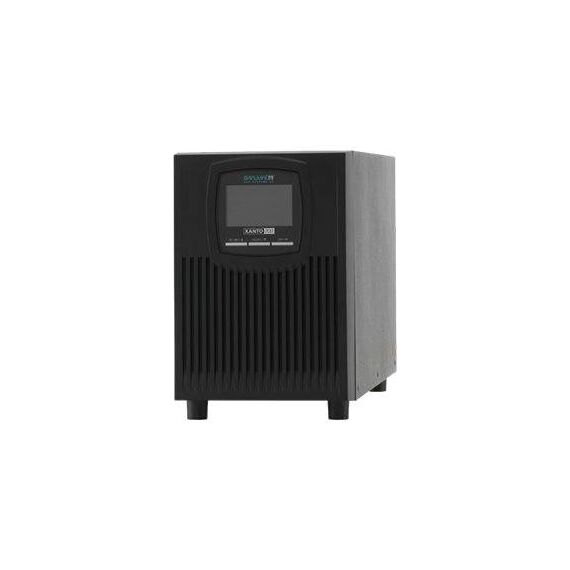

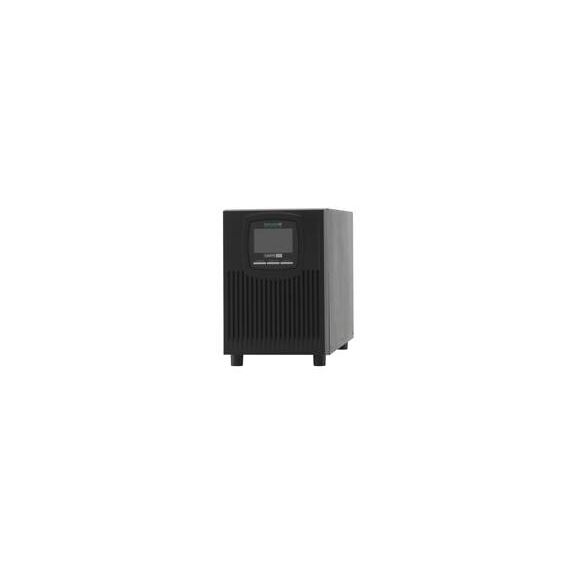

Online USV XANTO 700 / UPS / AC 230 V / 700 Watt / 700 VA 9 Ah / RS-232, USB / output connectors: 4 | X700
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | UPS - external |
| Power Device | Power Device |
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 110 - 300 V / 160 - 300 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity | 700 Watt / 700 VA |
| Dataline Surge Protection | Network/phone line - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Efficiency | 97%, 91% Battery mode |
| Battery | Battery |
| Quantity | 2 |
| Technology | Lead Acid |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 10 min at full load ¦ 24 min at half load |
| Networking | Networking |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) - screw terminal |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | Miscellaneous |
| MTBF | 50,000 hours |
| Features | Built-in cooling fan, LCD display, overload protection, programmable load outlets |
| Compliant Standards | IEC 62040-3, IEC 62040-2, IEC 60950-1, IP20, IEC 62040-1, VFI-SS-111 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 50 dBA |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15.8 cm |
| Depth | 39.7 cm |
| Height | 23.8 cm |
| Weight | 12.1 kg |
Features - Online USV - X700
More Details
Product Code
03:185400
EAN Code
4026908003666
Manufacturer
Online USV
