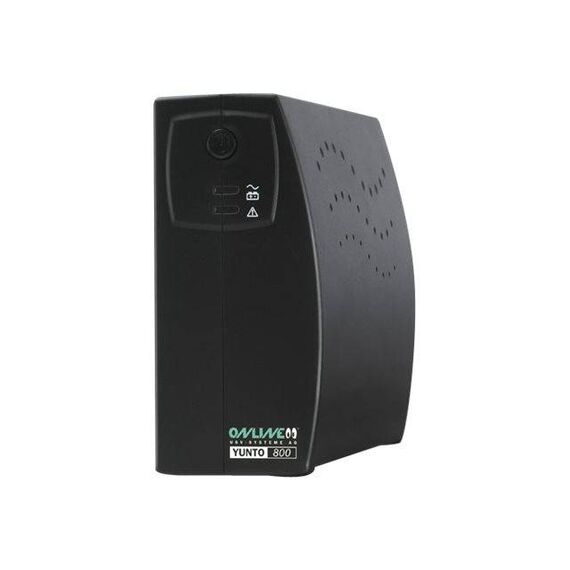

ONLINE Yunto 800 / UPS / AC 230 V / 480 Watt / 800 VA 9 Ah / USB / output connectors: 3 | Y800
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | UPS - external |
| Power Device | Power Device |
| UPS Technology | Line interactive |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 180 - 270 V |
| Frequency Provided | 50/60 Hz ± 1Hz |
| Frequency Required | 50/60 Hz ± 5Hz |
| Input Connectors | Power IEC 60320 C14 |
| Power Output Connectors Details | 3 x power IEC 60320 C13 |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Power Capacity | 480 Watt / 800 VA |
| Dataline Surge Protection | Network/phone line - RJ-45 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Efficiency | 95% AC mode, 70% Battery mode |
| Battery | Battery |
| Quantity | 1 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 6 min at half load ¦ 2.5 min at full load |
| Recharge Time | 8 hours |
| Features | Maintenance free, sealed |
| Networking | Networking |
| Remote Management Interface | USB |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB |
| Miscellaneous | Miscellaneous |
| Cables Included | USB cable - external ¦ 2 x power extension cable - external |
| Features | Cold-start function |
| Compliant Standards | IP20, EN 62040-2:2006, EN 62040-1:2008+A1:2013 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 8.01 cm |
| Depth | 23.2 cm |
| Height | 17.75 cm |
| Weight | 3.5 kg |
Features - Online USV - Y800
More Details
Product Code
03:185392
EAN Code
4026908003567
Manufacturer
Online USV
