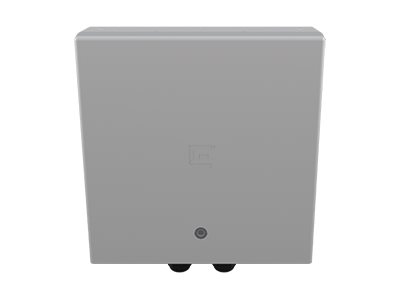

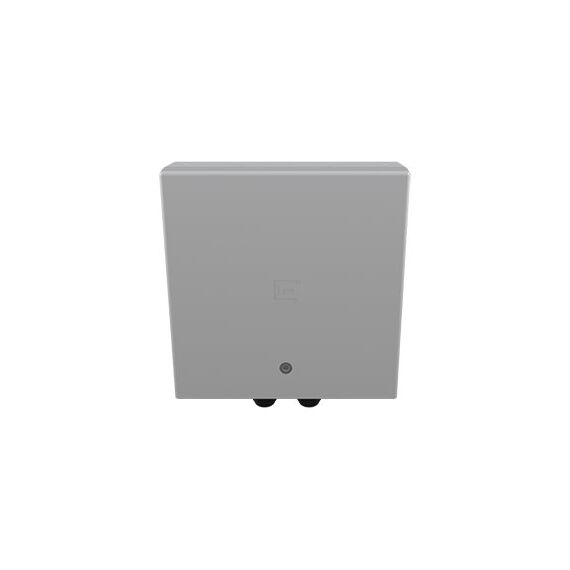

Extreme Networks AP5050U - Radio access point - outdoor - GigE, 5 GigE, 2.5 GigE - Wi-Fi 6E - ZigBee, Thread, Bluetooth - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed - wall / pole / surface mountable | AP5050U-WW
AP5050U-WW
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Width | 25.4 cm |
| Depth | 7 cm |
| Height | 28.6 cm |
| Weight | 3.36 kg |
| Localisation | Worldwide |
| Networking | |
| Form Factor | Wall / pole / surface mountable |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 10 Gbps |
| Line Coding Format | 256 QAM, OFDM, 1024 QAM, OFDMA, DSSS |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.2 LE |
| Spread Spectrum Method | OFDM, DSSS, OFDMA |
| Cloud-Managed | Yes |
| Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
| Capacity | SSIDs per radio: 8 <br /> SSIDs total: 24 <br /> Users per radio: 512 <br /> Total users: 1536 |
| Features | Modular design, Quality of Service (QoS), Trusted Platform Module (TPM), GPS sync compatible, packet aggregation A-MPDU, packet aggregation A-MSDU, SU-MIMO technology, Tri-Band, High-Throughput (HT) support, multirate port, support Fabric Attach, 4x4:4 MU-MIMO technology, Cellular Coexistence Filter (CCF), Transmit Beamforming, Private Pre-Shared Key (PPSK), automatic directional aerial |
| Encryption Algorithm | WPA3 |
| Authentication Method | Radio Service Set ID (SSID) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6E |
| Aerial | |
| Antenna | Internal |
| Directivity | Omni-directional |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Thread, Zigbee, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Interfaces | 1 x 1/2.5/5GBase-T (PoE+) - RJ-45 <br /> 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45 |
| Miscellaneous | |
| Compliant Standards | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60601-1-2, CB, ICES-003 Class B, AS/NZS 60950-1, UL 2043, IEC 60950-1, EN 55011, EN 60601-1-2, REACH, IP67, EN 62311, EN 300.440, EN 300 328, WEEE 2012/19/EU, EMC 2014/30/EU, EN 301 489-1, LVD 2014/35/EU, FCC CFR47 Part 15 B Class B, RSS-247, EN 62479, EN 55032 Class B, RSS-102 Issue 5, EN 62368-1, IEC 62368-1, EN 301 893, CISPR 32 Class B, FCC Subpart C 15.247, FCC Subpart E 15.407, Directive 2014/53/EU, EU RoHS, Directive 1907/2006/EC, EN 55035, CISPR 35, EN 301 489-17, Directive 2015/863/EU, 2011/65/EU, China RoHS SJ/T 11364-2014, AS/NZS CISPR 32, IEEE 802.15.4, CNS 15663, EN 302 502, UL/CUL 62368-1, SCIP, CAN/CSA-C22.2 No. 60950-1-07:2014, RSS-248, UL-60950-1 2nd Edition |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
Features - extreme networks - AP5050U-WW
More Details
Product Code
CF46415
EAN Code
0644728055005
Manufacturer
extreme networks
