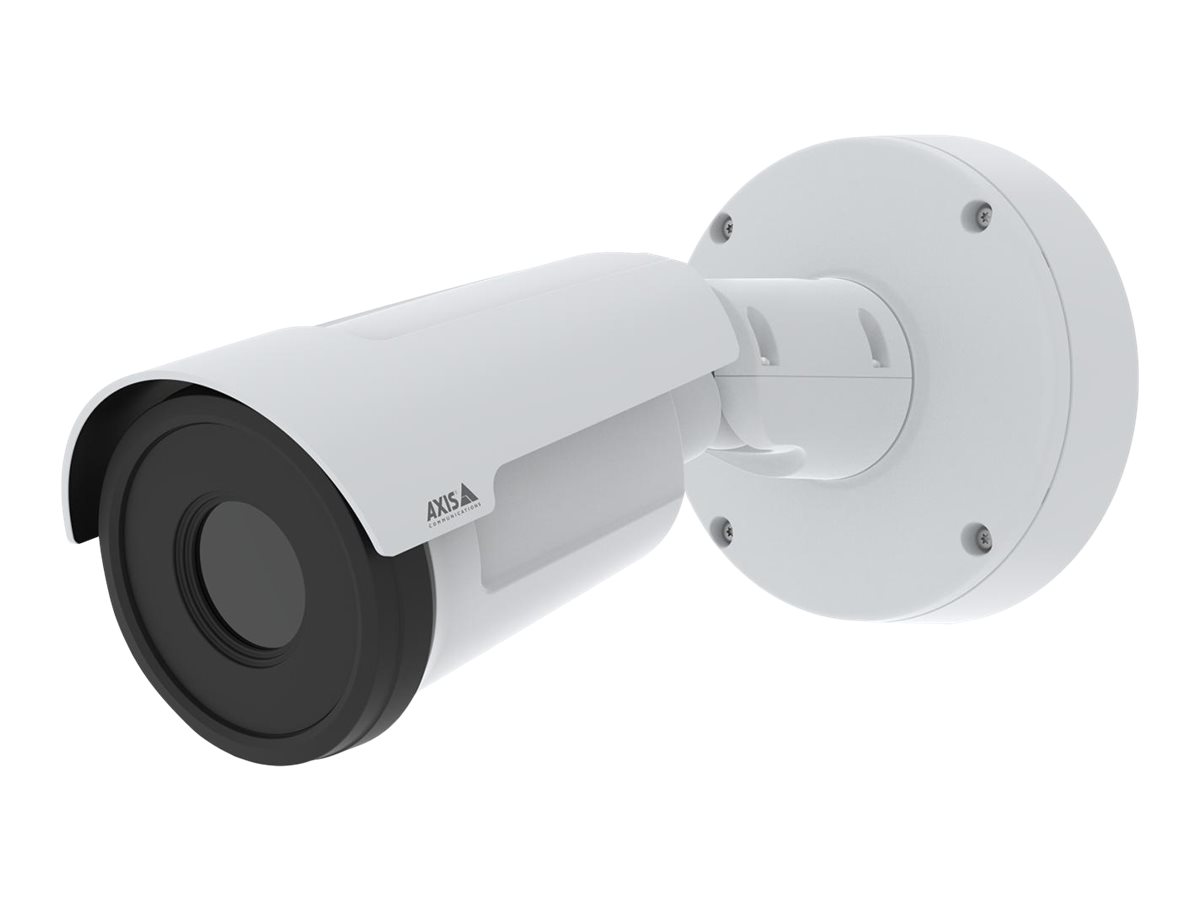

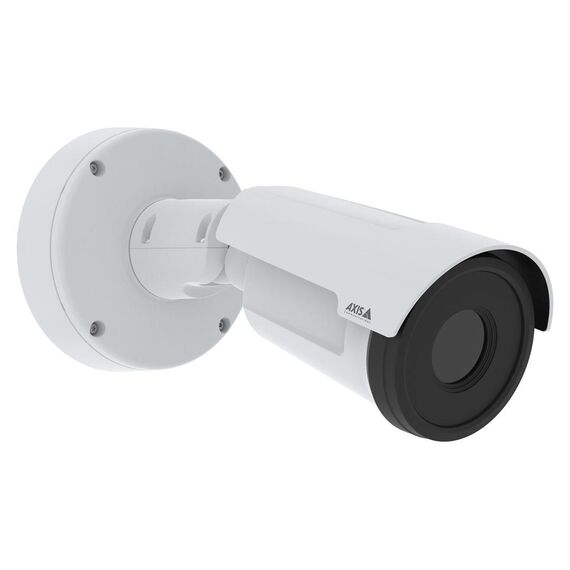

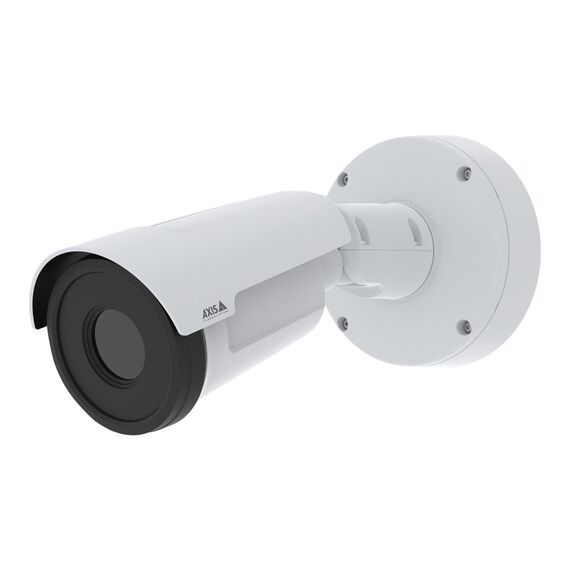

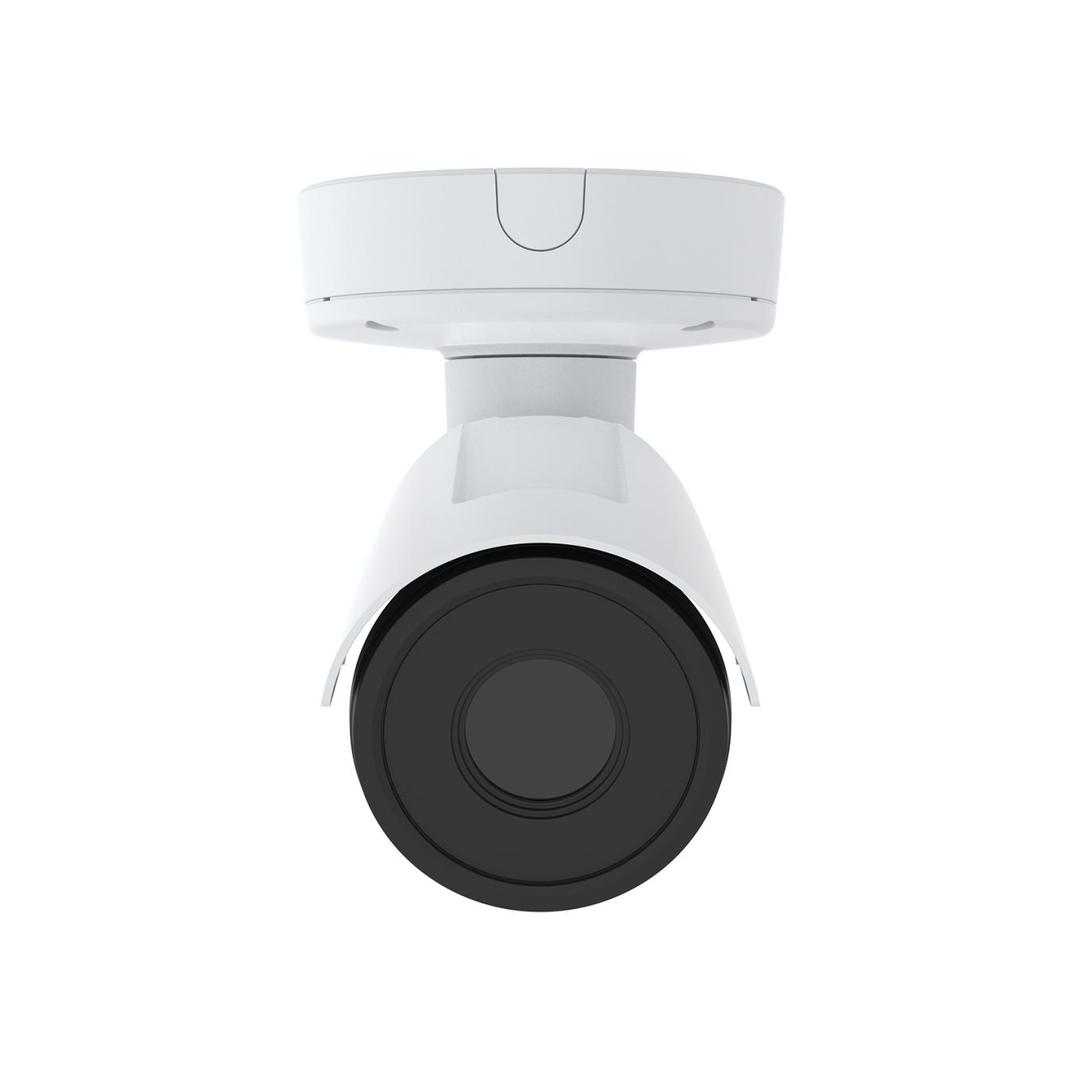

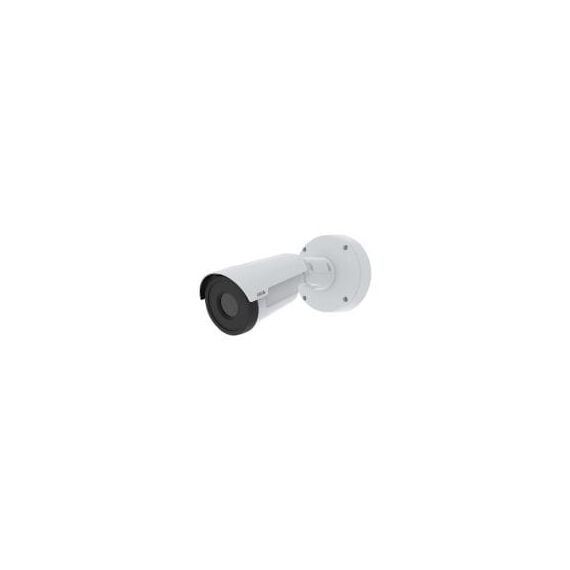

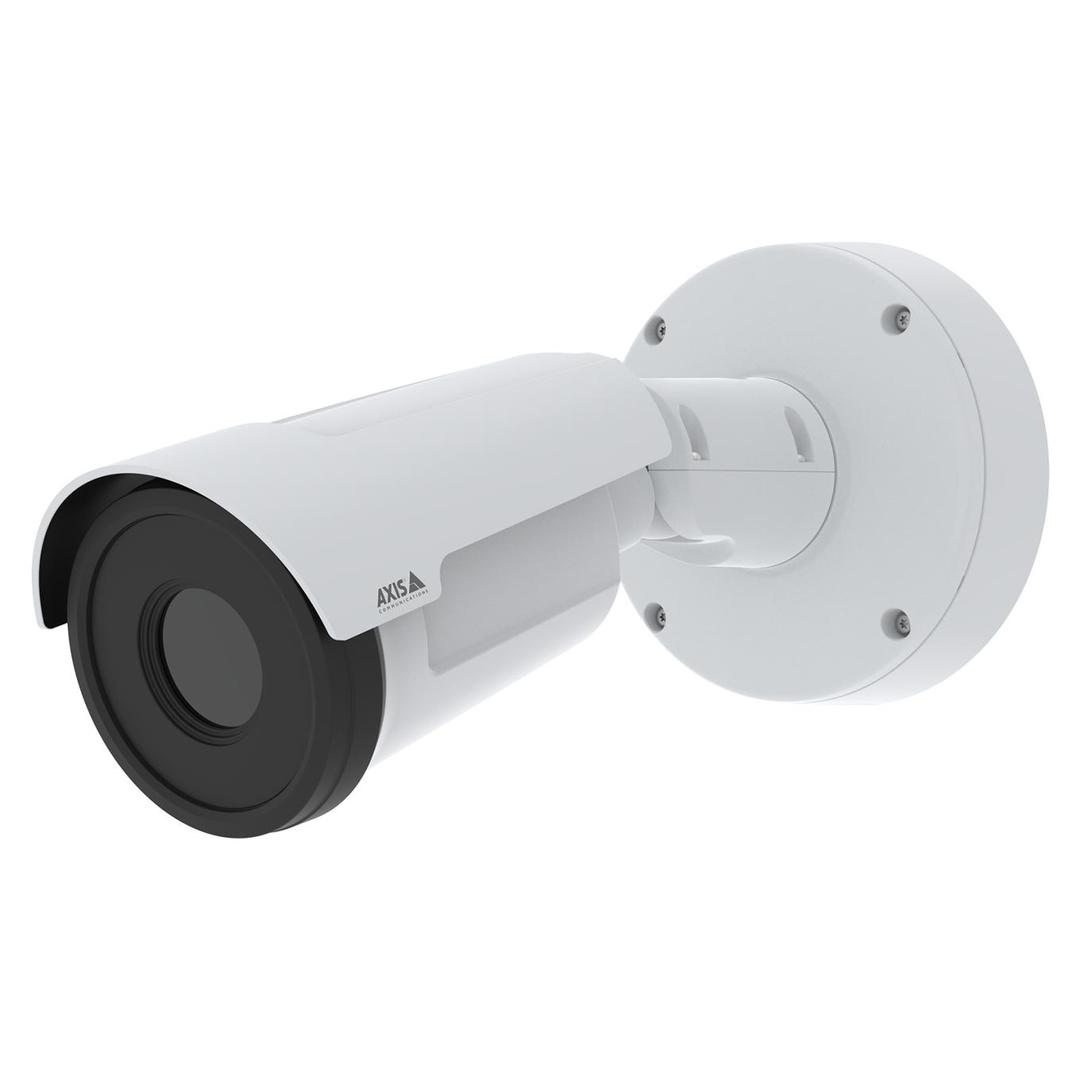

AXIS Q1961-TE - Thermal network camera - outdoor - impact / corrosion resistant - 768 x 576 - fixed focal - audio - GbE - MJPEG, H.265, H.264B, H.264H, H.264M - DC 10 - 28 V / PoE Class 3 - TAA Compliant | 02176-001
AXIS Q1961-TE - Thermal network camera - outdoor - impact / corrosion resistant - 768 x 576 - fixed focal - audio - GbE - MJPEG, H.265, H.264B, H.264H, H.264M - DC 10 - 28 V / PoE Class 3 - TAA Compliant | 02176-001
€6706.51 inc. VAT
02176-001
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Thermal network camera |
| Audio Support | Yes: two-way audio via edge-to-edge technology |
| Audio Formats | PCM, G.726, ADPCM, AAC-LC, LPCM, G.711, OPUS |
| Connectivity Technology | Wired |
| Width | 13.2 cm |
| Depth | 27.2 cm |
| Height | 13.2 cm |
| Weight | 1.4 kg |
| Localisation | Argentina, Australia, China, Japan, Korea, United Kingdom, United States, European Union |
| Camera | |
| Type | - fixed - outdoor - impact / corrosion resistant |
| Digital Video Format | MJPEG, H.265, H.264B, H.264H, H.264M |
| Max Digital Video Resolution | 768 x 576 |
| Motion Detection | Yes |
| Frame Rate (max) | 30 frames per second |
| RAM | 2 GB |
| Flash Memory | 8 GB |
| Features | Sharpness control, brightness control, contrast control, image mirror, active tampering alarm, password protection, Variable Bitrate (VBR), Audio Detection, auto gain control, Zipstream technology, ONVIF (Profile S) support, ONVIF (Profile G) support, image overlay, Pixel Counter Support, digest authentication, electronic image stabilisation, exposure zone, isothermal palette, half duplex audio, simplex audio, 8 - 14 µm spectral response, signed firmware, secure boot, Corridor mode, ONVIF (Profile T) support, Adaptive Bitrate (ABR), VAPIX support, early warning fire prevention, thermal sensitivity 40 mK (NETD), compression, text overlay, polygon privacy mask, 180° image rotation, 90° image rotation, 270° image rotation, memory card encryption, brute force delay protection, Trusted Platform Module (TPM), ONVIF (Profile M) support, Axis Edge Vault, Multi-Bitrate (MBR), Axis device ID, secure keystore, video streaming indicator, signed video, deep learning processing unit (DLPU), multiple colour palettes, network speaker pairing, spot temperature meter, 10 temperature zones detection, -40 °C to 350 °C object temperature monitoring |
| Image Sensor | |
| Type | Uncooled Micro bolometer |
| Effective Pixels | 384 x 288 |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 13 mm |
| Lens Iris | F/1.0 |
| Min Focus Distance | 4 m |
| Horizontal Field of View (degree) | 28 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, SMB, IGMP, SSH, QOS, IGMPv2, IGMPv3, CIFS, SRTP, SFTP, LLDP, Zeroconf, USGv6, MQTT, CDP, Syslog |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 ¦ Audio line-in/microphone - 3.5 mm jack |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | |
| Included Accessories | Torx L-key, cable gaskets, drill hole template, connector guard, terminal block connectors, owner authentication key |
| TAA Compliant | Yes |
| Compliant Standards | CSA, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, FIPS 140-2 Level 2, EN 61000-6-2, IEC 60068-2-27, IEC 60068-2-6, EAL 4+, X.509, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, KC, EN 50121-4, IEC 62236-4, VCCI Class A, RoHS 2011/65/EU, NEMA250 Type 4X, AS/NZS CISPR 32 Class A, BFR-free, EN 55032 Class A, ISO 21207 method B, CISPR 32 Class A, IEEE 802.3af, IEEE 802.3at, REACH 2006/1907, EN 55035, CISPR 35, IEC/EN/UL 62368-1, IEC/EN 60529 IP66, IEEE 802.1x, PVC-free, NIST SP500-267, ICES-3(A)/NMB-3(A), IEC/EN 62262 IK10, IEC/EN 60529 IP67, NEMA TS-2 (2.2.7-2.2.9), UKCA, MIL-STD 810H 516.8, UL/cUL, MIL-STD 810H 501.7, MIL-STD 810H 507.6, MIL-STD 810H 514.8, MIL-STD 810H 502.7, MIL-STD 810H 505.7, CAN/CSA C22.2 No. 62368-1 Third Edition, KS C 9832 Class A, KS C 9835, CFR free, EN 63000:2018, IEEE 802.1ar, MIL-STD 810H 506.6, MIL-STD 810H 509.7, MIL-STD 810H 510.7, MIL-STD 810H 521.4 |
| Colour | White, NCS S 1002-B |
| Power | |
| Power Requirements | DC 10 - 28 V / PoE Class 3 |
| Software / System Requirements | |
| Software Included | AXIS Fence Guard, AXIS Video Motion Detection, AXIS Loitering Guard, AXIS Motion Guard |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 10 - 100% RH (condensing) |
