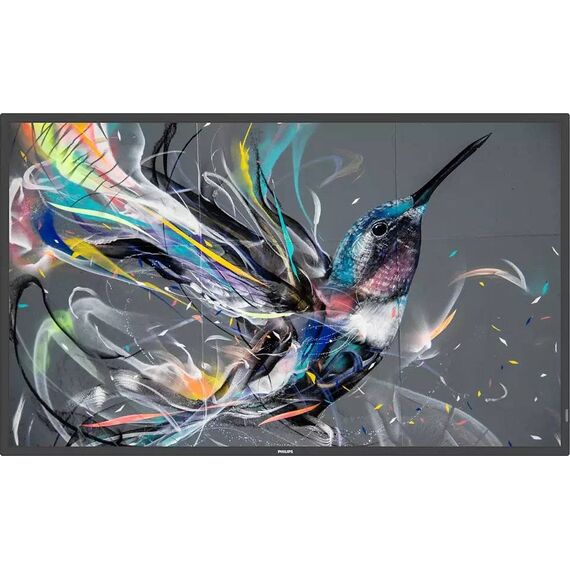

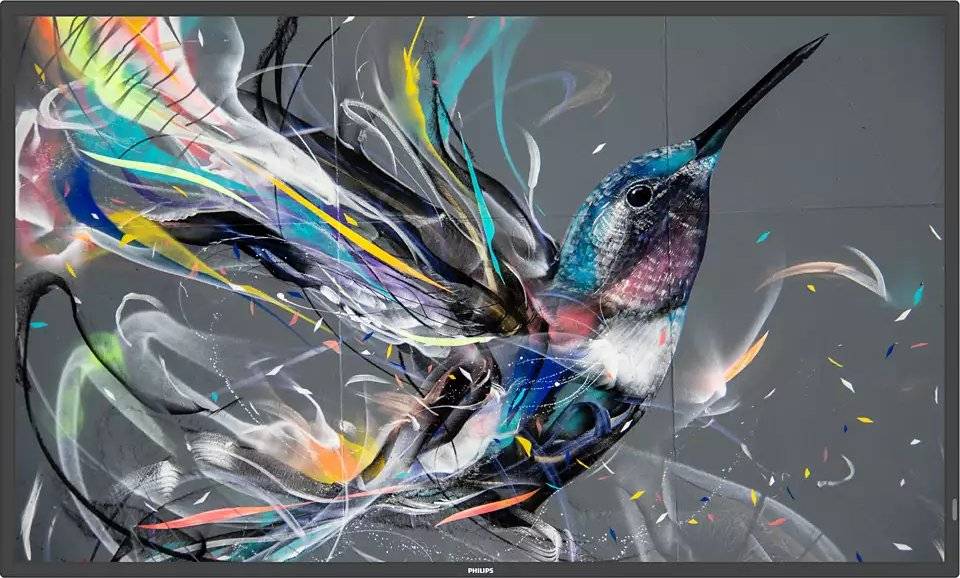

Philips 43BDL3550Q / 43" Diagonal Class (42.5" viewable) / Q-Line LED-backlit LCD display / digital signage / Android / 4K UHD (2160p) 3840 x 2160 / direct-lit LED | 43BDL3550Q/00
Product Features
- CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. - Integrated media player
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done. - FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on. - CMND & Create
Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time. - Powered by Android 8
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer. - SmartBrowser
Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using Wi-Fi or with an RJ45 cable, and enjoy your own created playlist.
Special Features
- Operate, monitor and maintain with CMND & Control
- CMND & Create - develop and launch your own content
- Integrated media player, easily schedule USB content
- Easy control - remotely manage networked displays
- FailOver ensures content is always playing
- Android SoC processor, native and web apps
- Connect and control your content over the internet
- Ultra-HD, rich images, stunning contrast
Product Specification
Product Type | LED-backlit LCD flat panel display |
Energy Class | Class G |
Power Consumption Operational | 152 Watt |
Power Consumption (On mode) | 102 W |
Power Consumption SDR (On mode) | 102 kWh/1000h |
Diagonal Class | 43" |
Diagonal Size | 42.5" |
Commercial Use | Yes - digital signage |
Series | Q-Line |
Platform | Android |
TV Tuner | No tuner |
TV Tuner Presence | No |
Video Interface | HDMI |
HDMI Ports Qty | 2 ports |
PC Interface | DVI, VGA (HD-15) |
Modes | Landscape mode |
Picture Enhancements | 3D Combfilter |
Dimensions | Without stand |
Width | 97.3 cm |
Depth | 6.35 cm |
Height | 56.12 cm |
Weight | 11.29 kg |
Display | Display |
LCD Display Technology | ADS |
Resolution | 3840 x 2160 |
Display Format | 4K UHD (2160p) |
Image Aspect Ratio | 16:9 |
LCD Backlight Technology | Direct-lit LED |
Image Contrast Ratio | 1200:1 |
Dynamic Contrast Ratio | 500000:1 |
Brightness | 400 cd/m² |
Viewing Angle | 178 degrees |
Viewing Angle (Vertical) | 178 degrees |
Pull-Down Compensation | 3:2, 2:2 |
Response Time | 8 ms |
Display Menu Language | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Polish, Russian, Spanish, Turkish, Arabic, Japanese |
Commercial Features | HTML5 support, FailOver |
Operation Hours / Days | 18 / 7 |
Features | 3D MA deinterlacing, DICOM support, picture in picture (no tuner) |
Video Wall | Video Wall |
Max Number of Screens | 225 |
Stands & Mounts | Stands & Mounts |
Flat Panel Mount Interface | 200 x 200 mm |
VESA Compatibility | Yes |
Video Features | Video Features |
Input Video Formats | 1080/60i, 480/60p, 720/60p, 1080/50i, 720/50p, 576/50p, 1080/50p, 1080/60p, 480/60i, 576/50i |
Supported Computer Resolutions | 1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1152 x 864, 1280 x 720, 720 x 400, 1152 x 870, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 1280 x 800 |
Media Player | Media Player |
Supported Video Formats | H.264, H.263, MPEG, H.265, VP8 |
Supported Audio Formats | AAC, HE-AAC |
Supported Pictures Formats | BMP, PNG, JPEG |
USB Port | Yes |
Configuration | ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core - 2 GB - 8 GB |
Operating System | Android OS 8.0 |
Remote Control | Remote Control |
Type | Remote control |
Audio System | Audio System |
Speaker System | 2 speakers |
Output Power / Total | 20 Watt |
Speakers | 2 x speaker - 10 Watt |
Network & Internet Multimedia | Network & Internet Multimedia |
Functionality | WEB browsing |
Connectivity | LAN |
Connections | Connections |
Connector Type | 2 x HDMI input ¦ DVI-D input ¦ USB 2.0 ¦ VGA input ¦ Audio line-in ¦ Audio line-out ¦ Remote control ¦ RS-232C input ¦ RS-232C output ¦ Infrared input ¦ Infrared output |
Miscellaneous | Miscellaneous |
Included Accessories | Batteries |
Cables Included | RS-232 cable ¦ HDMI cable ¦ IR sensor cable |
Compliant Standards | FCC Class A certified, VCCI, BSMI, CB, ETL, DICOM Part 14, EPA, CU |
Power | Power |
Power Device | Power supply |
Input Voltage | AC 120/230 V |
Power Consumption Stand by | 0.5 Watt |
Features | Smart power |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 80% |
