PowerWalker ATS - Redundant switch (rack-mountable) - AC 220/230/240 V - RS-232, USB - output connectors: 9 - 1U - 19" - black | 10120543
10120543
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Dual power supply for redundancy
- Powered by two separately independent power sources
- 19" rack design
- Supports all UPS up to 3000 VA
Product Specification
| Device Type | Redundant switch - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Colour | Black |
| Power Device | |
| Input Voltage | AC 220/230/240 V |
| Input Connectors | 2 x power IEC 60320 C20 |

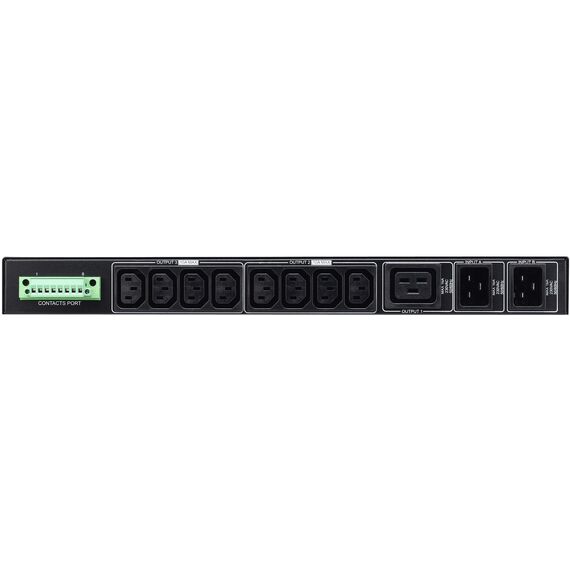

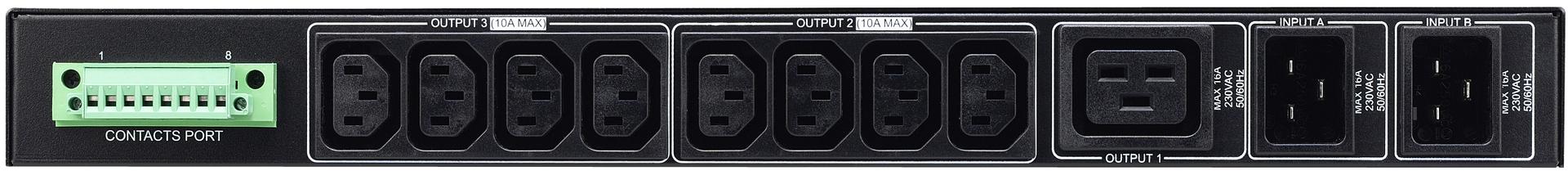

| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Output Voltage | AC 220/230/240 V |
| Max Electric Current | 16 A |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | LED indicators, Automatic Transfer Switch (ATS) |
| Compliant Standards | RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 20 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 33 cm |
| Height | 4.4 cm |
| Weight | 5 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 49.5 cm |
| Shipping Depth | 16.8 cm |
| Shipping Height | 7.4 cm |
| Shipping Weight | 8 kg |
