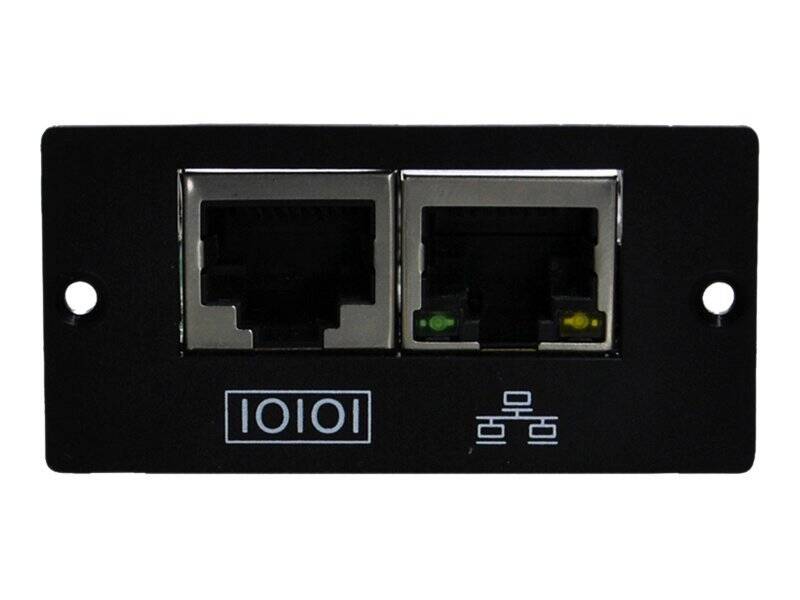

PowerWalker SNMP Manager - Remote management adapter - 100Mb LAN - 100Base-TX - for PowerWalker VFI 100, VFI 1000, VFI 10000, VFI 1500, VFI 180, VFI 2000, VFI 3000, VFI 6000 | 10120505

PowerWalker SNMP Manager - Remote management adapter - | 10120505

Description
Features
Reviews

Special Fetures

Allows to control and monitoring of multiple UPSs through RJ45 network connection
Real-time dynamic graphs of UPS data
Warning notifications via audible alarm, broadcast, mobile messenger, e-mail and SNMP traps
Historic data log stored in centralized PC database
Simple firmware upgrade with one click
Password security protection and remote access management

Product Specification

Device Type	Remote management adapter
Form Factor	Plug-in module
Networking
Connectivity Technology	Wired
Cabling Type	Ethernet 10Base-T, Ethernet 100Base-TX
Data Link Protocol	Ethernet, Fast Ethernet
Remote Management Protocol	SNMP
Status Indicators	Port status, port transmission speed
Processor / Memory
Processor	1 x Freescale MCF52254
Processor Clock Speed	48 MHz
Flash Memory	512 KB
Expansion / Connectivity
Interfaces	1 x 100Base-TX - RJ-45 ¦ 1 - RJ-45
Compatible Slots	1 x Expansion Slot
Software / System Requirements
Software Included	ViewPower Pro
Dimensions & Weight
Width	4.7 cm
Depth	2.3 cm
Height	1.5 cm
Weight	35 g
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95% (non-condensing)
Compatibility Information
Designed For	PowerWalker VFI 1000 LCD, VFI 10000C LCD, VFI 10000R LCD, VFI 1000RM LCD, VFI 100K CPG PF1 3/3 BX, VFI 1500 LCD, VFI 1500RM LCD, VFI 180K CPG PF1 3/3 BX, VFI 2000 LCD, VFI 2000RM LCD, VFI 3000 LCD, VFI 3000RM LCD, VFI 6000C LCD, VFI 6000R LCD
