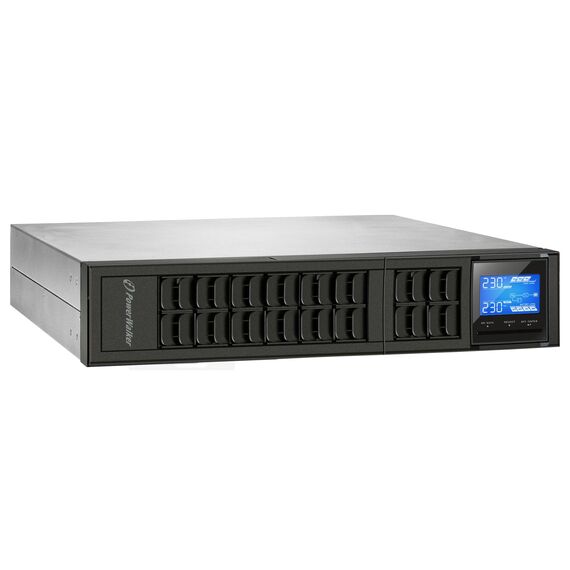

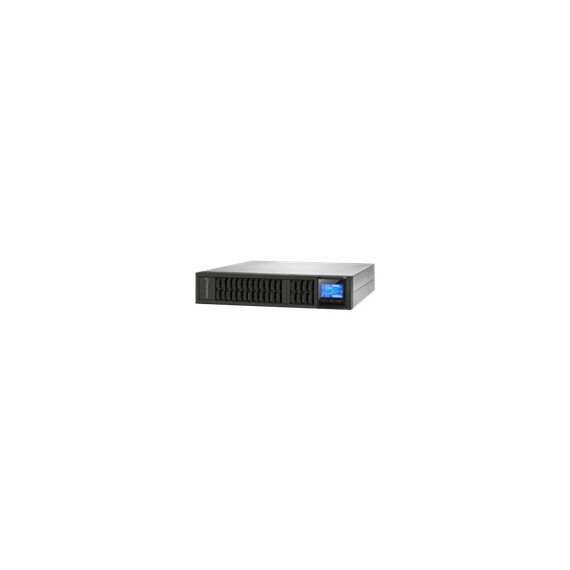

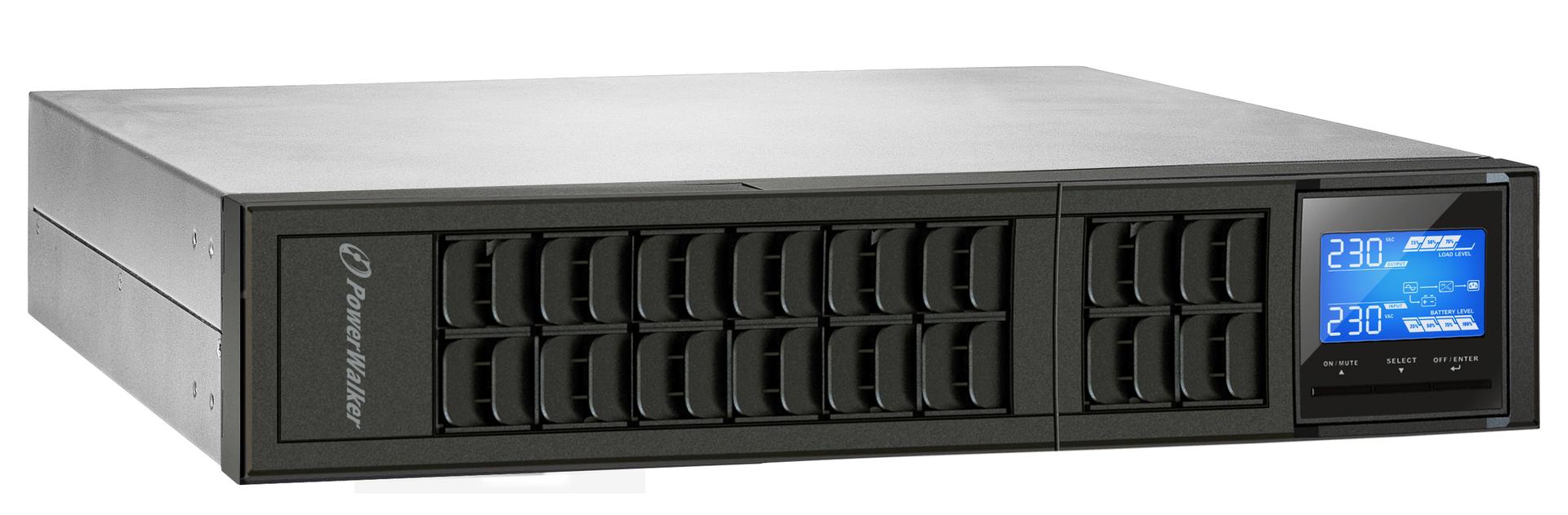

PowerWalker VFI 1000 CRS - UPS (rack-mountable / external) - 800 Watt - 1000 VA - no battery - RS-232, USB - output connectors: 3 - 2U - 19" | 10122038
10122038
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- 1000 VA/800 W online UPS with Power Factor 0.8
- Designed to work with external batteries
- Comprehensive display allows easy monitoring and access of UPS status
- Adjustable charging current via LCD or software
- Wide input voltage range compatible with generators
- Discharge timer
- Rack/Tower design with swappable LCD direction
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage Range | AC 110 - 300 V |
| Frequency Provided | 50/60 Hz ± 0.3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 3 x power IEC 60320 C13 |
| Output Voltage | AC 200/208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity | 800 Watt / 1000 VA |
| Efficiency | 88% |
| Power Factor (PF) | 0.8 |
| Total Harmonic Distortion (THD) | 3 % |
| Battery | |
| Type | No battery |
| Transfer Time | 4 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Features | Audible alarm, LCD display, Eco-Mode |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 50 dB |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 31 cm |
| Height | 8.8 cm |
| Weight | 9 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 50 cm |
| Shipping Depth | 40 cm |
| Shipping Height | 18 cm |
