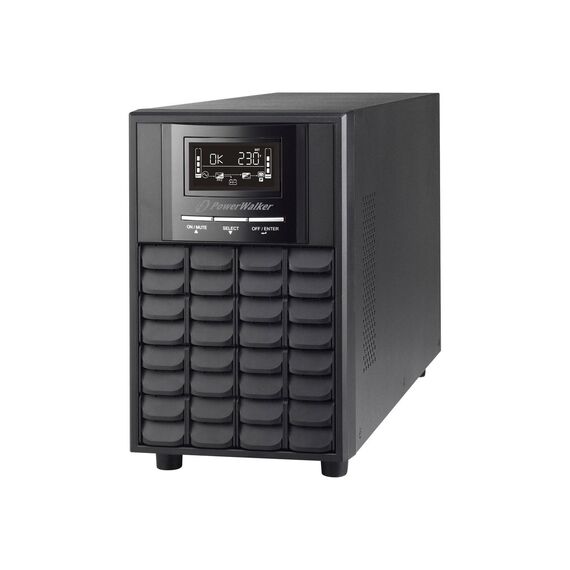

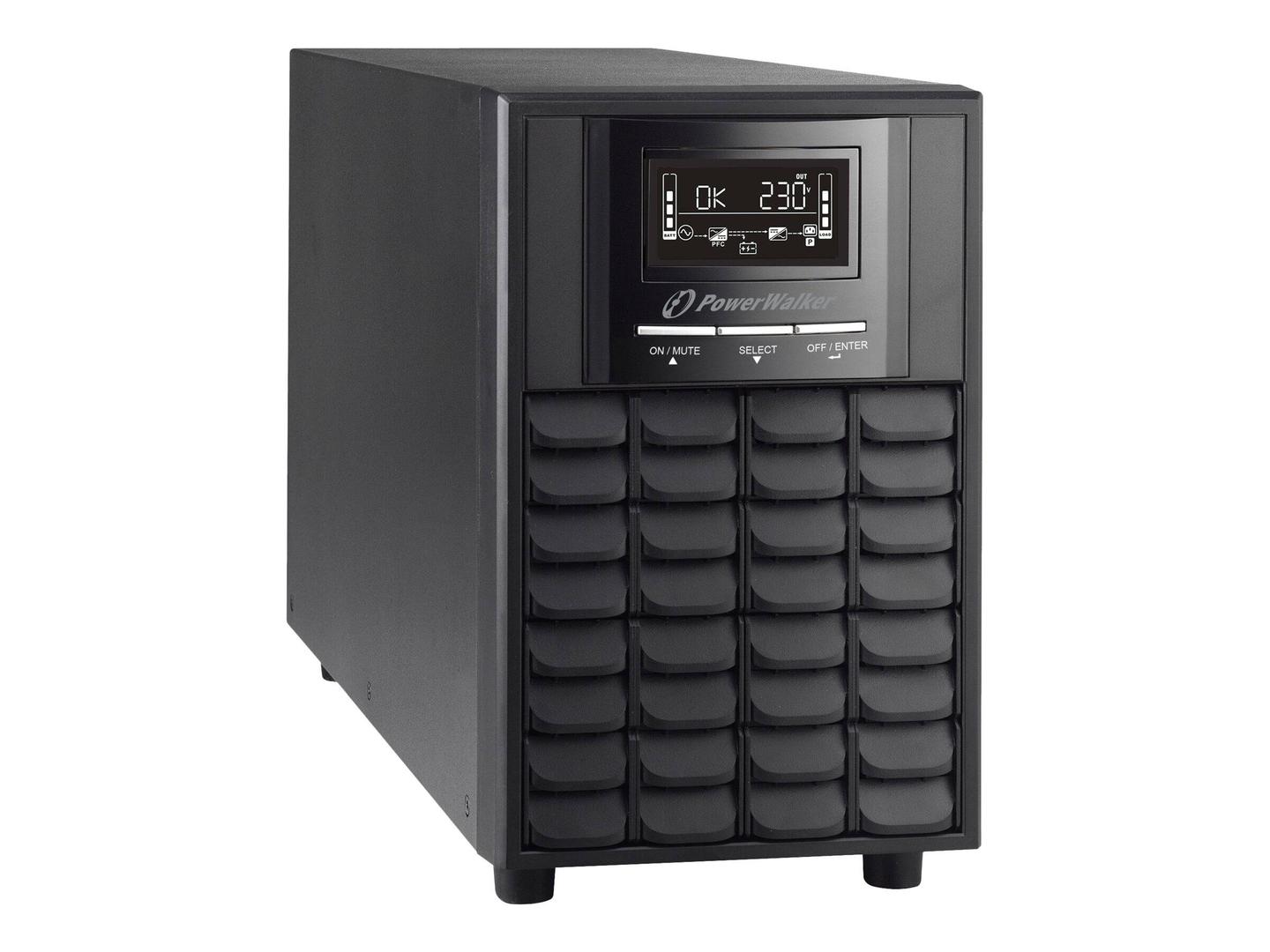

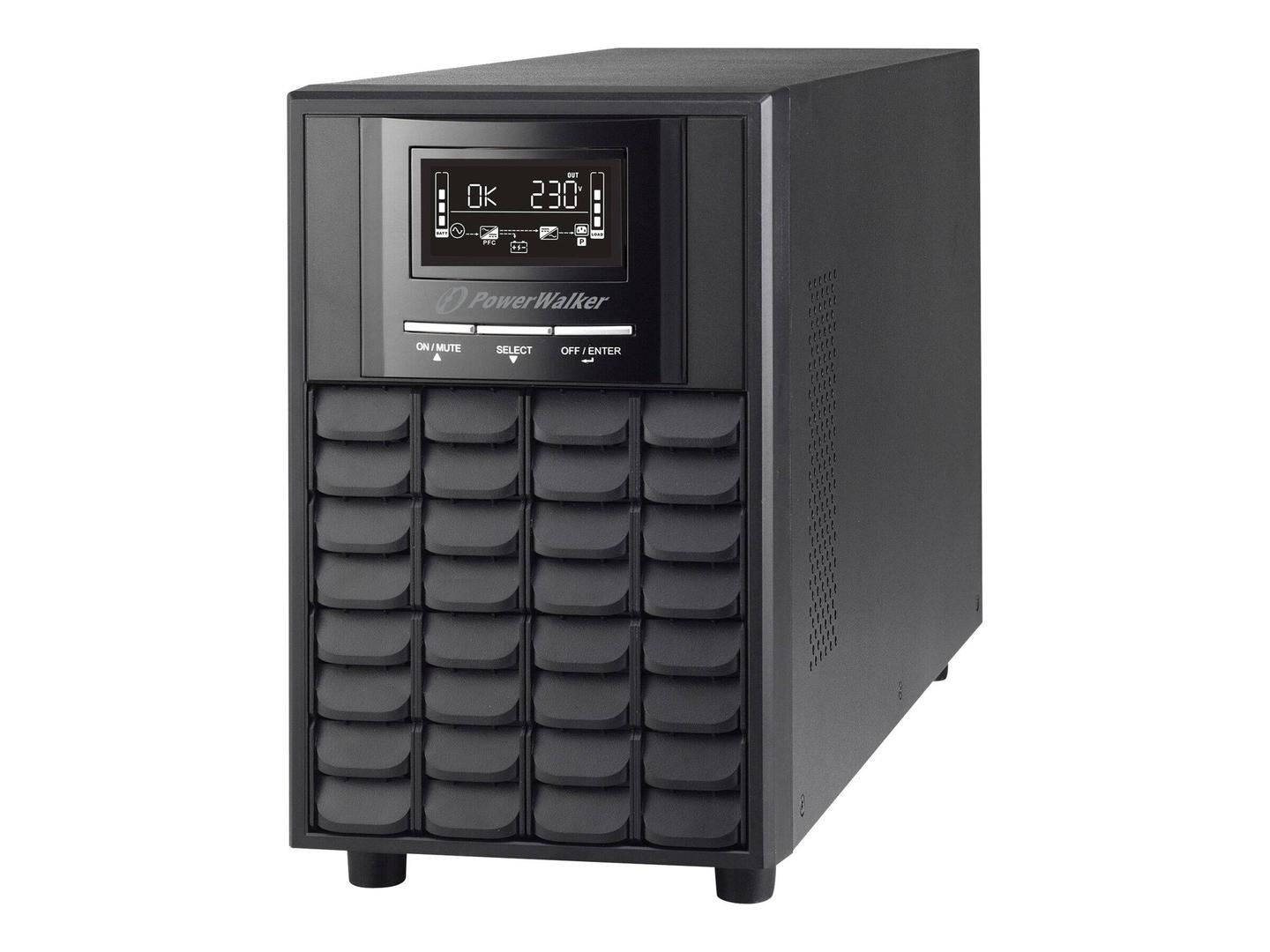

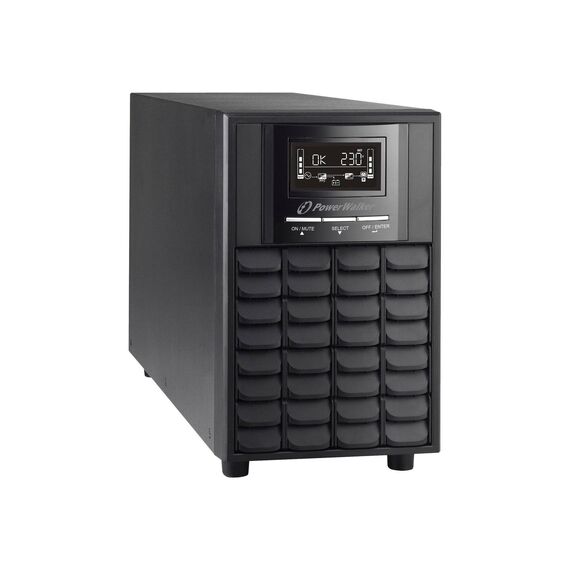

PowerWalker VI 1500 CW FR - UPS - AC 162-290 V - 1050 Watt - 1500 VA - 9 Ah - RS-232, USB - output connectors: 3 | 10121135
10121135
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Automatic voltage regulator with pure sine-wave output
- Fully automatic and silent operation

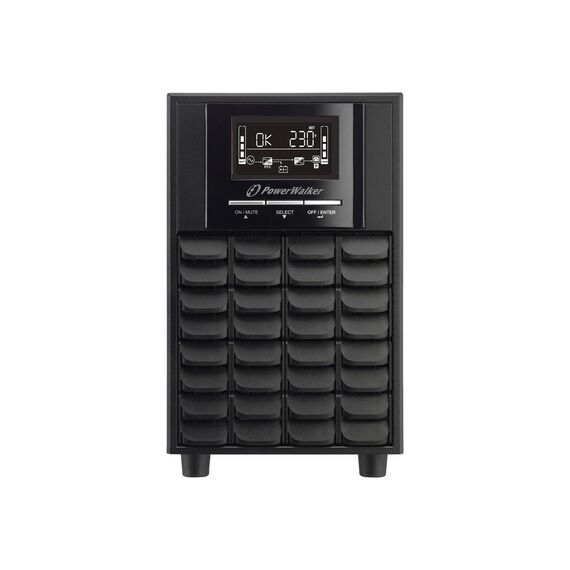

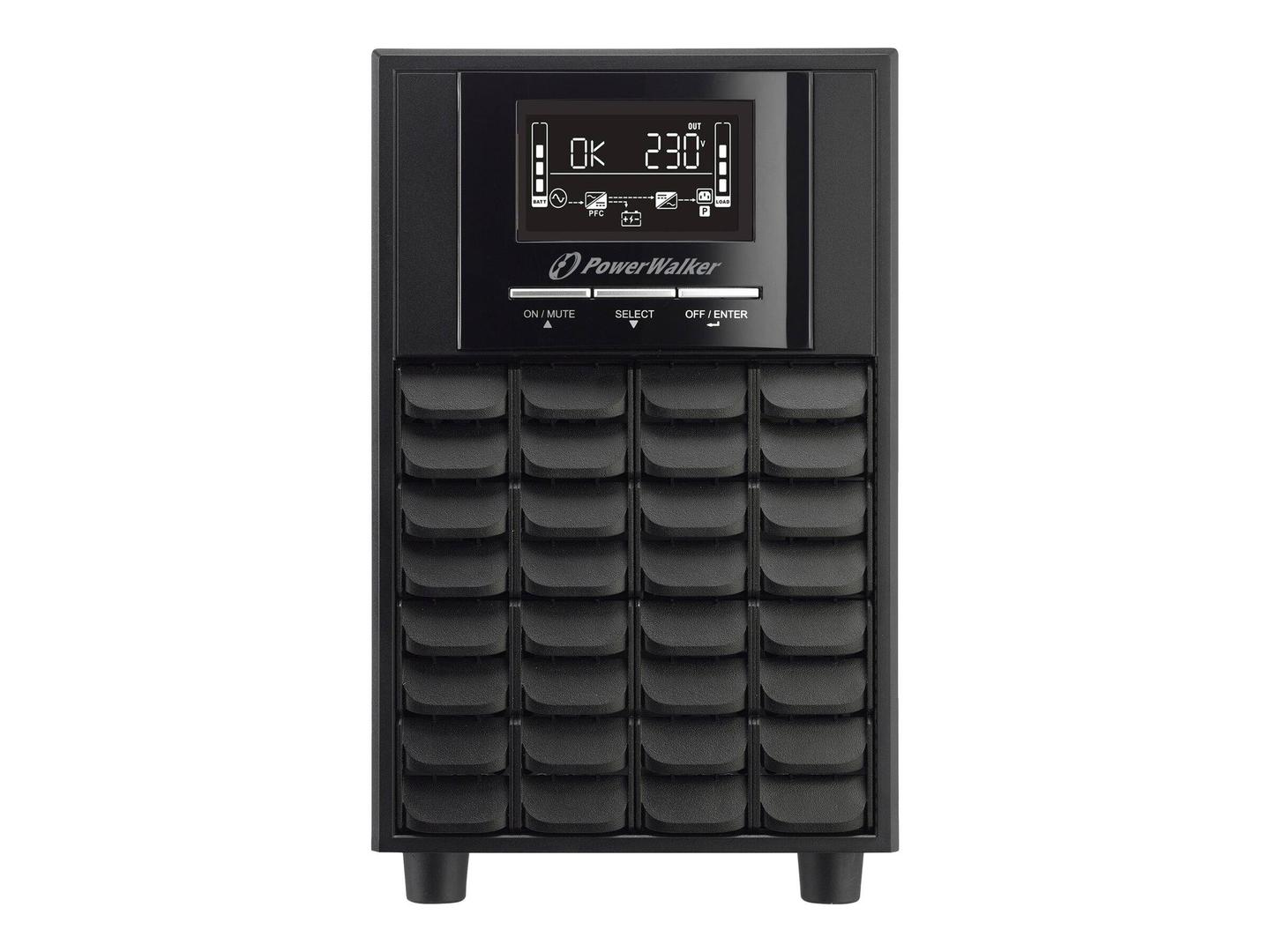

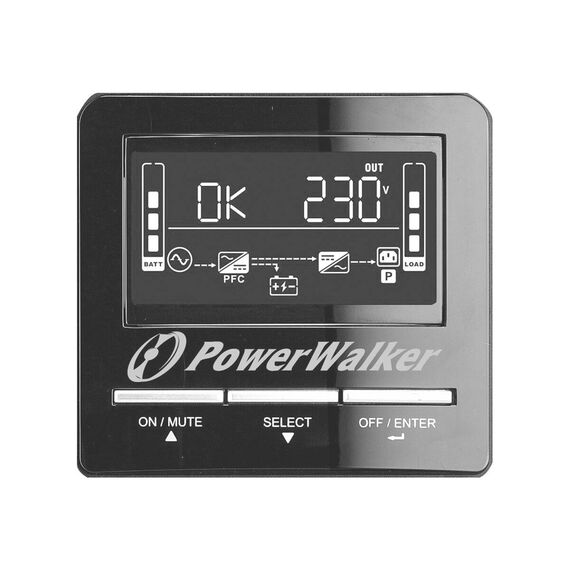

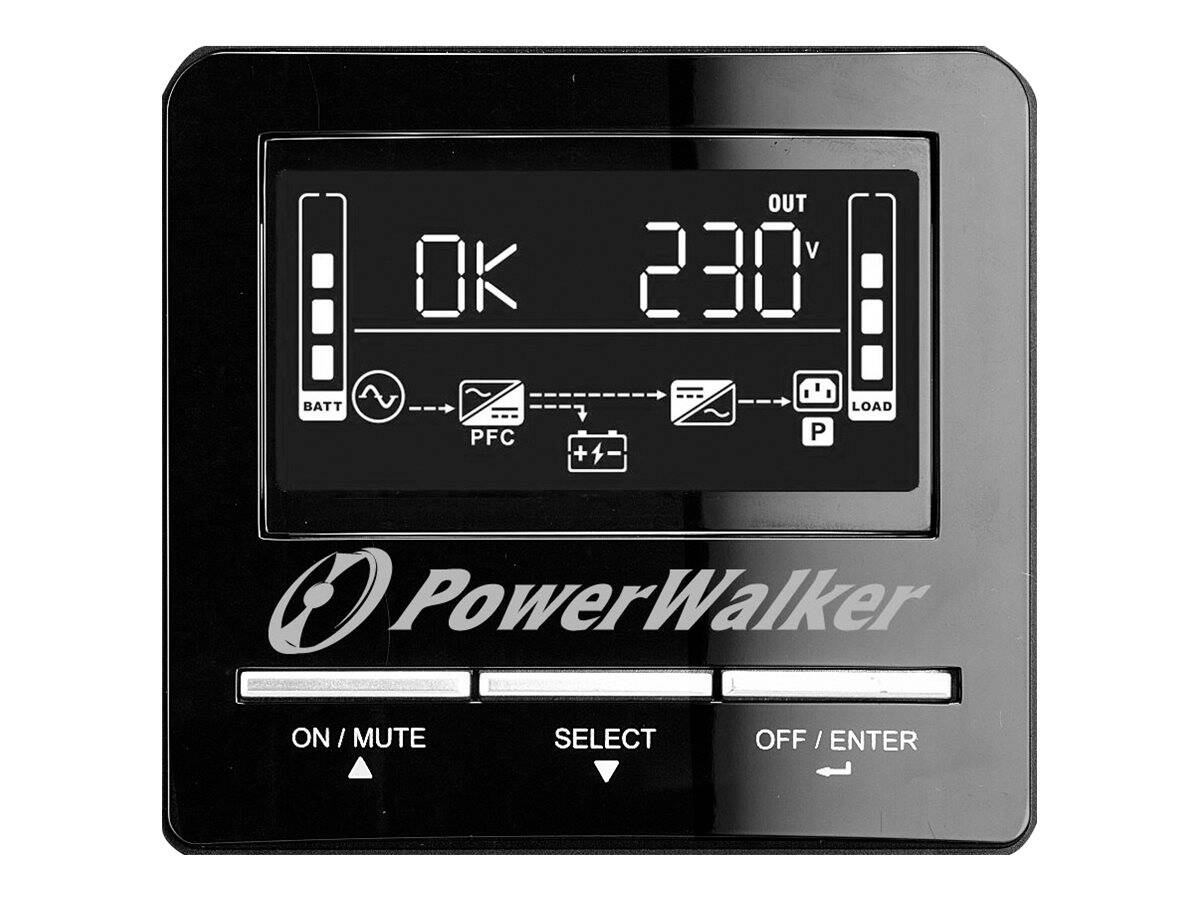

- Advanced LCD displaying load in watt and backup time in minutes
- Intelligent slot for SNMP, Modubs, AS400 communication
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 162-290 V |
| Frequency Provided | 50/60 Hz ± 1Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 3 x power CEE 7/5 |
| Output Voltage | AC 208/220/230/240 V ± 1.5% - 50/60 Hz |
| Power Capacity | 1050 Watt / 1500 VA |
| Output Waveform | Sinewave |
| Efficiency | 88% Battery mode, 96% AC mode |
| Power Factor (PF) | 0.7 |
| Total Harmonic Distortion (THD) | 2 % |
| Battery | |
| Quantity | 2 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 1.5 min at full load ¦ 4 min at half load |
| Transfer Time | 6 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |

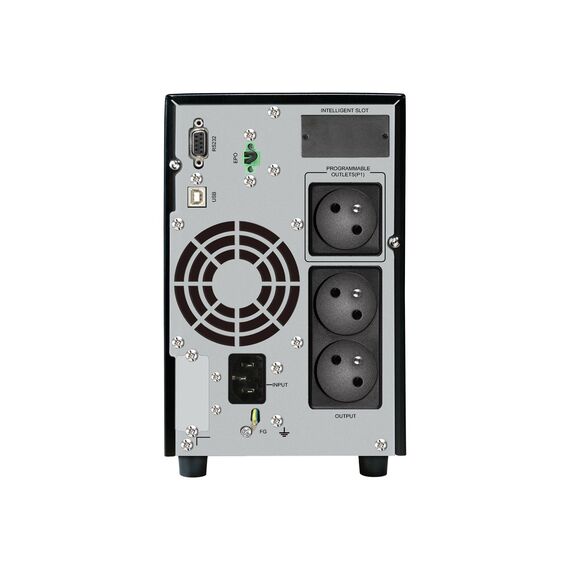

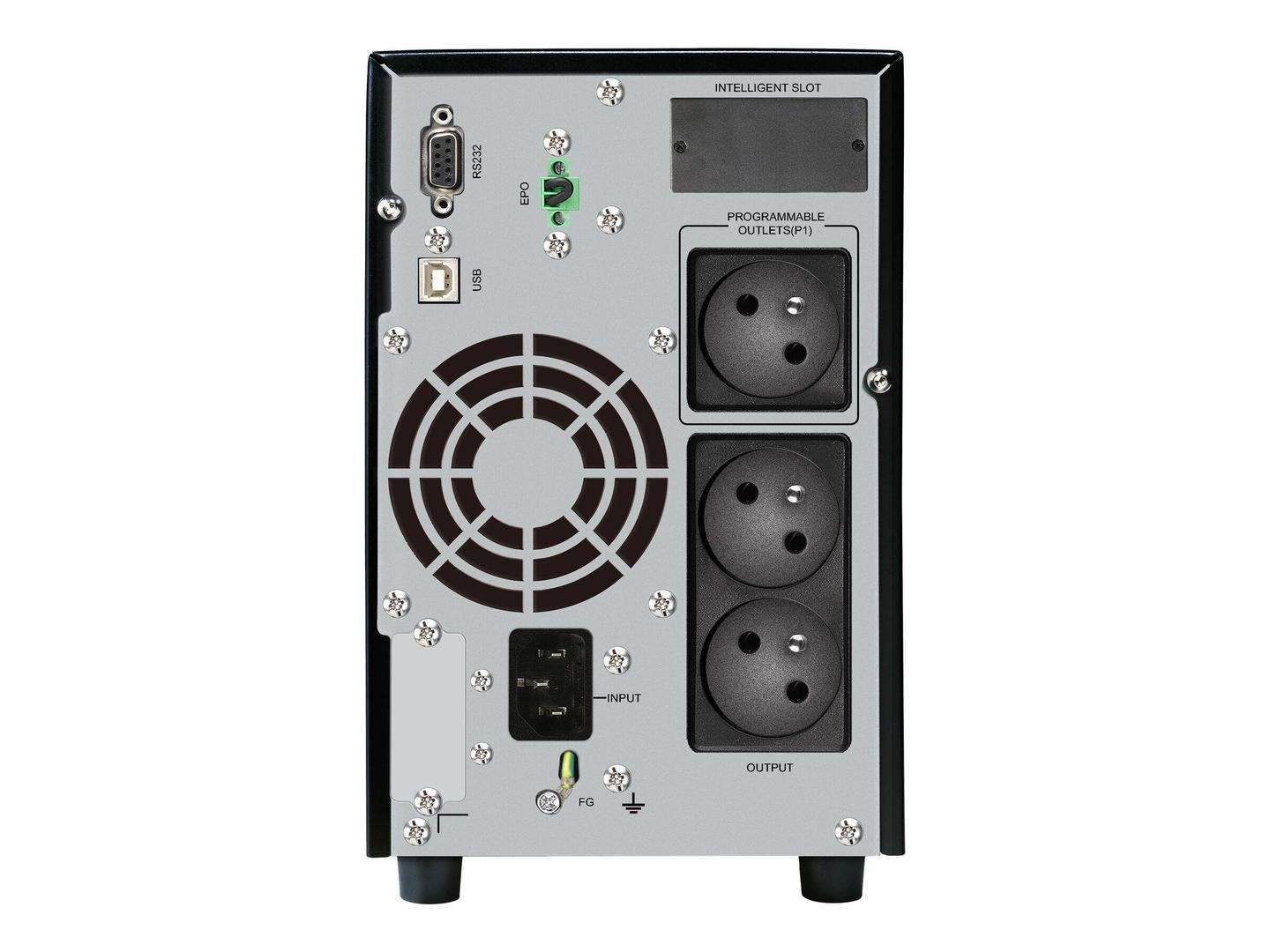

| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - terminal block |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Miscellaneous | |
| Cables Included | Power cable - external ¦ USB cable - external |
| Features | LCD display, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, fan speed control, discharge protection, 1 programmable sockets, Human Interface Device (HID) support |
| Compliant Standards | IEC 62040-3 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Sound Emission | 45 dB |
| Dimensions & Weight | |
| Width | 14.5 cm |
| Depth | 39.7 cm |
| Height | 22 cm |
| Weight | 12.4 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23 cm |
| Shipping Depth | 47.2 cm |
| Shipping Height | 32.5 cm |
| Shipping Weight | 13.75 kg |
Features - Bluewalker - 10121135
More Details
Product Code
04:379187
EAN Code
4260074982077
Manufacturer
Bluewalker
