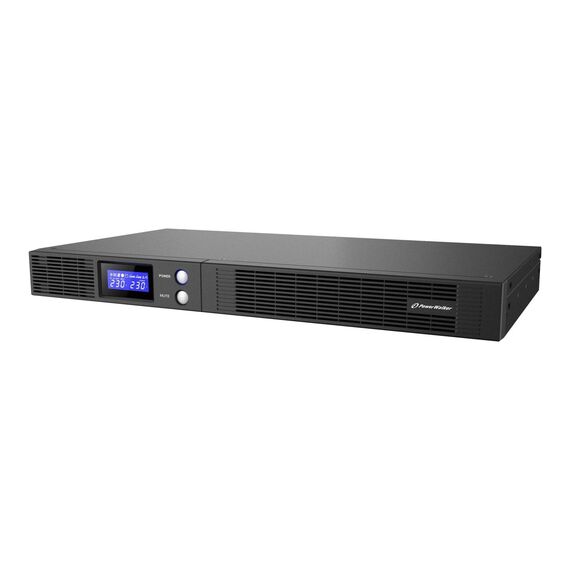

PowerWalker VI 500 R1U - UPS (rack-mountable) - AC 165-290 V - 300 Watt - 500 VA - 7 Ah - RS-232, USB - output connectors: 4 - 1U - 19" | 10121047
PowerWalker VI 500 R1U - UPS (rack-mountable) - AC 165-290 V - 300 Watt - 500 VA - 7 Ah - RS-232, USB - output connectors: 4 - 1U - 19" | 10121047
€264.22 inc. VAT
10121047
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Slim design
- Protect your home theater
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 165-290 V |
| Frequency Provided | ± 0.5Hz |
| Frequency Required | 45 - 55 Hz |
| Input Connectors | 1 x power IEC 60320 C14 |
| Power Output Connectors Details | 4 x power IEC 60320 C13 |
| Output Voltage | AC 230 V ± 10% |
| Power Capacity | 300 Watt / 500 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Power Factor (PF) | 0.6 |
| Battery | |
| Quantity | 2 |
| Voltage Provided | 6 V |
| Capacity | 7 Ah |
| Run Time (Up To) | 1 min at full load ¦ 4.3 min at 75% load ¦ 10.3 min at half load ¦ 18.5 min at 25% load |
| Recharge Time | 8 hours |
| Transfer Time | 4 ms |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Miscellaneous | |
| Cables Included | USB cable - external ¦ Power cable - external |
| Features | Emergency power off, LCD display, overload protection |
| Software / System Requirements | |
| Software Included | PowerMaster |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 43.3 cm |
| Depth | 21.6 cm |
| Height | 4.4 cm |
| Weight | 7.6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 53.7 cm |
| Shipping Depth | 31.7 cm |
| Shipping Height | 15 cm |
| Shipping Weight | 8.7 kg |
