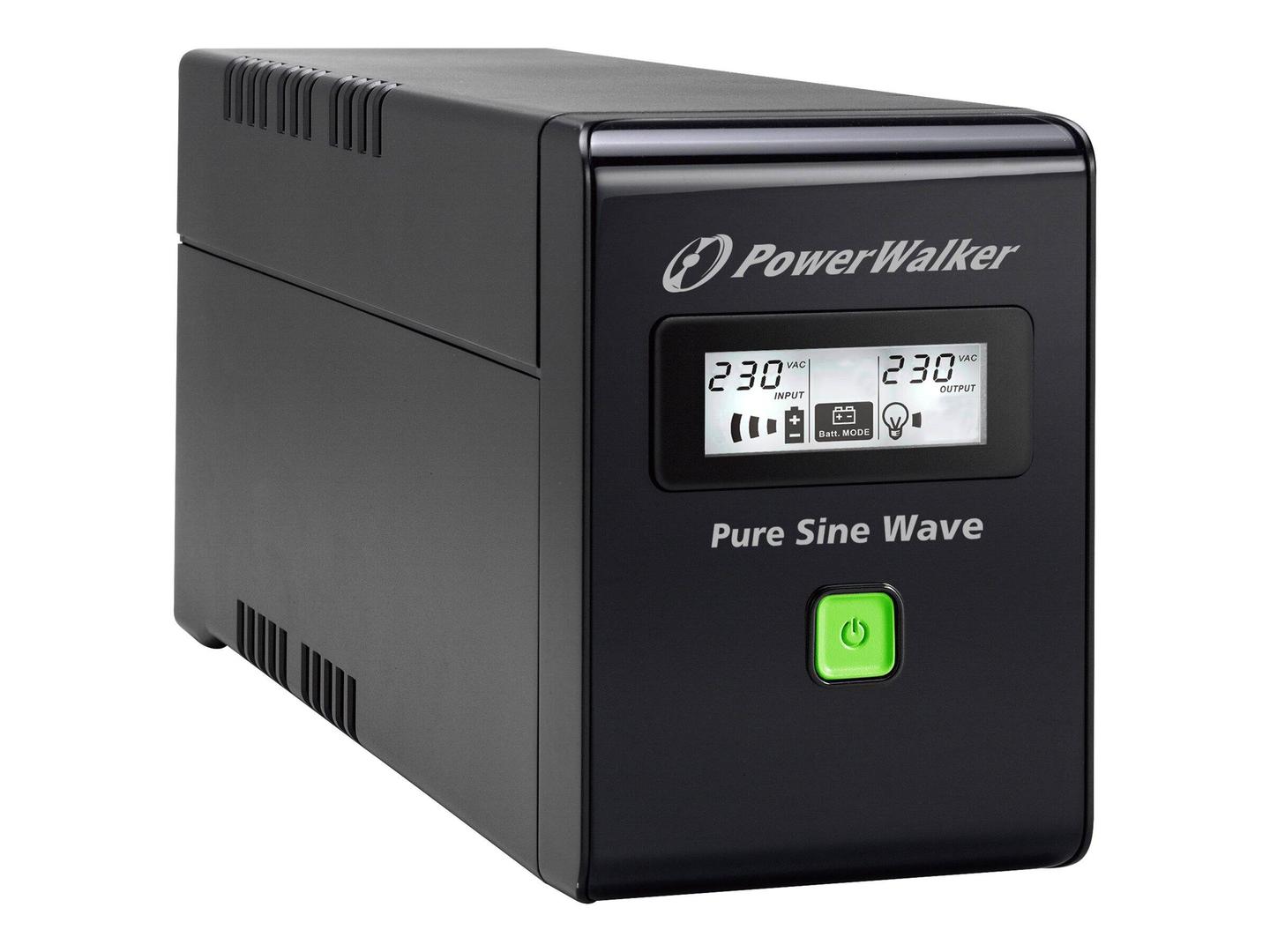

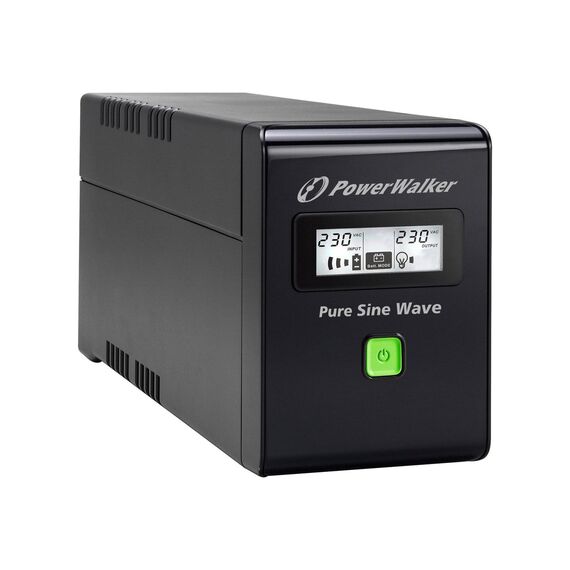

PowerWalker VI 800 SW FR - UPS - AC 162-290 V - 480 Watt - 800 VA - 9 Ah - USB - output connectors: 2 | 10120086
10120086
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Fetures
- Automatic voltage regulator with Pure Sine Wave output
- Pure Sine Wave for wide range of applications and harsh environment
- Surge protection on phone line and modem
- USB communication
Product Specification
| Device Type | UPS - external |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 162-290 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power CEE 7/7 |

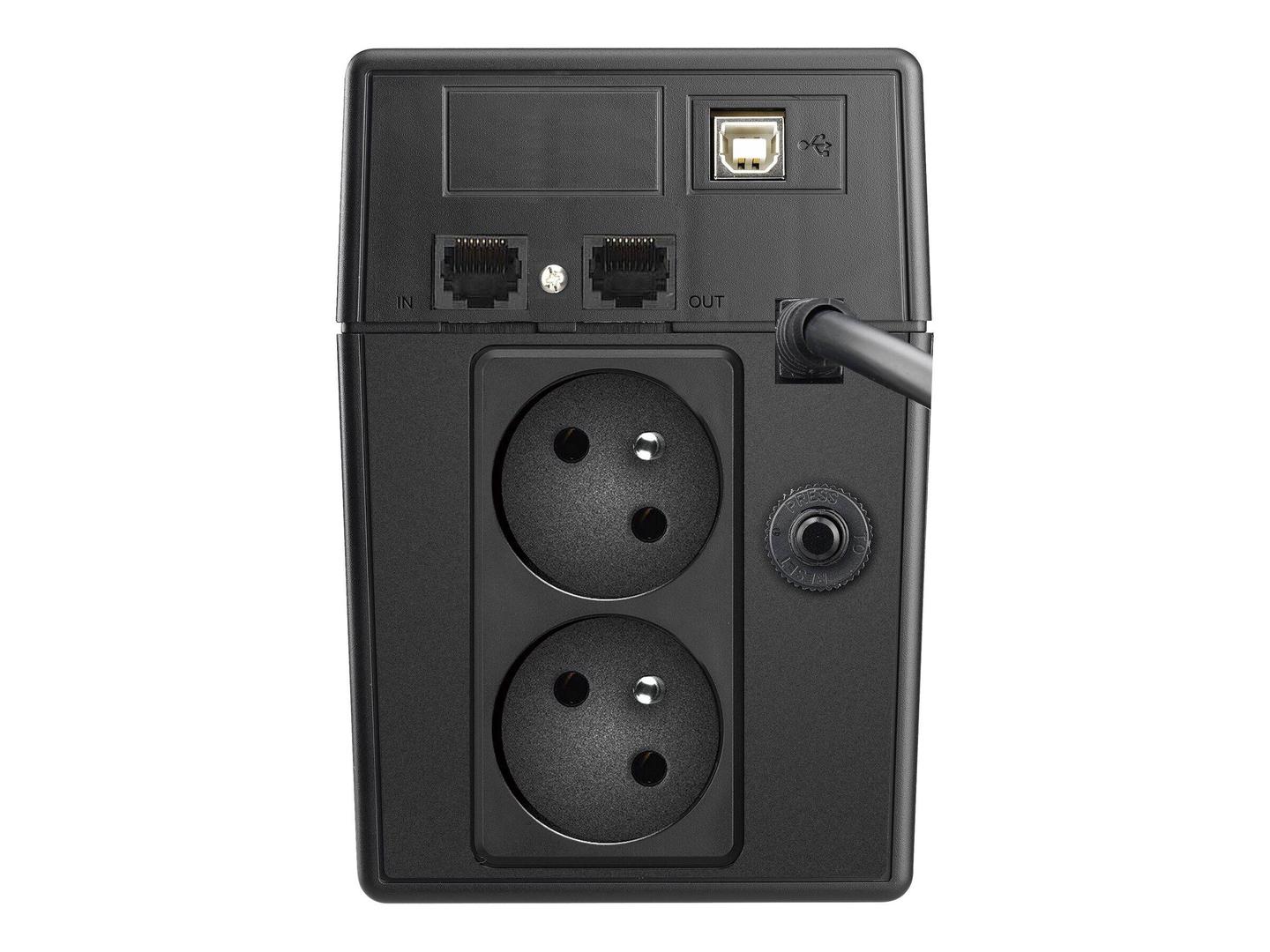

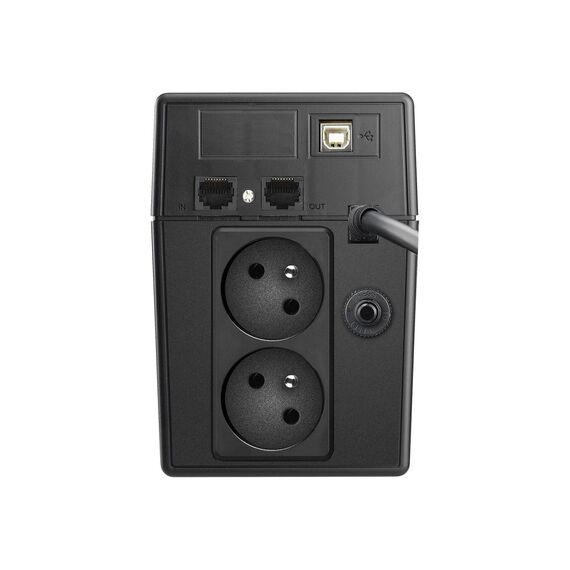

| Power Output Connectors Details | 2 x power Type E |
| Output Voltage | AC 230 V ± 10% - 50/60 Hz |
| Power Capacity | 480 Watt / 800 VA |
| Dataline Surge Protection | Phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Output Waveform | Sinewave |
| Efficiency | 96.2% line mode |
| Battery | |
| Quantity | 1 |
| Voltage Provided | 12 V |
| Capacity | 9 Ah |
| Run Time (Up To) | 5 min at half load |
| Recharge Time | 7 hours |
| Transfer Time | 2 ms |
| Networking | |
| Remote Management Interface | USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (USB) - 4 pin USB Type B |
| Miscellaneous | |
| Cables Included | Power cable ¦ USB cable - external |
| Features | Audible alarm, Automatic Voltage Regulation (AVR), overcharge protection, overload protection, cold-start function, short-circuit protection, LCD Timer, discharge protection |
| Software / System Requirements | |
| Software Included | ViewPower |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 32.8 cm |
| Depth | 10 cm |
| Height | 14.5 cm |
| Weight | 6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 38.5 cm |
| Shipping Depth | 14 cm |
| Shipping Height | 22.8 cm |
| Shipping Weight | 6.2 kg |
