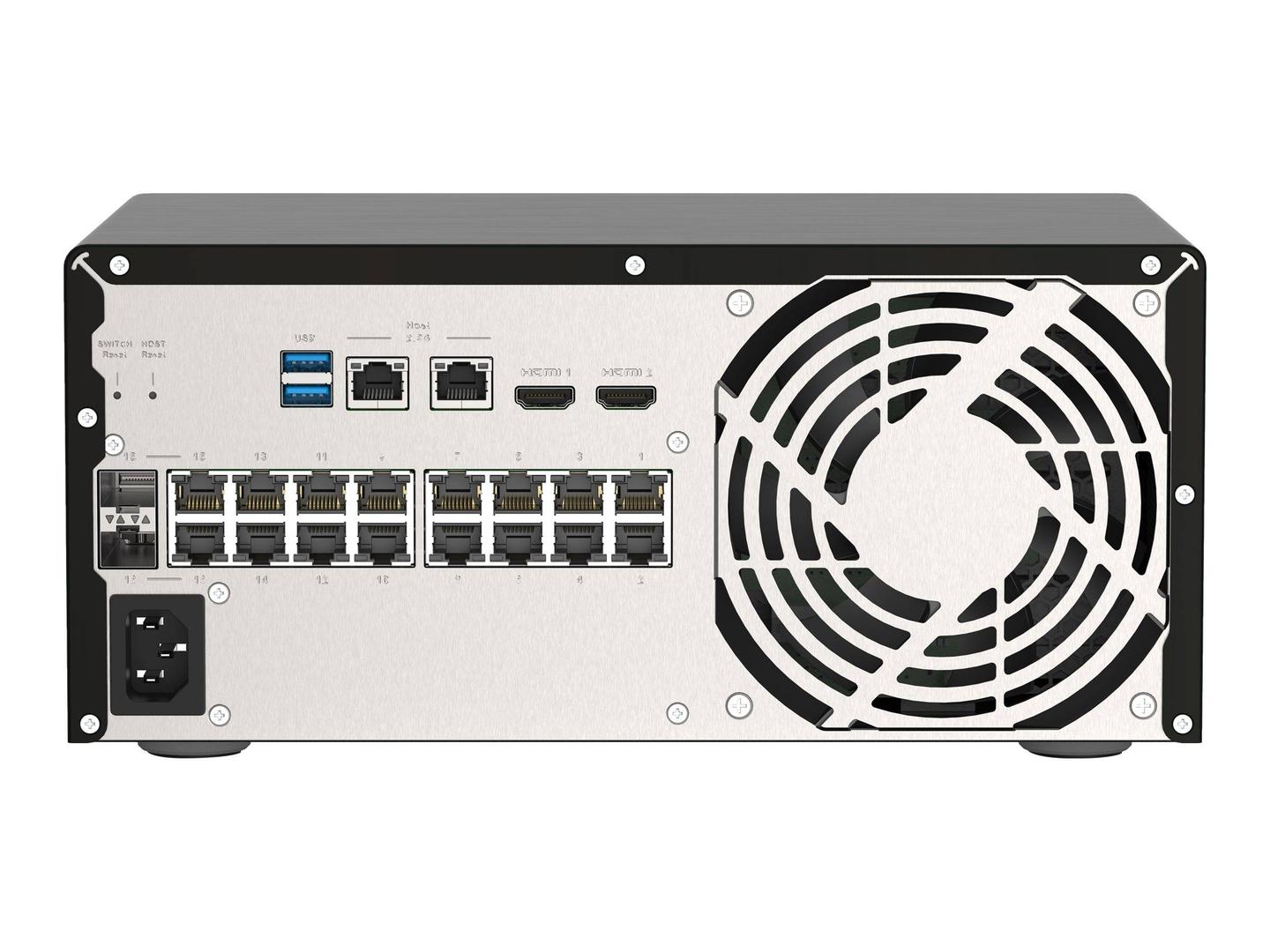

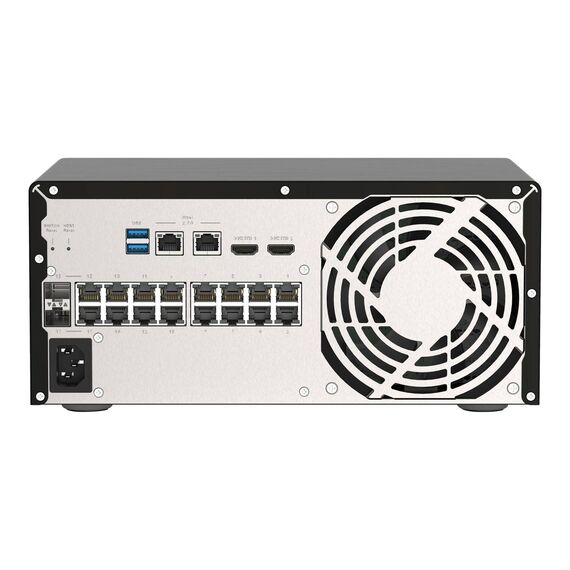

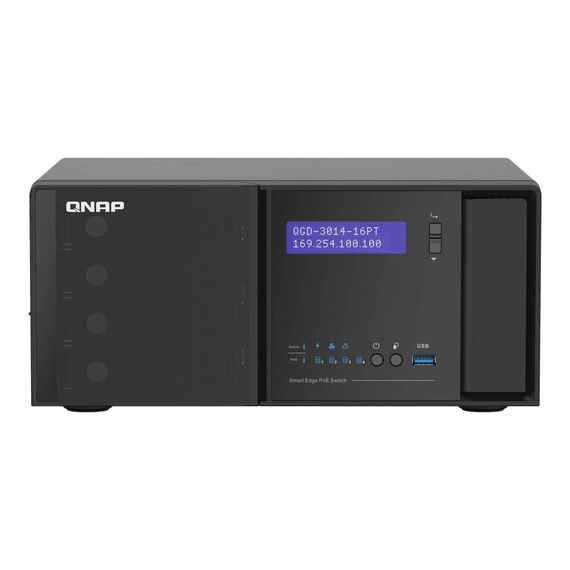

QNAP QGD-3014-16PT / Switch / smart / 16 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP / desktop / PoE+ (140 W) | QGD-3014-16PT-8G

Product Features

• Next-generation intelligent IP surveillance and remote backup solution
  Modern enterprises need to deploy surveillance systems in various sites with multiple IP cameras, switches, NAS/NVR, and then transmit local data to central servers. This can often be a complicated, inefficient, and expensive process. The QGD-3014-16PT integrates PoE power capabilities, surveillance server, and data backup management, thus simplifying the software and hardware requirements and increasing the transmission and backup efficiency of surveillance videos.
• Complete surveillance infrastructure deployment for smart retail
  Combining QVR Pro surveillance software, HBS remote backup, and QuWAN SD-WAN solutions, the QGD-3014-16PT is a total package for surveillance deployment. Businesses can centrally manage video capture, playback, and processing to benefit from a cost-optimized smart surveillance solution.
• Minimalist design with 4K 60 Hz HDMI output for fashionable retail space
  The QGD-3014-16PT has a modern design and quiet cooling system to balance system performance, noise, and noise. This stylish appearance allows the QGD-3014-16PT to easily fit in with modern retail spaces and showrooms. The QGD-3014-16PT combines the functions of a PoE switch, NVR, NAS and router, and provides HDMI 2.0 output for direct playback of live feeds up to 4K (3840x2160) 60 Hz resolution. By consolidating the functions of multiple devices in a near-silent and stylish form factor, the QGD-3014-16PT satisfies the requirements for smart retail surveillance environments.
• Intelligent PoE management for high-power IP cameras
  Compliant with the IEEE 802.3at PoE+ standards, the QGD-3014-16PT has sixteen ports with 30-watt Gigabit PoE capabilities. The QGD-3014-16PT can supply a total power budget of 140 watts to meet the demands of bullet cameras, fisheye cameras, 4K PTZ cameras and Speed Dome cameras compliant with the ONVIF standard; or high-power devices such as 4K PTZ camera, IP phones, LED lights, and digital signage. The QGD-3014-16PT supports intelligent PoE management functions, including scheduling, power supply prioritization, and power enabling/disabling. You can obtain real-time network connection status and power consumption information of PDs and configure PDs simultaneously to promote an energy-saving PoE network.
• A total smart IP surveillance system with QVR Pro
  QVR Pro allows you to arrange a dedicated, independent storage space for surveillance data on the QGD-3014-16PT and leverage the advantages of scalable storage including four drive bays space and flexible storage expansion. With camera management, storage space allocation, playback, failover, and remote live viewing, QVR Pro helps you deploy a comprehensive smart IP surveillance system.
• Deploy a multi-site VPN with SD-WAN solution
  QuWAN SD-WAN provides full mesh IPsec VPN topology between the QGD Switches and local/remote QNAP devices to fulfill enterprise surveillance video, system data transmission, and filing needs. QuWAN optimizes the network service by using bandwidth aggregation, QoS, and failover, providing a stable surveillance working environment. QuWAN also adopts software defined networking to achieve optimum surveillance network connectivity and supports cloud-centric management over multiple NAS for deploying a resilient IP surveillance infrastructure.
• Flexible storage expansion
  Connect a TR RAID, TL USB JBOD, or TL SATA JBOD to expand the storage capacity of the QGD-3014-16PT to accommodate data and business growth.

Special Features

• Supplies a total power budget of 140 watts to meet the demands of high-powered devices (PDs) and supports smart PoE management
• Provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT staff to efficiently control network bandwidth and enhance security via the user-friendly switch management web interface
• Supports up to four SATA SSDs or HDDs
• Supports real-time transcoding and has HDMI 2.0 output for direct 4K 60 Hz surveillance video playback
• Supports local, remote and cloud backup
• Directly host containers and virtual machines to run various applications
• Flexibly install QuWAN SD-WAN, virtual routers, firewalls for various networking management applications

Product Specification
