Product Features
- Instantly build a high-speed network
No complex settings are required to use the QSW-1105-5T - simply connect your devices and it's ready to use. The QSW-1105-5T supports auto-negotiation that optimizes transfer speeds and performance for each connected device, while its built-in management mechanism ensures smooth transmission of network packets during periods of heavy usage. - Loop detection and blocking
The QSW-1105-5T features network loop detection. If a network loop is detected, the QSW-1105-5T automatically locks the looped ports to ensure the network environment quickly resumes normal operation. - Cool and quiet operation
The QSW-1105-5T features a fanless design for near-silent operation. The unique ventilated construction assists in cooling while maintaining high performance.
Special Features
- Instantly build a high-speed network
- Loop detection and blocking
- Cool and quiet operation
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 5 x 10/100/1000/2.5G |
| Performance | Switching capacity: 25 Gbps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, full duplex mode, fanless |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |

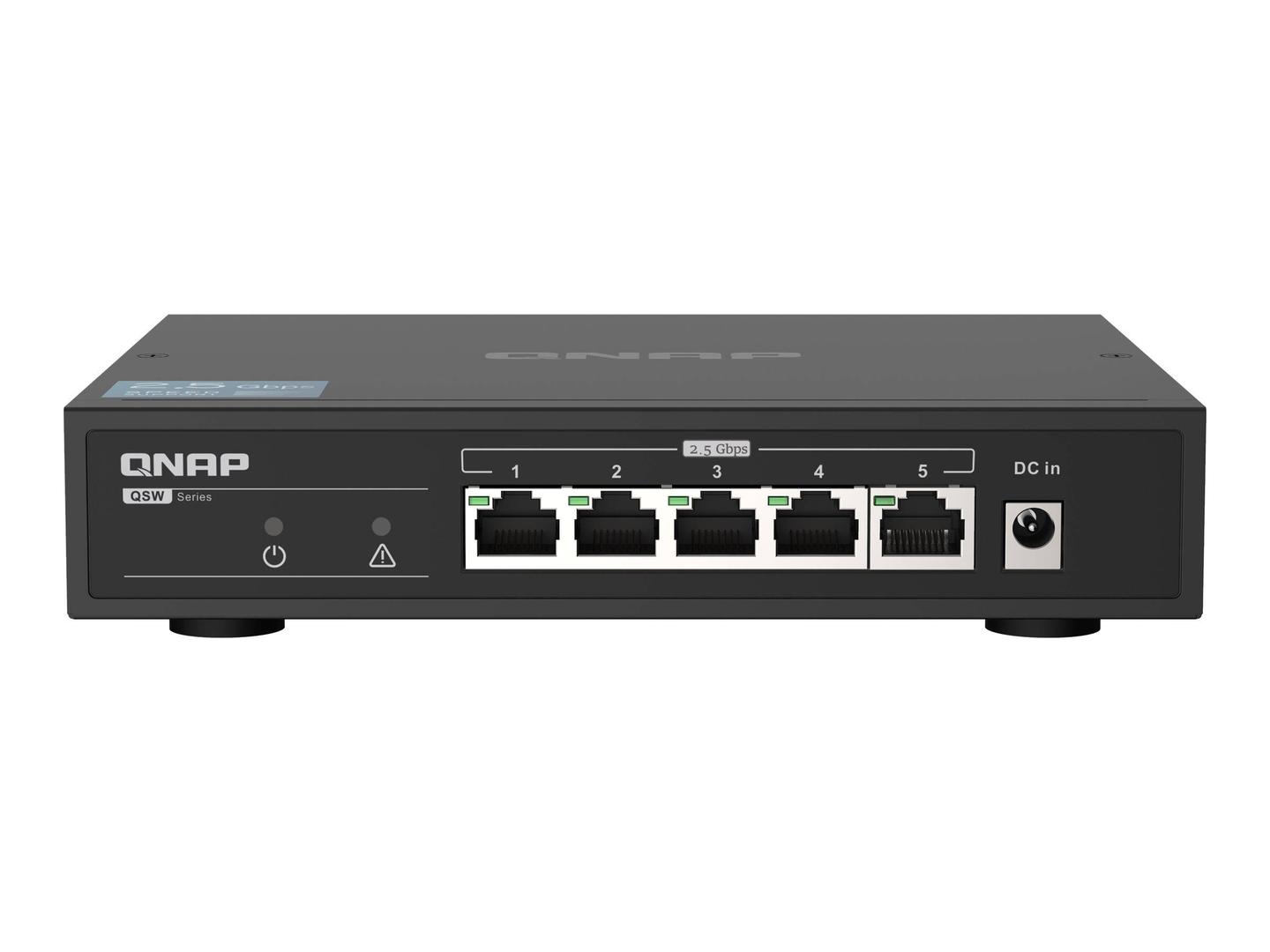

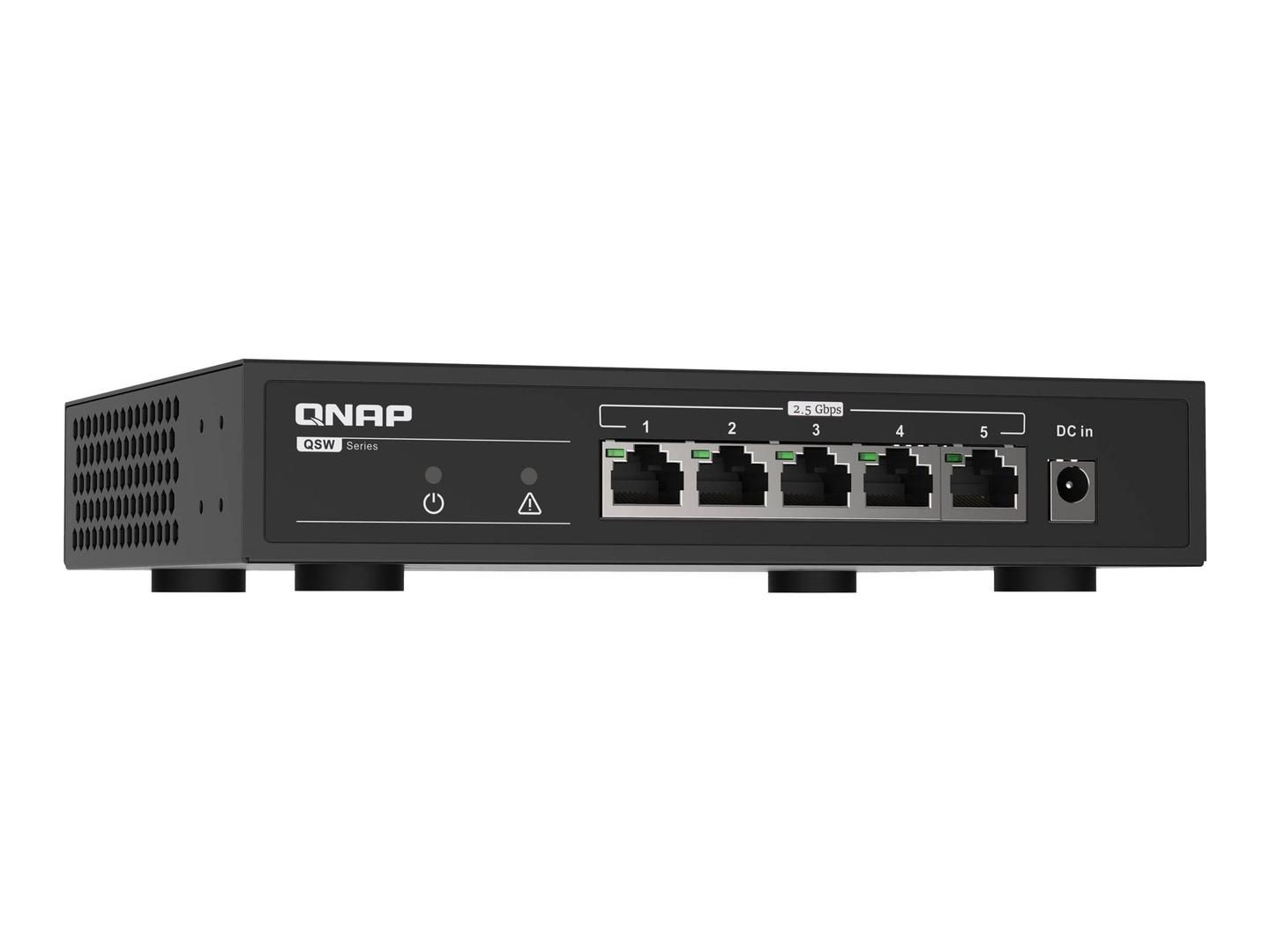

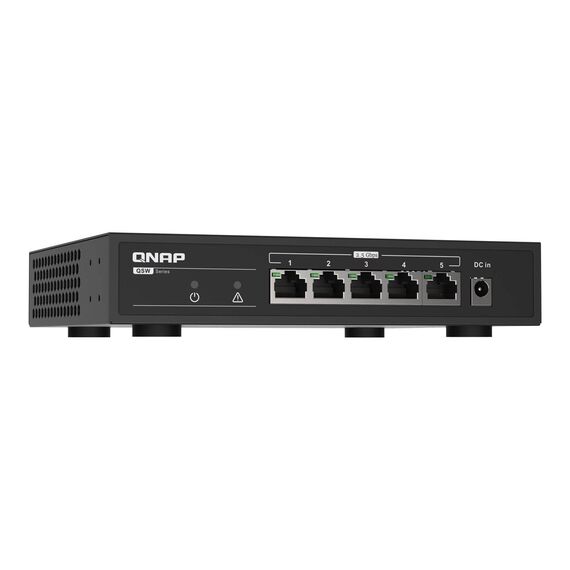

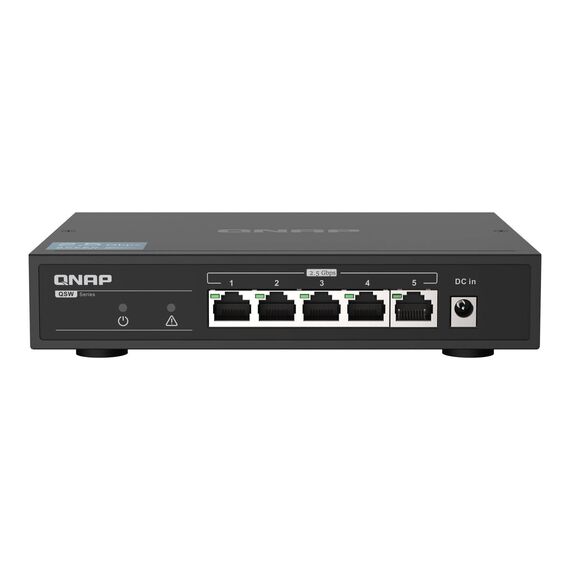

| Interfaces | 5 x 10/100/1000/2.5G RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 12 Watt |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 foot pads, mounting screws, 2 anchors |
| Compliant Standards | VCCI, BSMI, CCC, FCC, KCC, LVD, AS/NZS |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18 cm |
| Depth | 14.5 cm |
| Height | 3.4 cm |
| Weight | 577 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - QNAP - QSW-1105-5T
General
5-Port
More Details
Product Code
CA08047
EAN Code
4713213517581
Manufacturer
QNAP
