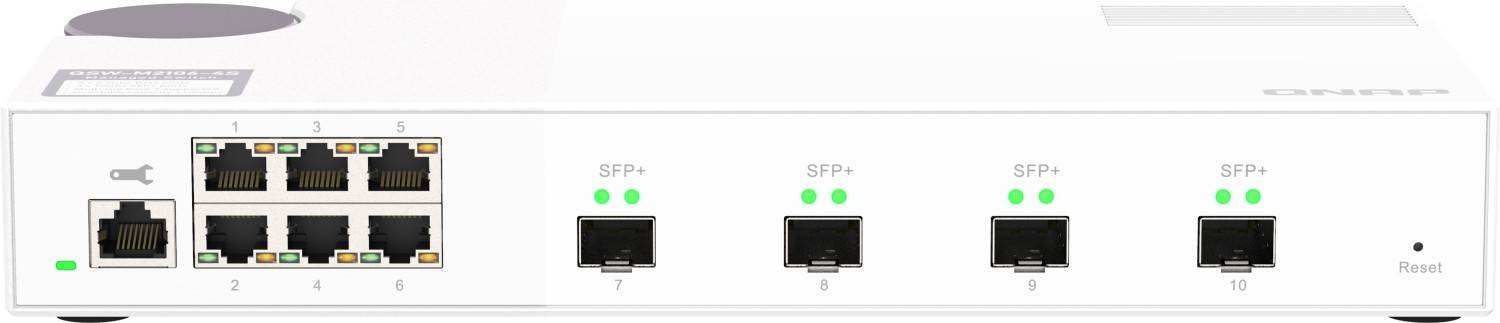

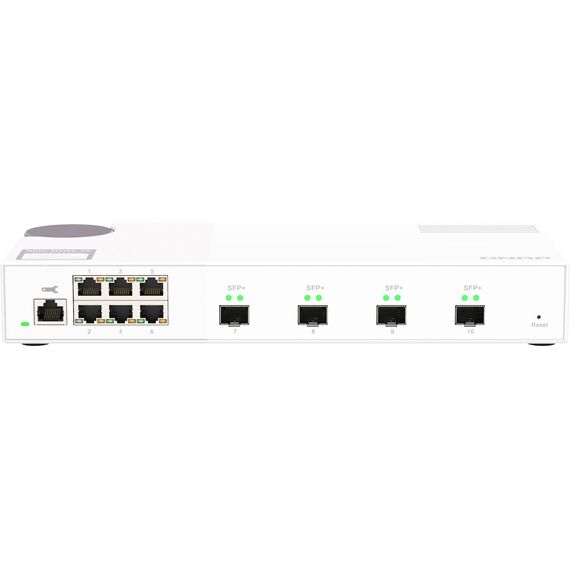

QNAP QSW-M2106-4S / Switch / Managed / 6 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+ / desktop | QSW-M2106-4S
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Switch - 10 ports - Managed |
| Enclosure Type | Desktop |
| Subtype | 10 Gigabit Ethernet |
| Ports | 6 x 2.5GBase-T + 4 x 10Gb Ethernet SFP+ |
| Performance | Switching capacity: 110 Gbps ¦ Non-blocking switching throughput: 55 Gbps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, Layer 2 switching, VLAN support, IGMP snooping, firmware upgradable, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, LACP support, LLDP support, NAS support, 1 fan |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Status Indicators | Power, link/activity/speed |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x 10Gbit LAN SFP+ ¦ 6 x 2.5Gbit LAN RJ-45 ¦ 1 x console RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 16 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, BSMI, FCC, Class B |
| Dimensions & Weight | Dimensions & Weight |
| Width | 29 cm |
| Depth | 12.7 cm |
| Height | 4.25 cm |
| Weight | 1.15 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - QNAP - QSW-M2106-4S
More Details
Product Code
04:417729
EAN Code
4711103082225
Manufacturer
QNAP
