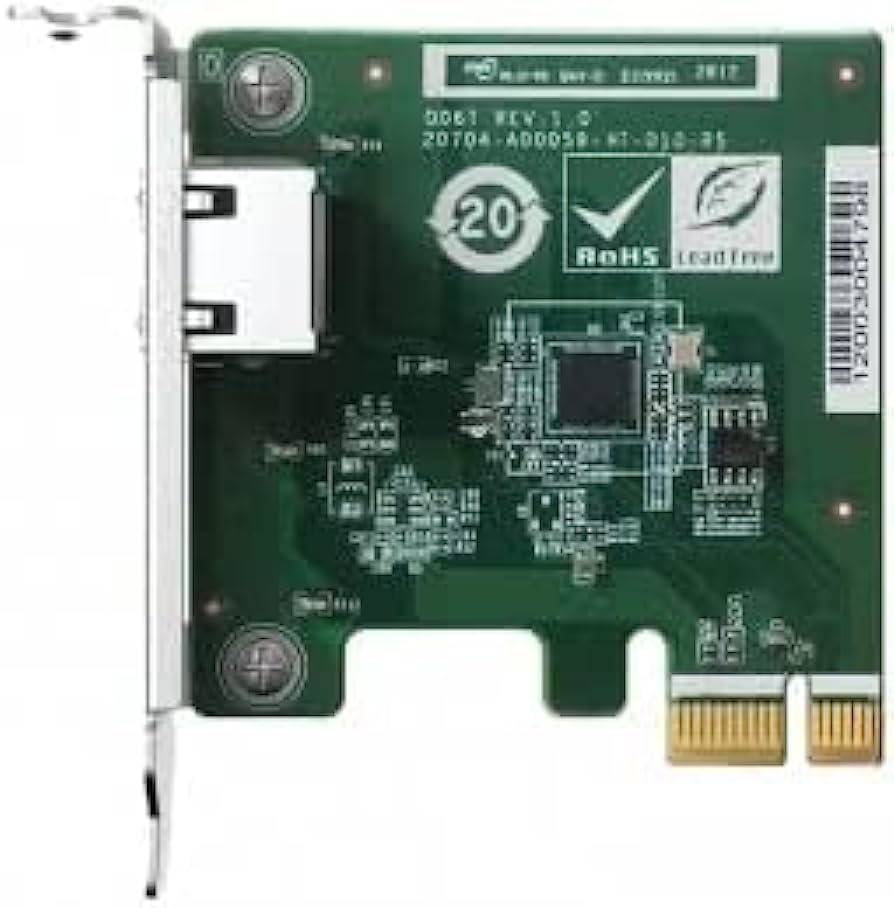

QNAP QXG-2G1T-I225 / Network adapter / PCIe 2.0 / 2.5GBase-T x 1 / for QNAP TDS-16489U R2, TS-1232, 253, 453, 473, 832, 853, 877, 977, TVS-2472, 673, 872, 873 | QXG-2G1T-I225
Please sign in so that we can notify you about a reply
Special Features
- Single-port 2.5 GbE network expansion card
- Controller: Intel Ethernet Controller I225-LM
- Connector: RJ45
- PCIe interface: PCIe Gen2 x1
- Transmission rates: 2.5Gbps/1Gbps/100Mbps/10Mbps
- Supported operating systems: QTS 4.4.2 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (Driver required)
- Supported QNAP NAS: models with PCIe slot(s) (1 free slot required)
- Port and cable: RJ-45; over CAT-5 class cable
- Supported functions: PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| Networking | Networking |
| Ports | 2.5GBase-T x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Features | VLAN support, wake on LAN (WOL), teaming support, PXE support, Receive Side Scaling (RSS), Extended Message-Signaled Interrupts (MSI-X), 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qbv |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Intel I225-LM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket, full-height bracket |
| Software / System Requirements | Software / System Requirements |
| OS Required | Ubuntu, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, QNAP QTS 4.4.2 or later |
| Compatibility Information | Compatibility Information |
| Designed For | QNAP TDS-16489U R2, TS-1232XU, TS-1232XU-RP, TS-1253BU-RP, TS-1263U-RP, TS-1273U-RP, TS-1277, TS-1635, TS-253B, TS-253Be, TS-431X, TS-453Be, TS-453BT3, TS-463U, TS-463U-RP, TS-473, TS-563 Turbo NAS, TS-653B, TS-677, TS-831X, TS-832X, TS-853BU, TS-853DU-RP, TS-863U, TS-863U-RP, TS-873U, TS-877, TS-877XU-RP, TS-977XU-RP, TS-EC1080 Pro Turbo NAS, TS-EC1280U, TS-EC1280U-RP Turbo NAS, TS-EC880 Pro Turbo NAS, TVS-2472XU-RP, TVS-463 Turbo NAS, TVS-471, TVS-473e, TVS-663 Turbo NAS, TVS-671, TVS-673e, TVS-682T, TVS-863 Turbo NAS, TVS-863+ Turbo NAS, TVS-871, TVS-871U-RP, TVS-872XU, TVS-873e, TVS-882BRT3, TVS-882ST2, TVS-EC1080+ Turbo NAS, TVS-EC1280U-SAS-RP, TVS-EC1580MU-SAS-RP, TVS-EC2480U-SAS-RP, TVS-EC880 Turbo NAS |
Features - QNAP - QXG-2G1T-I225
More Details
Product Code
04:353030
EAN Code
4713213517994
Manufacturer
QNAP
