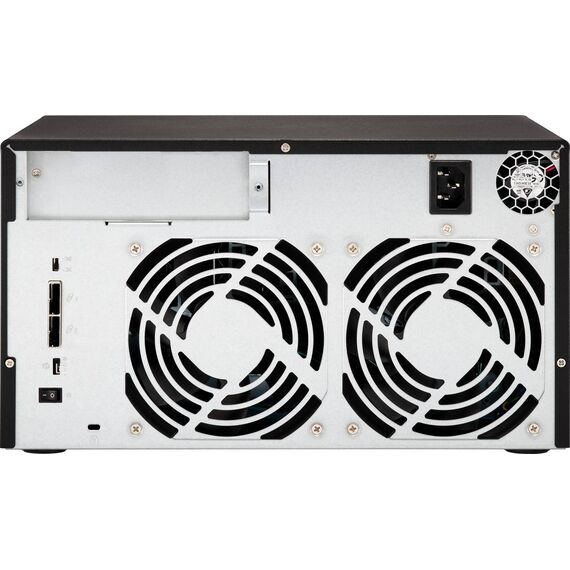

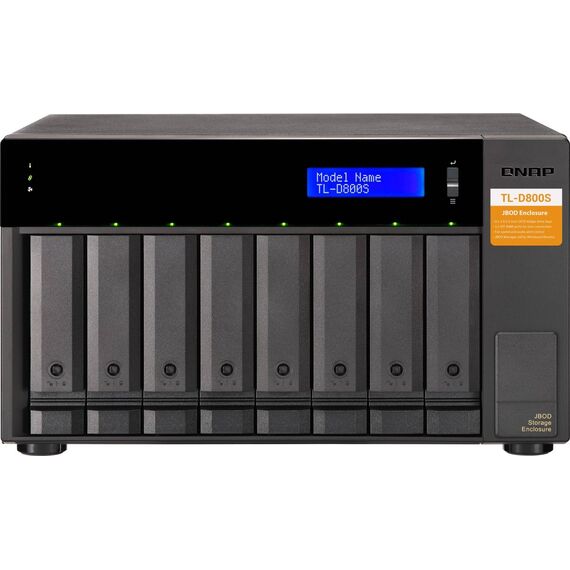

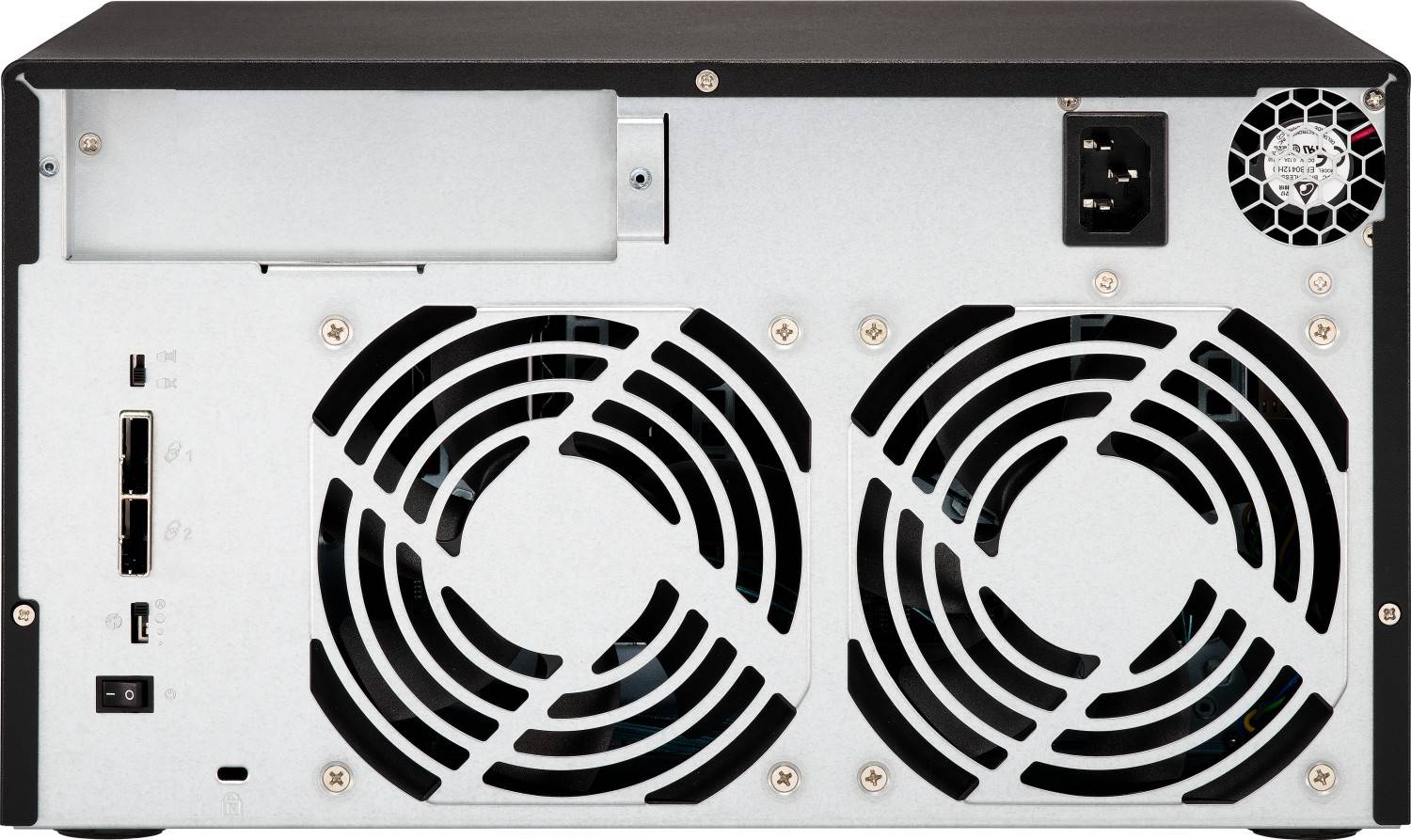

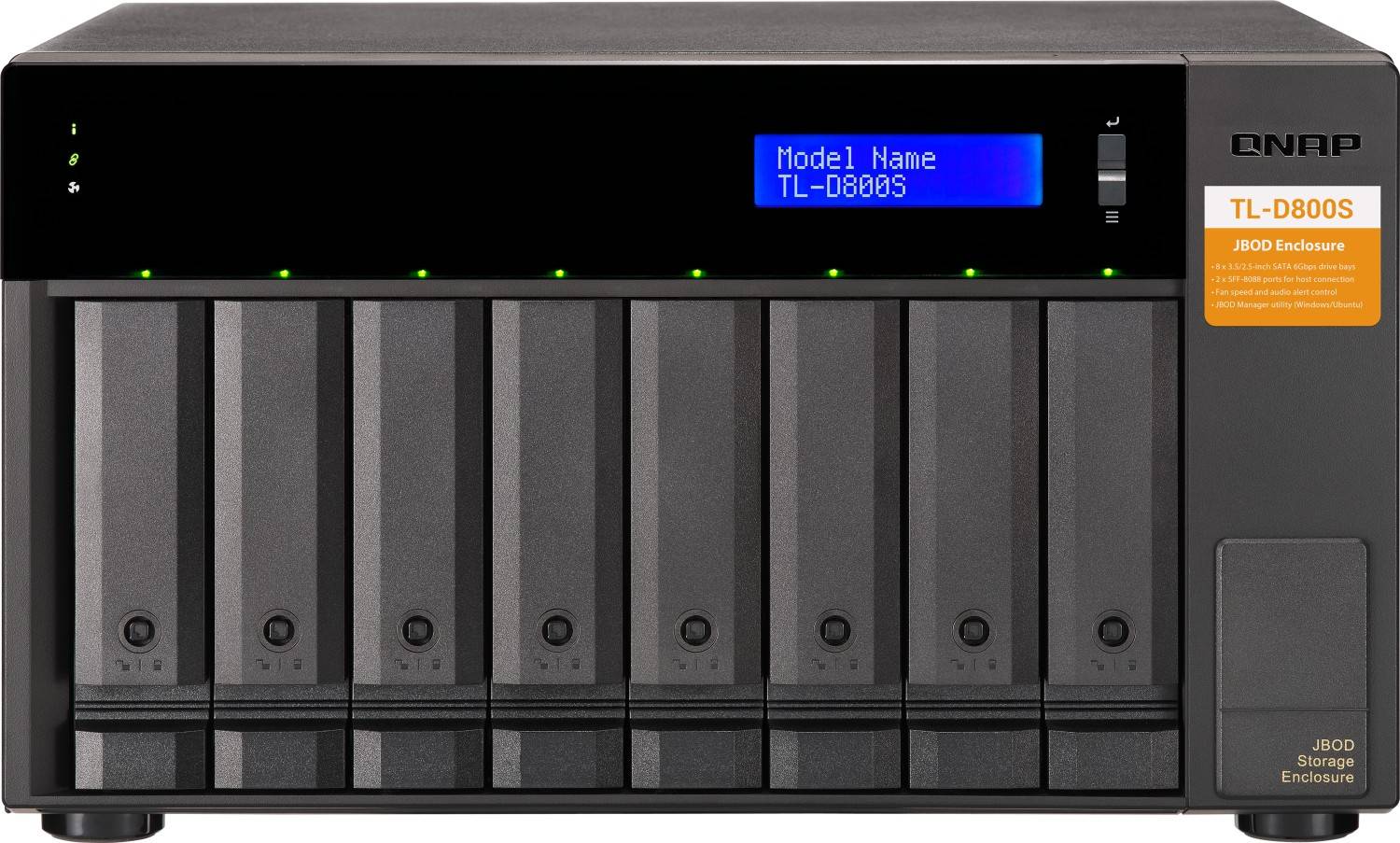

QNAP TL-D800S / Hard drive array / 8 bays (SATA-600) / SATA 6Gb/s (external) | TL-D800S
Please sign in so that we can notify you about a reply
Special Features
- Lockable hard drive trays prevent accidental drive removal
- SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB
- Easy to use: QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information
Product Specification
| Device Type | Hard drive array |
| Chassis | Chassis |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 8 |
| Supported Drives | SATA-600 |
| Storage | Storage |
| HDD Array External Interface | SATA 6Gb/s |
| Storage Controller | Storage Controller |
| Type | SATA |
| Interface Type | SATA 6Gb/s |
| RAID Level | JBOD |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5" shared |
| Interfaces | 2 x SATA 6Gb/s - 26 pin 4x Mini MultiLane SAS (SFF-8088) |
| System Requirements | System Requirements |
| OS Required | Linux, Microsoft Windows, QNAP QTS, QNAP QTS hero |
| Miscellaneous | Miscellaneous |
| Features | Security lock slot (cable lock sold separately), audible alarm, built-in 2 cooling fans, event log |
| Cables Included | 2 x SFF-8088 to SFF-8088 SAS cable |
| Included Accessories | Key, 24 x flat head screws (for 2.5" HDD), 24 x flat head screws (for 3.5" HDD), QNAP QXP SATA Expansion Card, power cable |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V |
| Power Provided | 250 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 32.93 cm |
| Depth | 27.96 cm |
| Height | 18.82 cm |
| Weight | 6.17 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Sound Emission | 21.3 dBA |
