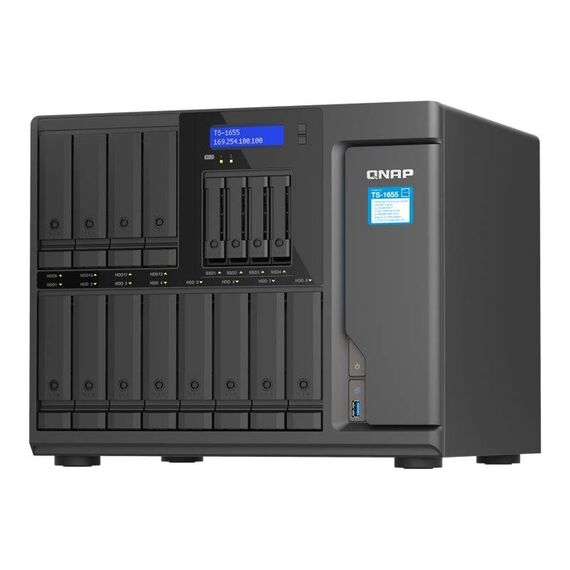

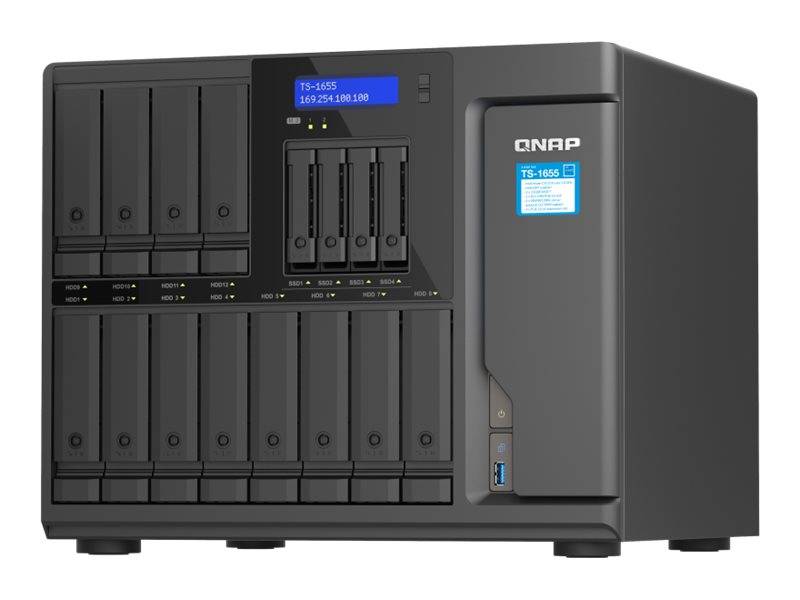

QNAP TS-1655 / NAS server / 16 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / RAM 8 GB / 2.5 Gigabit Ethernet / iSCSI support | TS-1655-8G
Please sign in so that we can notify you about a reply
Product Features
- Dual 2.5GbE connectivity
High-speed 2.5GbE accelerates intensive file access, large backup/restoration tasks, virtualization, and multimedia transfer. - SSD caching and AI acceleration
Two M.2 NVMe PCIe Gen 3 slots allow implementing SSD cache acceleration, SSD storage pool, or a Coral M.2 accelerator for faster image recognition. - Flexible PCIe expansion
Three PCIe slots allow for installing 5/10/25GbE adapters, Fiber Channel cards, or QM2 cards to increase application performance. - Virtual machines and containers
Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV. - Hybrid cloud
Realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency cloud data access. - Storage scalability
Satisfy ever-growing storage needs by connecting flexible and economical QNAP expansion enclosures.
Special Features
- Dual 2.5GbE connectivity
- SSD caching and AI acceleration
- Flexible PCIe expansion
- Virtual machines and containers
- Hybrid cloud
- Storage scalability
Product Specification
| Device Type | NAS server |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 16 (max) |
| Width | 36.989 cm |
| Depth | 31.98 cm |
| Height | 30.384 cm |
| Weight | ) |
| Built-in Devices | Status LCD |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x Intel Atom C5125 |
| Number of Cores | 8-core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.8 GHz |
| RAM | 8 GB (installed) / 128 GB (supported) - DDR4 |
| Features | Unbuffered, ECC |
| Flash Memory Installed | 5 GB |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Networking | Networking |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
| Network / Transport Protocol | PPTP, L2TP, IPSec, FTP, DDNS, SFTP, IPv4, IPv6, WireGuard, TFTP, QBelt, QuFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTPS, SSH, RADIUS |
| Network Services Compatibility | Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Concurrent connections (CIFS): 700 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum volume size: 250 TB ¦ Maximum LUN size: 250 TB |
| Features | Firewall protection, VLAN support, wake on LAN (WOL), RADIUS support, Jumbo Frames support, DHCP server, Domain Controller, Single Root I/O Virtualization (SR-IOV), file station, port trunking, EXT4 file system, SSD trim, FXP support, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, built-in buzzer, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, SSD Cache RAID |
| Encryption Algorithm | TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, TLS 1.3 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" ¦ 4 (total) / 4 (free) x hot-swap - 2.5" |
| Expansion Slots | 2 (total) / 2 (free) x M.2 2280 ¦ 4 (total) / 3 (free) x DIMM 288-pin ¦ 3 (total) / 3 (free) x PCI Express 3.0 x4 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 1 - Type A |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable |
| Features | Security lock slot (cable lock sold separately), Secure Erase, dual boot, built-in cooling fans |
| Security Slot Type | Kensington security slot |
| Included Accessories | 36 x flat head screws (for 2.5" HDD), 36 x flat head screws (for 3.5" HDD), power cable, 2 x drive tray keys |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 104.65 Watt (with drives fully populated) |
| Power Consumption Stand by | 94.957 Watt |
| Power Provided | 550 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | QNAP QTS 5.0.1 |
| Software Included | McAfee, IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - accessories - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TS-1655-8G
More Details
Product Code
CG14124
EAN Code
4711103083178
Manufacturer
QNAP
