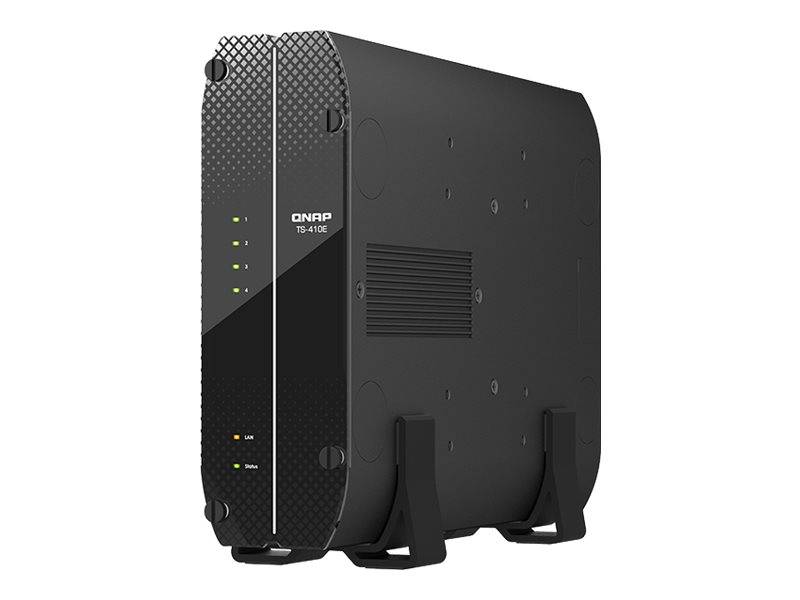

QNAP TS-410E / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, 50, JBOD, 60 / RAM 8 GB / Gigabit Ethernet / 2.5 Gigabit Ethernet / iSCSI support | TS-410E-8G
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | NAS server |
| Host Connectivity | Gigabit Ethernet / 2.5 Gigabit Ethernet |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 18 cm |
| Depth | 25.4 cm |
| Height | 6 cm |
| Weight | 2.64 kg () |
| Built-in Devices | Led panel |
| Localisation | Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Romanian, Japanese, Korean |
| Processor / Memory | Processor / Memory |
| Processors Installed | 1 x Intel Celeron J6412 2 GHz |
| Number of Cores | Quad-Core |
| Max Turbo Speed | 2.6 GHz |
| RAM | 8 GB (installed) / 8 GB (supported) |
| Flash Memory Installed | 4 GB |
| Storage Controller | Storage Controller |
| Type | RAID |
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Networking | Networking |
| Data Link Protocol | 100Mb LAN, GigE, 2.5 GigE |
| Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, FTP, DDNS, SFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
| Network Services Compatibility | DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance | Maximum volume size: 250 TB ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum number of volume: 128 ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ System log & notification centre: 3000 events per second ¦ Virtual hosts: 32 ¦ Concurrent connections (CIFS): 1500 |
| Features | Firewall protection, VLAN support, wake on LAN (WOL), antivirus analysis, Jumbo Frames support, DHCP server, Domain Controller, built-in hardware transcoding, port trunking, EXT4 file system, SSD trim, Windows ODX, hybrid backup sync, Qfiling, Qsirch, SQL Server, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, iSCSI service, SSD Cache RAID, Secure Erase, QVPN Service, External RAID Device Management, user quota |
| Encryption Algorithm | SSL, TLS, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3 |
| Compliant Standards | UPnP |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" |
| Interfaces | HDMI output ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 4 x USB 3.2 Gen 2 |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable ¦ 1 x power cable |
| Features | Security lock slot (cable lock sold separately), on/off switch, reset button, alarm buzzer |
| Security Slot Type | Kensington security slot |
| Included Accessories | 16 x flat head screws (for 2.5" HDD) |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 90 Watt |
| Software / System Requirements | Software / System Requirements |
| Storage Operating System | QNAP QTS 5.0.1 |
| Software Included | IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Apple OS X 10.10 Yosemite or later, Microsoft Windows Server 2016, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 3.83 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Features - QNAP - TS-410E-8G
More Details
Product Code
04:411489
EAN Code
4711103082010
Manufacturer
QNAP
