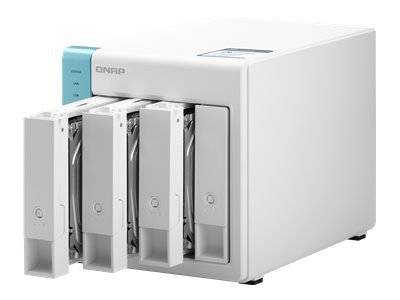

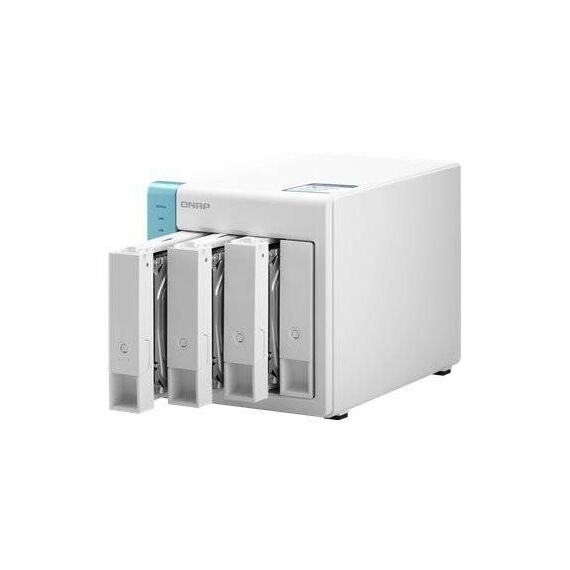

QNAP TS-431P3-4G / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare / RAM 2 GB / 2.5 Gigabit Ethernet / iSCSI | TS-431P3-4G
QNAP TS-431P3-4G / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare / RAM 2 GB / 2.5 Gigabit Ethernet / iSCSI | TS-431P3-4G
Description
The TS-431P3 enables smoother multimedia playback and everyday usage. The TS-431P3 ensures data security by supporting AES 256-bit encryption and various local/remote/cloud backup options - including snapshot protection that allows for files and data to be reverted to previously recorded states if they are accidentally deleted, modified or affected by malware.
QNAP TS-431P3-4G / NAS server | TS-431P3-4G
Special Features
- Build a faster home network with QNAP
- Multi-point file backup, access, and sync
- Protect important data with snapshots
- Comprehensive surveillance solution for 24/7 security
- Flexible and economical storage expansion
Product features
- Build a faster home network with QNAP
The TS-431P3 provides a smoother NAS experience and multimedia playback. The TS-431P3 features three USB 3.2 Gen 1 port that delivers outstanding multitasking performance. - Multi-point file backup, access, and sync
The TS-431P3 supports file sharing protocols. Additionally, QuDedup technology greatly improves the efficiency of multi-version backup to destination storage, while optimizing storage utilization. - Protect important data with snapshots
Snapshots help protect data by fully recording the NAS system state and metadata. With snapshots, users can quickly restore files to previously recorded states if files are accidentally deleted or modified, or if the system is compromised by malware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but also reduces the time required to back up and restore data. - Comprehensive surveillance solution for 24/7 security
With an expandable IP camera channel licensing system, users can build a comprehensive surveillance system for real-time monitoring, video and audio recording and playback. Budget-conscious users can also save money on cameras by using USB webcams to record footage. - Flexible and economical storage expansion
QNAP provides easy storage capacity expansion solutions. Here are several ways to expand the TS-431P3 storage to accommodate data growth.
Product Specification
Device Type | NAS server |
Host Connectivity | 2.5 Gigabit Ethernet |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 16 cm |
Depth | 21.9 cm |
Height | 16.9 cm |
Weight | 2.01 kg |
Built-in Devices | Led panel |
Processors Installed | 1 x Annapurna Labs Alpine AL-314 1.7 GHz |
Number of Cores | Quad-Core |
Max Supported Qty | 1 |
RAM | 2 GB (installed) / 8 GB (supported) - DDR3 |
Flash Memory Installed | 512 MB |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare |
Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, FTP, DDNS, SFTP |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH |
Network Services Compatibility | DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
Features | NAT support, VPN support, load balancing, LDAP support, wake on LAN (WOL), E-mail alert, IPv6 support, Spanning Tree Protocol (STP) support, Jumbo Frames support, DHCP server, SMS alert, BitTorrent Client, IPv4 support, DNS server, DHCP client, Link Aggregation, push notification, DLNA support, port trunking, IFTTT agent, FXP support, RTRR server, RTRR client, Rsync compatible, OpenVPN client, Qmiix agent |
Encryption Algorithm | SSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2 |
Compliant Standards | UPnP |
Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |

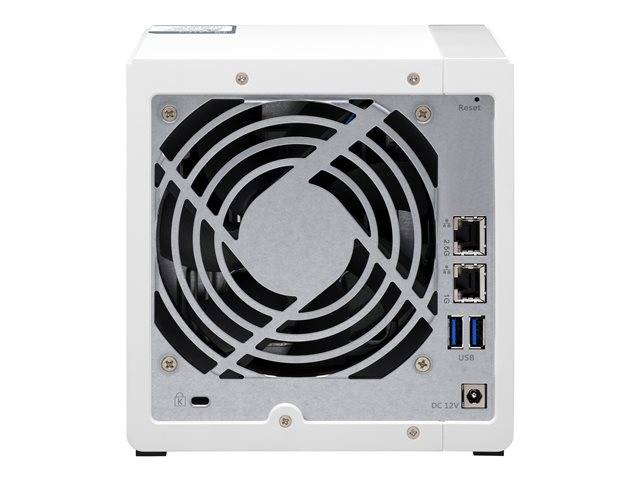

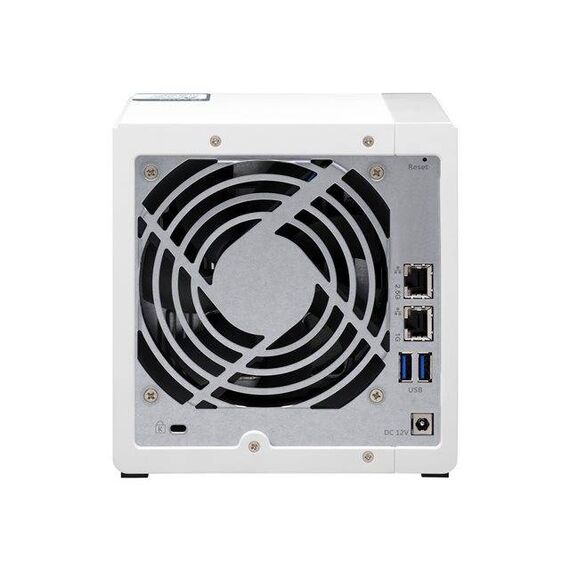

Interfaces | 1 x Ethernet 1000Base-T - RJ-45 ¦ 1 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 1 |
Cables Included | 1 x network cable |
Features | Security lock slot (cable lock sold separately), built-in cooling fan, reset button |
Security Slot Type | Kensington security slot |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
Power Provided | 90 Watt |
Storage Operating System | QNAP QTS 4.4.2 |
OS Required | UNIX, Microsoft Windows Server 2008 R2, IBM AIX 7, Oracle Solaris 10, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later |
Shipping Weight | 3.5 kg |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Sound Emission | 19.5 dBA |
