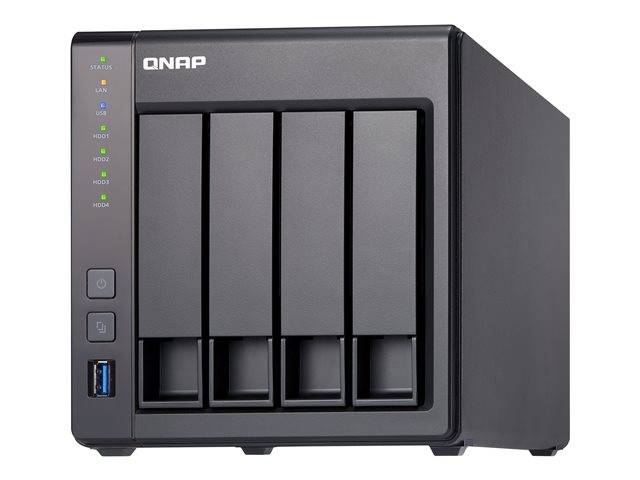

QNAP TS-431X2 / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare / RAM 8 GB / Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI | TS-431X2-8G
QNAP TS-431X2 / NAS server / 4 bays / SATA 6Gb/s / RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare / RAM 8 GB / Gigabit Ethernet / 10 Gigabit Ethernet / iSCSI | TS-431X2-8G
Description
The TS-431X supports several hard drives and has a built-in 10GbE SFP+ port for rigorous data processing, providing a cost-effective storage solution for demanding everyday business tasks. The TS-431X is an ideal entry-level NAS for businesses looking for backup, restoration, private cloud, storage for virtualization, and to future-proof their IT infrastructure for 10GbE networks.
QNAP TS-431X2 / NAS server | TS-431X2-8G
Special Features
- 10GbE-ready with built-in 10GbE SFP+ port
- SSD cache acceleration
Product features
- 10GbE-ready with built-in 10GbE SFP+ port
The TS-431X not only provides two inbuilt Gigabit Ethernet ports but also one 10GbE SFP+ port to fully support 10GbE high-speed networks, capable of delivering lightning-fast throughput for businesses that demand higher bandwidth for virtualization and fast backup & restoration for an ever-growing amount of data. - SSD cache acceleration
The TS-431X supports SSD caching for all drives to greatly boost the IOPS performance of storage volumes and increase operational efficiency. It is perfect for improving the overall workflow of IOPS-demanding applications and allows the best of both cost and performance by combining SSDs with HDDs.
Product Specification
Device Type | NAS server |
Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
Total Storage Capacity | 0 GB |
Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Width | 16 cm |
Depth | 21.9 cm |
Height | 16.9 cm |
Weight | 3 kg |
Built-in Devices | Led panel |
Processors Installed | 1 x Annapurna Labs Alpine AL-314 1.7 GHz |
Number of Cores | Quad-Core |
Max Supported Qty | 1 |
RAM | 8 GB (installed) / 8 GB (supported) - DDR3 |
Flash Memory Installed | 512 MB |
Type | RAID |
Interface Type | SATA 6Gb/s |
RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare |
Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 10 GigE |
Network / Transport Protocol | TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS |
Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH |
Network Services Compatibility | Microsoft Active Directory (AD), Apple Bonjour Protocol, File Level Security (ACLs), DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP |
Features | VPN support, LDAP support, wake on LAN (WOL), Syslog support, print server, IPv6 support, proxy server, backup server, Trivial File Transfer Protocol (TFTP) support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, UPnP Media Server, IPv4 support, surveillance station, DLNA Media Server, Apple Time Machine compatible, DHCP client, cloud backup, VPN Server, Apple AirPlay |
Encryption Algorithm | SSL, TLS, 256-bit AES |
Compliant Standards | DLNA CERTIFIED, UPnP |
IP Cameras Supported | 30 |
Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
Interfaces | 2 x Ethernet 1000Base-T - RJ-45 ¦ 3 x USB 3.0 - Type A ¦ 1 x Ethernet 10Gb - SFP+ |
Features | Security lock slot (cable lock sold separately), audible alarm, built-in cooling fan, hardware encryption |
Security Slot Type | Kensington security slot |
Compliant Standards | AES-256 |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
Power Provided | 90 Watt |
Storage Operating System | QNAP QTS 4.3 |
OS Required | UNIX, Linux, Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows 7 (32/64 bits), Microsoft Windows Server 2012, Windows 8 (32/64 bits), Microsoft Windows Server 2012 R2, Windows 10 (32/64 bits) |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Sound Emission | 19.5 dBA |
